Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Lower the engine by 90 to 100 mm.
> 100109 LOWERING THE ENGINE
- Remove heat shield -3-
on the rear bracket.
Unscrew screws -1-
and nut -2-
and remove heat shield -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

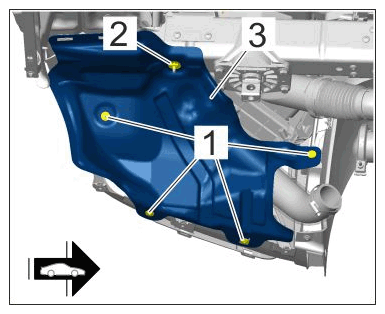

Heat shield on rear bracket (left side)
