Removing Transmission From Engine

Information

• When securing the gear support, check that it has sufficient clearance from the oil cooler.

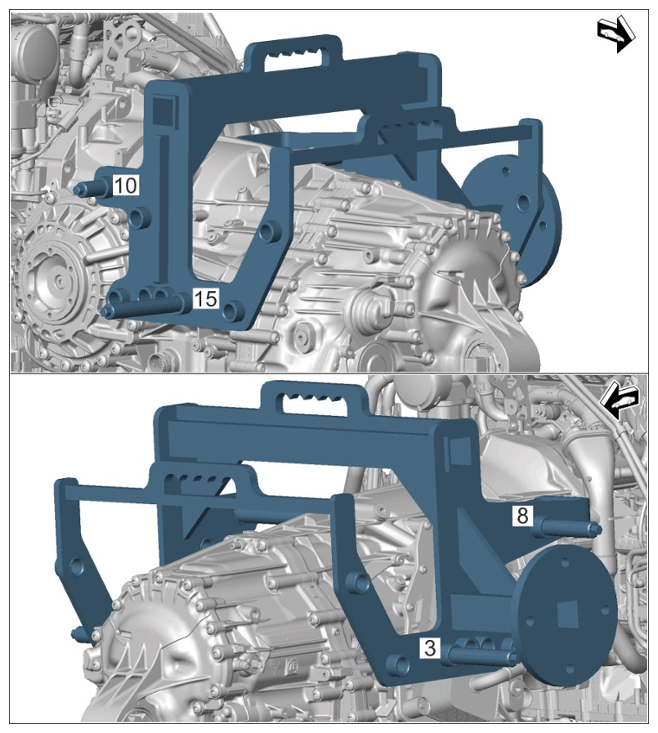

1. > 9932 - Gear support  must be positioned as shown on the transmission.

   The numerical markings are shown on the gear support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Gear support 9932

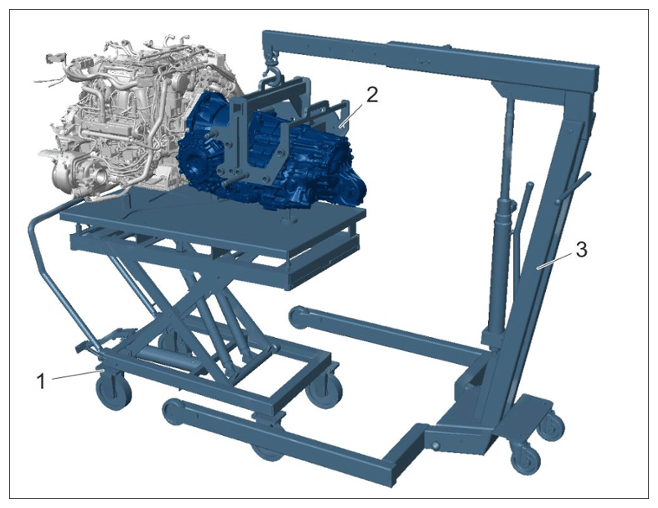

   View of transmission support with a unit elevating platform and workshop crane:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Workshop crane

   1	> VAS 6832 - Master Gear unit elevating platform
   2	> 9932 - Gear support
   3	> VAS 6100 - Workshop Crane

2. Loosen flange bolts in the sequence -1 to 6-  .

   373427 REMOVING AND MOUNTING PORSCHE DOPPELKUPPLUNG (PDK)

   Secure in reverse order!

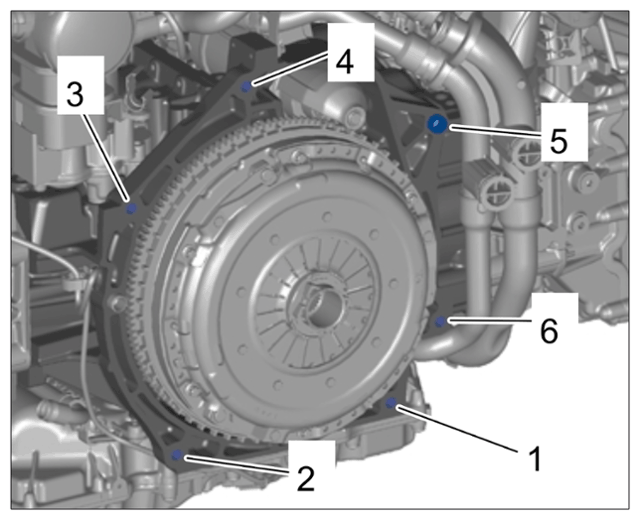

   Fig 1: Engine Flange Bolts Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Flange bolts for engine
