WM, 100119 Removing And Installing Engine: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
electronic torque wrench from 2-100 Nm (1.5-74 ftlb.)	Special tool	> 9768	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

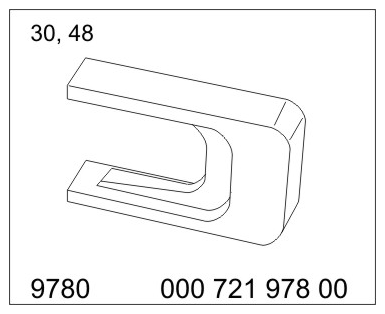

loosening tool	Special tool	> 9780	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

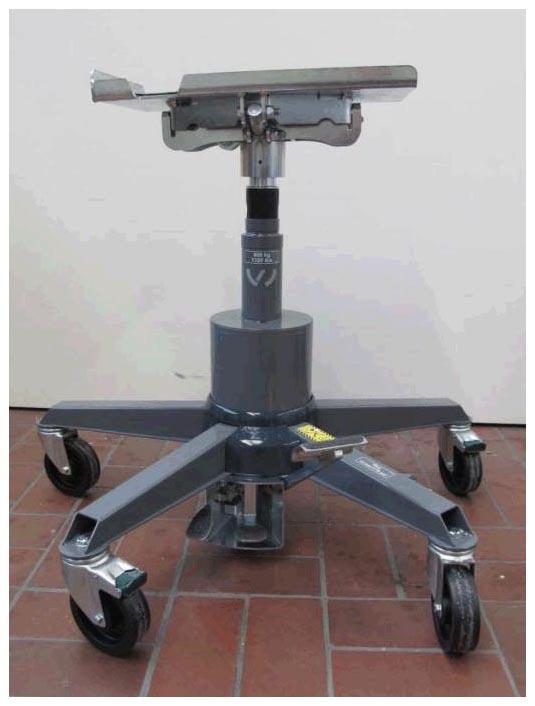

engine and gearbox jack	General workshop equipment	> VAS 6931	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

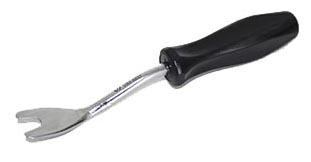

disassembly tool	Vehicle-specific workshop equipment	> VAS 6933	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

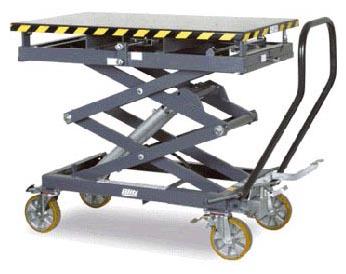

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

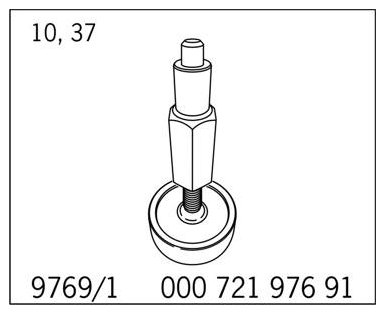

Support	Special tool	> 9769/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

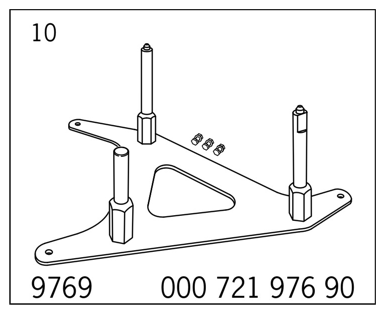

Retainer plate	Special tool	> 9769	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
strapping belts	Special tool	> 9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

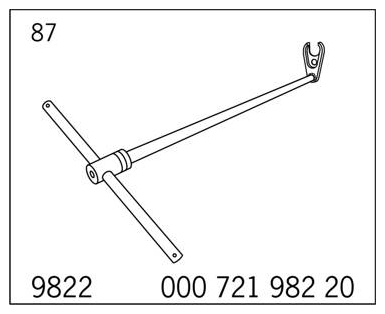

assembly tool	Special tool	> 9822	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
