Subsequent Work

Information

• Replace O-rings on the cooling system.
• Clean plug connection and coolant hoses before assembly.
• Remove stoppers before fitting the coolant lines and hoses.

1. Fit rear wheels.

   440519 REMOVING AND INSTALLING WHEEL - on "Installing"

2. Secure drive shafts -1-  on the transmission flange using new screws -2-  . Counter at the rear wheels.

   422119 REMOVING AND INSTALLING DRIVE SHAFT - on "Installing"

   > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening torque angle +110°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for drive shaft on transmission flange

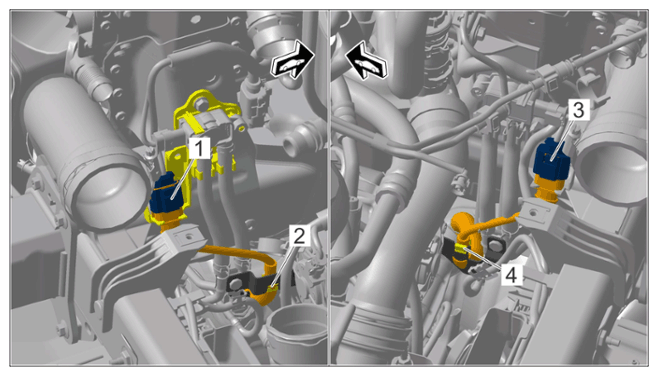

3. Connect cable plugs -1 and 3-  for oxygen sensors downstream of catalytic converter and route and secure cables.

   Clip in oxygen sensor cables at retaining clips -2 and 4-  .

   Connect cable plugs -1 and 3-  for oxygen sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plug and cable for oxygen sensor downstream of catalytic converter

   1	Left plug connection for oxygen sensor
   2	Left retaining clip
   3	Right plug connection for oxygen sensor
   4	Right retaining clip

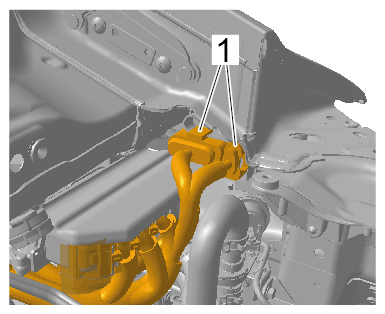

4. Secure differential pressure sensor -1- at the left and right in the engine compartment.

   Fit differential pressure sensor at the holders and clip it in -Arrows-  .

   Connect cable plug -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Differential pressure sensor in engine compartment

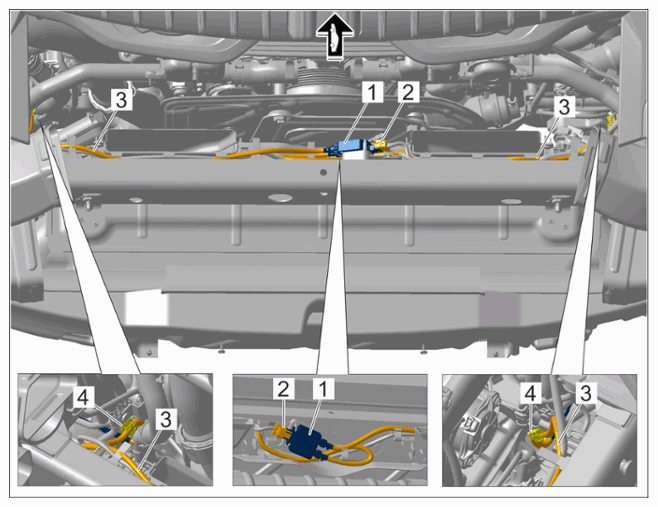

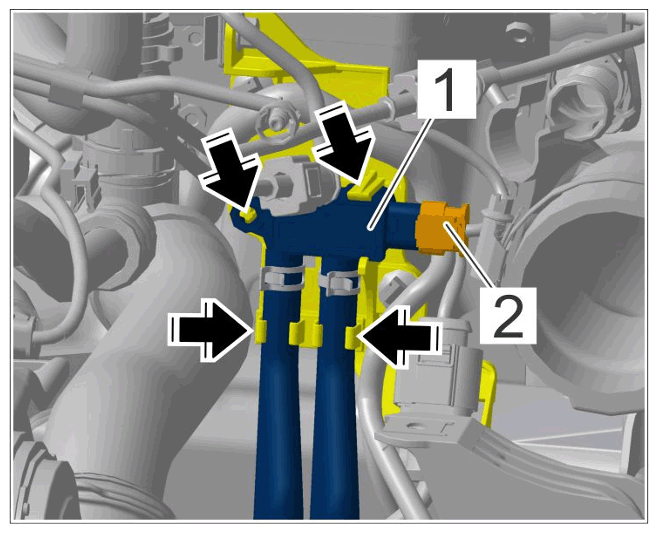

5. Route and secure control unit -1-  and exhaust temperature sensor lines in the engine compartment.

   Secure cables -3-  in the holders -4-  .

   Release and disconnect cable plug -2-  .

   Clip in exhaust temperature sensor control unit -1- at the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Exhaust temperature sensor control unit

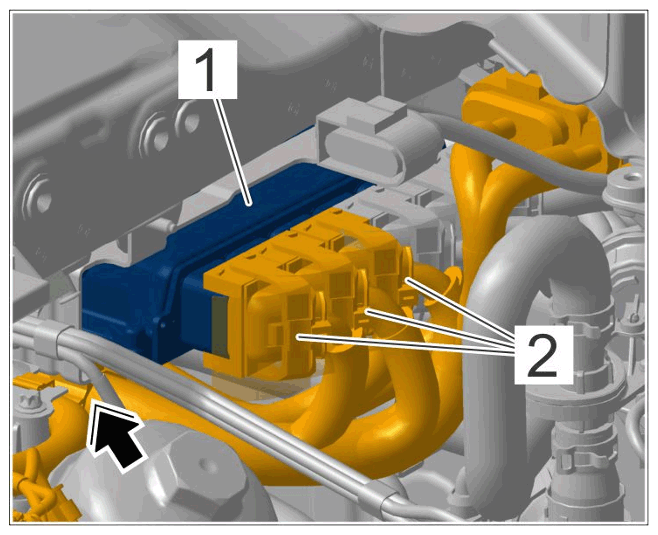

6. Connect engine wire harness at the engine control unit (DME) -1-  .

   Connect and lock the three front cable plugs -2-  on the engine control unit.

   The cable plugs are colour-coded and their position on the control unit is indicated by coloured dots.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine wire harness on engine control unit (DME)

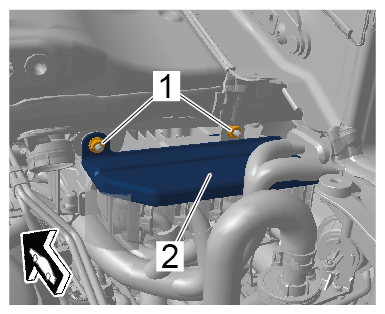

7. Install cover -2-  on engine control unit.

   Fit and tighten nuts -1-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on engine control unit (DME)

8. Insert cable plug for engine wire harness -1- in the engine compartment at the right and check secure positioning.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plug for main wire harness

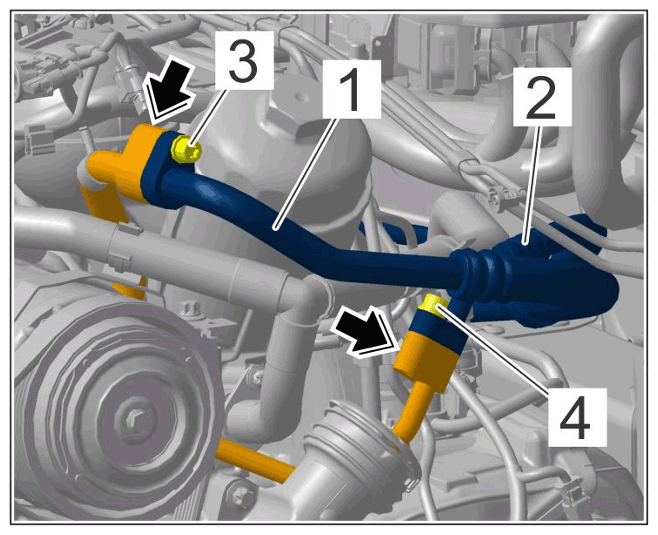

9. Connect air-conditioning lines -1 and 2-  with new screws and seals in the engine compartment.

   874319 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR - CONDENSER REFRIGERANT LINE (SECTION FROM AIR-CONDITIONING COMPRESSOR TO ENGINE COMPARTMENT CONNECTION POINT) - on "Installing"

   Tighten screws -3 and 4-  , countering with > 9822 - assembly tool-Arrows-  . > Tightening torque 14 Nm (10.3 ftlb.)  → >

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air-conditioning line connections in engine compartment

10. Fill up coolant.

    193817 DRAINING AND FILLING COOLANT - on "Filling"

    Check all connections on the cooling system that were opened during removal for leaks.

11. Install rear spoiler.

    66581900 REMOVING AND INSTALLING REAR SPOILER - on "Installing"

12. Install rear apron.

    635519 REMOVING AND INSTALLING REAR APRON - on "Installing"

13. Install charge air cooler.

    214319 REMOVING AND INSTALLING CHARGE-AIR COOLER - on "Installing"

14. Fit engine-compartment blower.

    198119 REMOVING AND INSTALLING ENGINE-COMPARTMENT BLOWER - on "Installing"

    Connect central connector.

15. Add refrigerant for air conditioning system.

    870317 DRAINING AND FILLING REFRIGERANT R1234YF - on "Filling"

    870317 DRAINING AND FILLING REFRIGERANT R134A - on "Filling"

16. Fit all covers.
17. On Cabriolet vehicles:  Install support plate.

    Refer to the appropriate service information.

18. Install cover for underbody.

    Refer to the appropriate service information.

19. Secure battery ground strap.

    978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

20. Bleed the cooling system according to specifications using the PIWIS Tester.

    190107 BLEEDING THE COOLING SYSTEM

21. Check engine-oil level and top up with new engine oil if necessary.

    170101 CHECKING ENGINE-OIL LEVEL

22. Remove protective covers.
23. Perform suspension alignment.

    449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
