Removing Engine

WARNING: This page is about a different variant/trim than selected.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

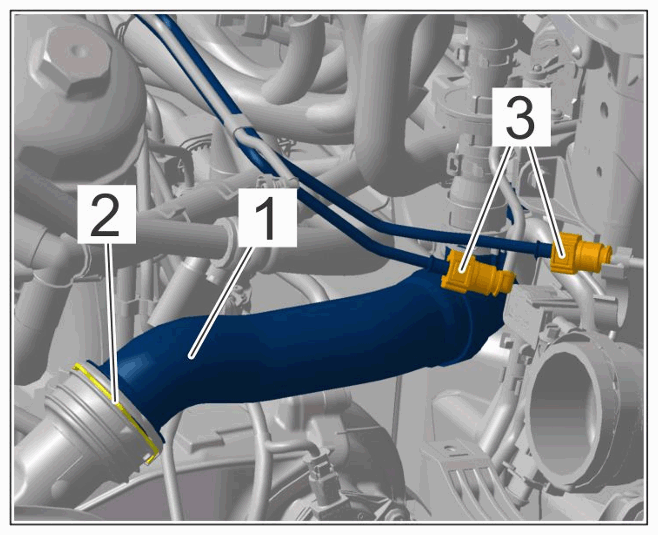

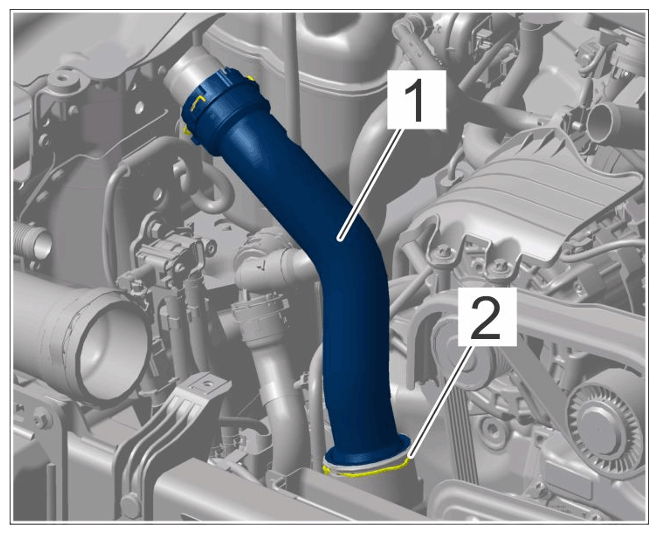

Pull off right -1- coolant hose.
Remove spring clamp -2- and pull off coolant hose.

Close off opening using a suitable stopper. Re-fit spring clamp.

Check O-ring and replace it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose right
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
  → Avoid contact with hot parts or sources of ignition.

  → Use suction to remove ignitable vapours.

  → Attach warning sign in a clearly visible position.

  → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

  → Secure collection containers/vessels to prevent them from tipping over.

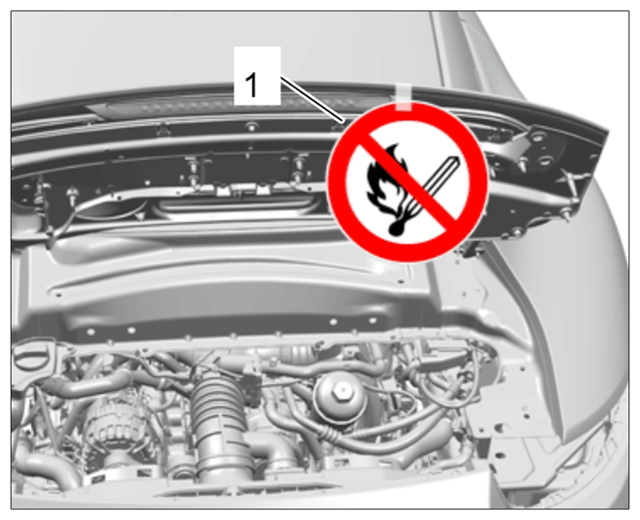

Before opening the fuel line, attach or mount a warning sign -1- in a clearly visible position on the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Warning sign when working on the fuel system

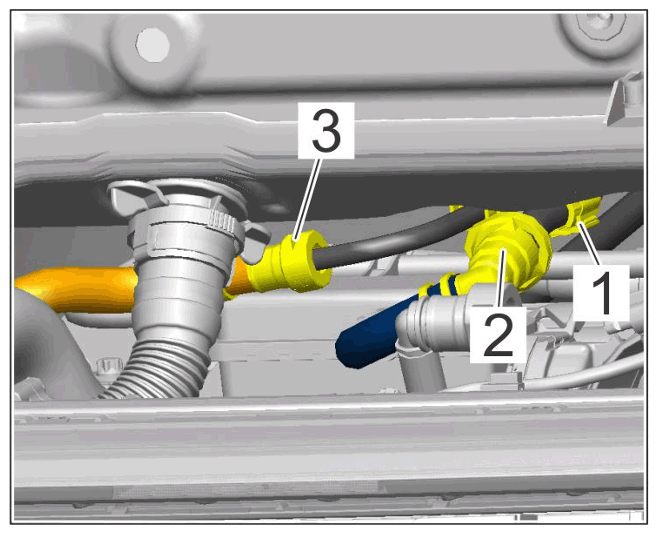

Open tank vent line -2- and fuel low-pressure connection -3- in the engine compartment.
Open holder -1- and unclip lines.

Pull off plug-in couplings on the lines.

Soak up any emerging fuel with a cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line connection in engine compartment

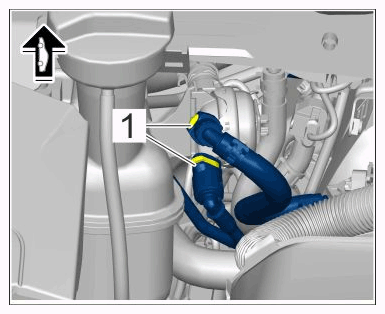

Open vent lines -1- at the coolant reservoir.
Press locking lugs on the coolant vent line and pull off line to the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Breather hoses
Open supply connecting lines for engine cooling and heating -2- .
Open plug-in couplings -1- by pulling the spring clamps into unlocking position and disconnect plug-in couplings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses on reservoir

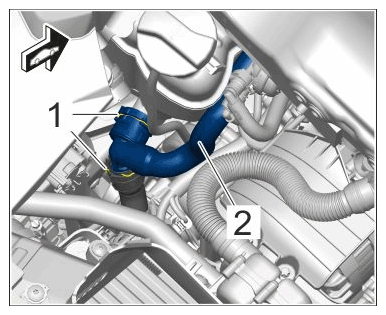

Pull off left coolant hose -1- .
Remove spring clamp -2- and pull off coolant hose.

Close off opening using a stopper and re-fit spring clamp.

Check O-ring and replace it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose left

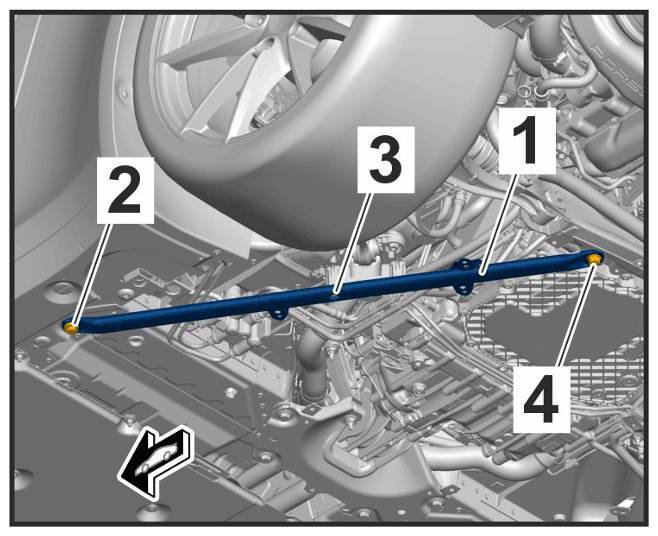

Coupe vehicles: Remove struts -1- .
Unscrew screws (M12 x 40) -2-with washer. Replace screw.

Unscrew screws M12 x 45 -4- . Replace screw.

Unscrew screws (M10 x 45) -3- and remove struts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for strut on Coupe

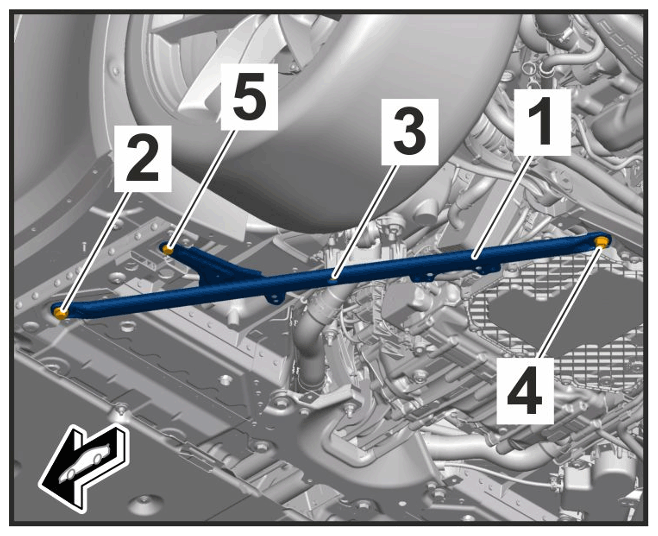

Cabriolet vehicles: Remove struts -1- .
Unscrew screw (M12 x 40) -2- with washer. Replace screw.

Unscrew screw (M12 x 45) -4- . Replace screw.

Unscrew screw (M8 x 25) -5- .

Unscrew screw (M10 x 45) -3- and remove struts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for strut on Cabriolet
Loosen anti-roll bar at the connecting link -1- at the bottom.
Unscrew collar nut -2- and counter at the internal Torx screw.

Replace collar nut (also for vehicles with PDCC).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link (conventional view)

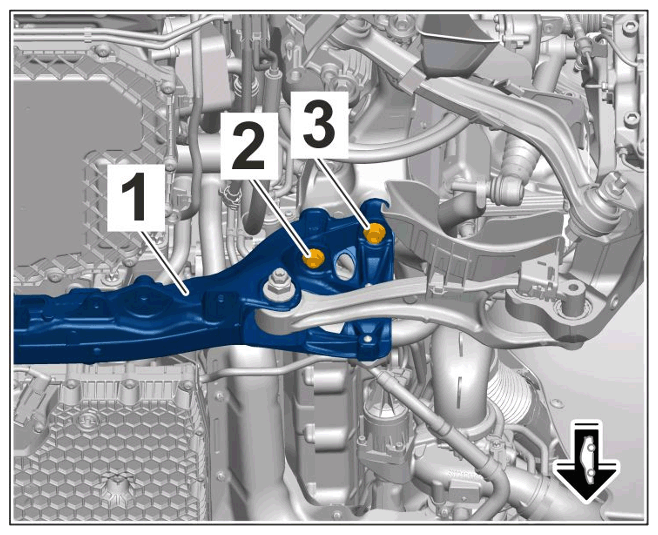

Remove lower trailing arm -1- .
421119 REMOVING AND INSTALLING TRAILING ARM - on "Removing"

Loosen screws -2 and 3- and counter at each screw.

Replace screw and collar nut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for trailing arm, lower
Remove rear-axle carrier -1- .
420619 REMOVING AND INSTALLING REAR AXLE CARRIER - on "Removing"

You will need the help of a second person in order to remove the rear axle carrier.

Position > VAS 6931 - engine and gearbox jack under the rear axle carrier.

Unscrew M12 screws -2 and 3- .

Lower the rear axle carrier with anti-roll bar and set it down.

Replace screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear axle carrier mounting

Vehicles with Porsche double-clutch transmission (PDK):

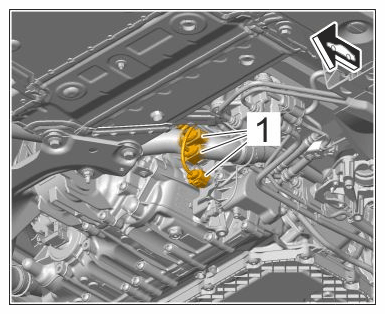

Disconnect cable plugs on double-clutch transmission.
Release and disconnect three cable plugs -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs on double-clutch transmission

Vehicles with manual transmission:

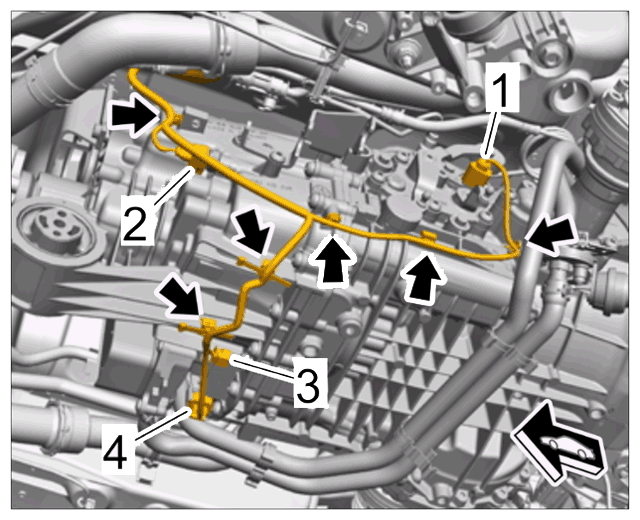

Disconnect and unclip wiring harness on the manual transmission -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiring harness for manual transmission

1	Neutral gear sensor
2	Reverse gear switch
3	Temperature sensor
4	Speed sensor

Loosen and disengage shift and selector cables.

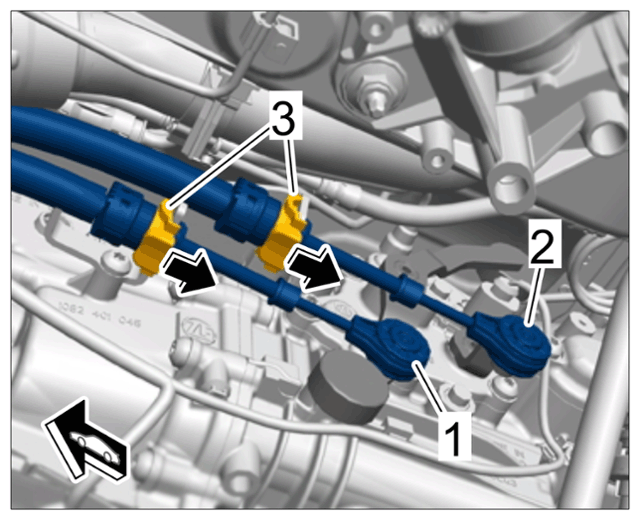

Loosen shift -1- and selector cables -2- by pressing off ball joints using > VAS 6933 - disassembly tool .

Disengage shift and selector cables at the support brackets by pressing the locking clips -3- to the rear -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shift and selector cable on transmission

All vehicles:
Disconnect B+line.

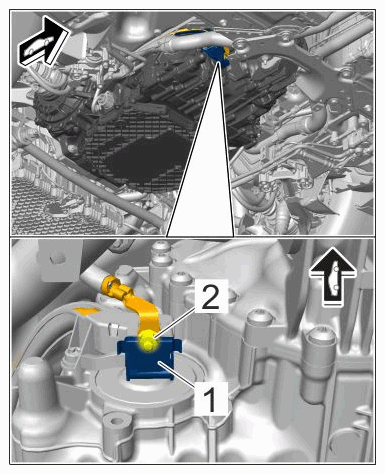

B+ line on PDK: Open cap -1- and unscrew collar nut -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection point for B+ line (view on PDK)

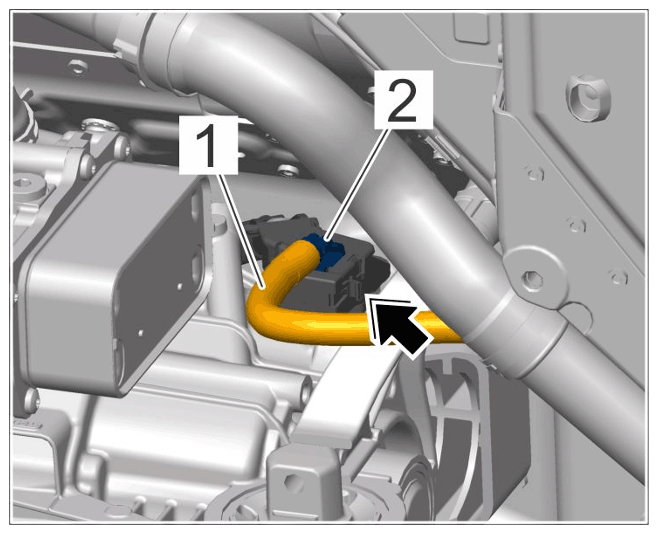

B+ line -1- - manual transmission: Open the cap -Arrow- and unscrew collar nut on the cable shoe -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection point for B+ line for manual transmission

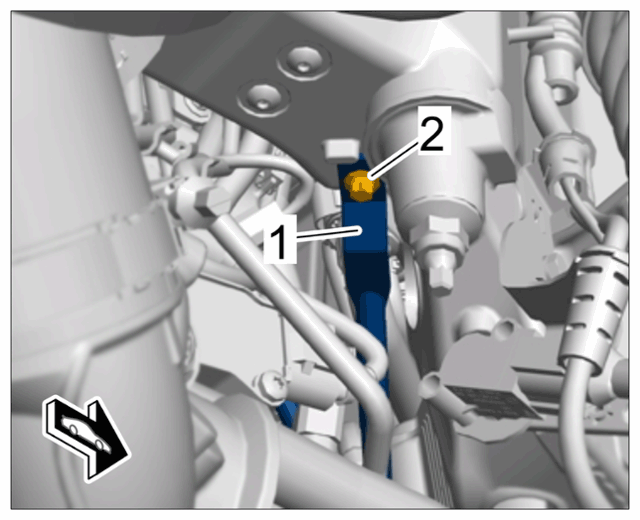

Loosen ground strap -1- on the longitudinal member and unscrew M8 screw -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine ground strap to body

For all wheel drive vehicles:

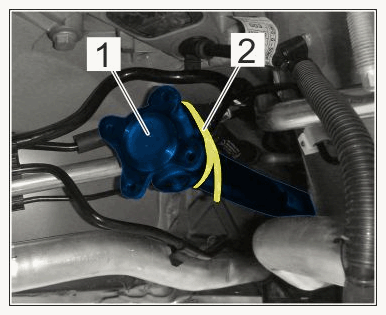

Loosen cardan shaft -1- on transmission flange and tie it up with a cable-tie -2- .
390219 REMOVING AND INSTALLING CARDAN SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tying up cardan shaft

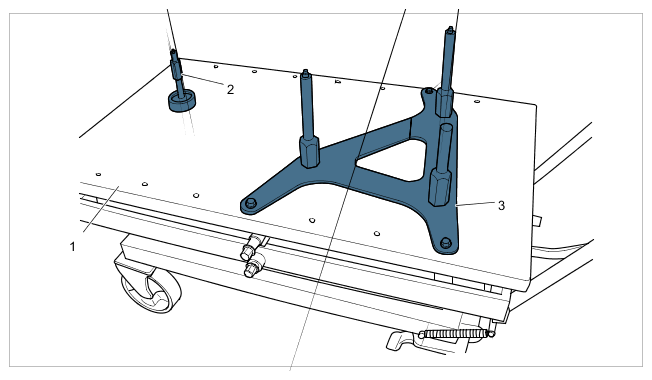

Prepare > VAS 6832 - Master Gear unit elevating platform for removing the engine.

> 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ASSEMBLY SUPPORT

Observe installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Master Gear unit elevating platform with mounting point for engine and transmission bracket

1	> VAS 6832 - Master Gear unit elevating platform
2	> 9769/1 - Support for Porsche double-clutch transmission (PDK) and 7-speed manual transmission
3	> 9769 - Retainer plate for engine

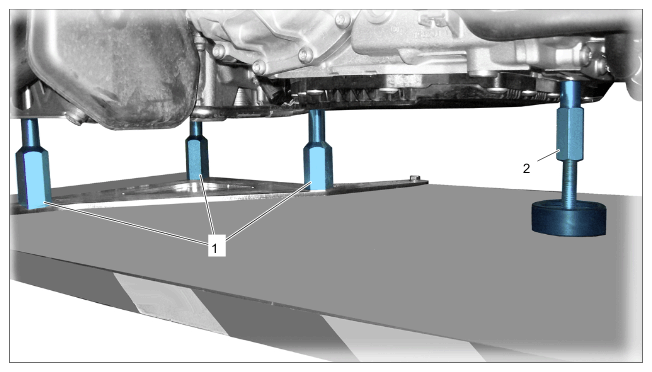

Move elevating platform under the vehicle. Position supports -1 - for > 9769 - retainer plate and > 9769/1 - support-2- for transmission on the units.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting engine and transmission using unit elevating platform

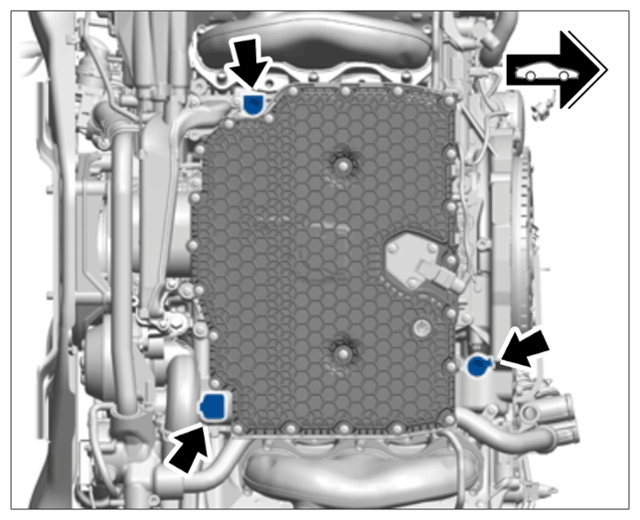

Engine mounting points -Arrows- for the retainer plate supports.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounting points

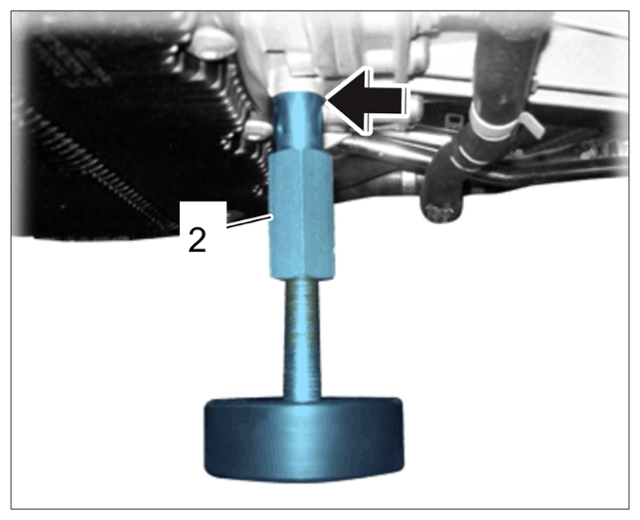

> 9769/1 - Support-2- for transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support for double clutch transmission

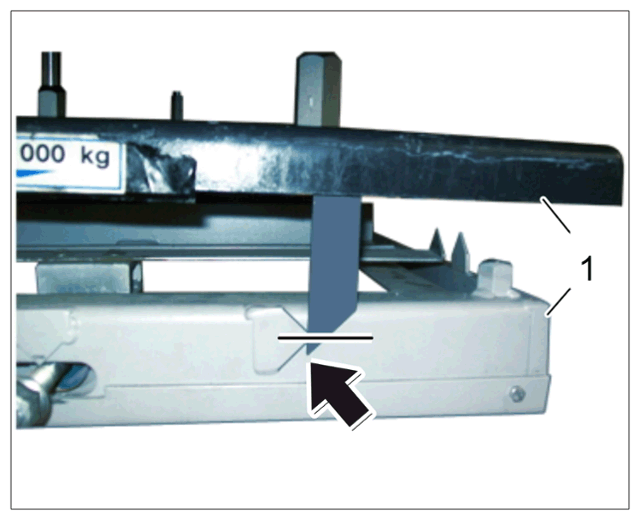

Adjust tilt angle of the elevating platform plate -1- according to the installation position of the engine/transmission unit -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting tilt angle of lifting platform (view of side tilt angle)

Support the engine/transmission unit with the elevating platform.
Also secure the engine/transmission unit on the elevating platform with a tension strap (> 9454 - strapping belts ).

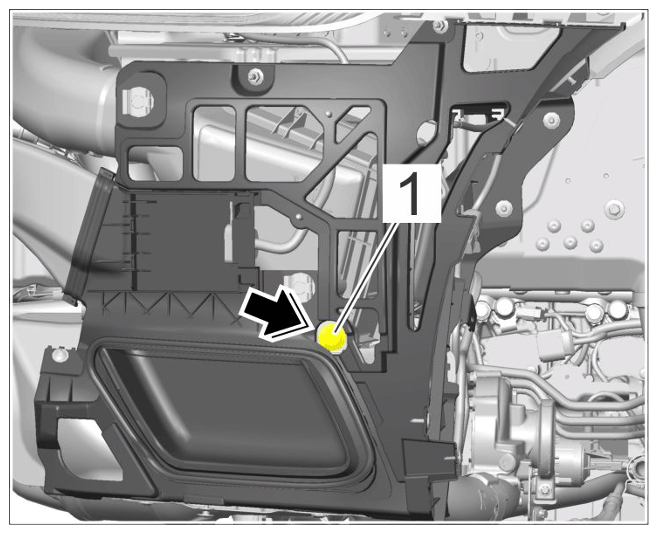

Loosen engine mounts on both sides.
Unscrew screws -1- to the left and right on the grommets -Arrow- on the rear carrier.

Replace screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounts

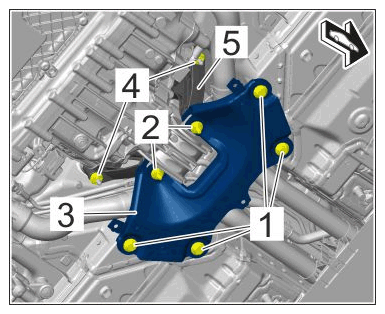

Remove transmission support and transmission bracket.
Unscrew screws -1- and nuts -2- on the transmission bracket.

Unscrew nuts -4- on transmission support -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission support and transmission bracket (view on PDK)
CAUTION:
Risk of material damage when lowering engine
- Damaged components must be replaced.
  → Get one or two more people to help.
Slowly lower the engine/transmission unit by about 100 mm using the elevating platform.

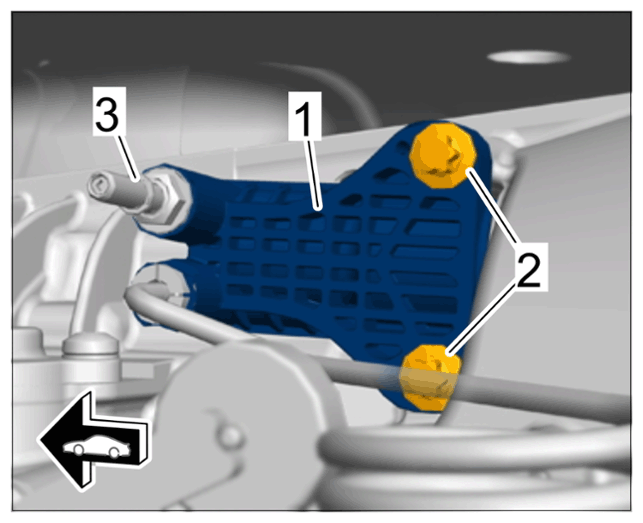

For vehicles with manual transmission: Remove clutch slave cylinder -1- .
303019 REMOVE AND INSTALL CLUTCH SLAVE CYLINDER

The clutch system remains closed!

Unscrew M8 screws -2- and remove clutch slave cylinder.

Secure clutch slave cylinder with a tie-wrap.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clutch slave cylinder
Lower the engine/transmission unit with the elevating platform.
