Additional Work For Vehicles With PDCC

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of injury and material damage when using Pentosin.

Risk of skin irritation and damage to skin.
Damage to hoses and wiring.
→ Wear protective gloves and goggles.

→ In the event of contact (eyes or skin), wash immediately with water.

→ Collect emerging Pentosin.

→ Use caps to protect the wiring against soiling and damage.

→ Clean hoses and wiring immediately.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

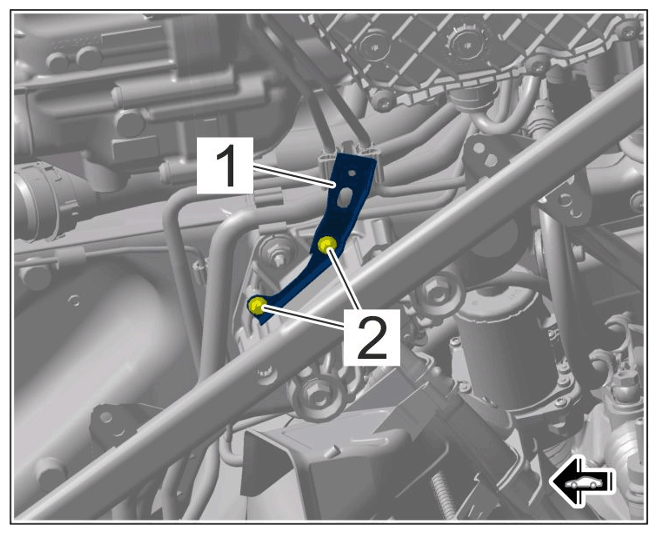

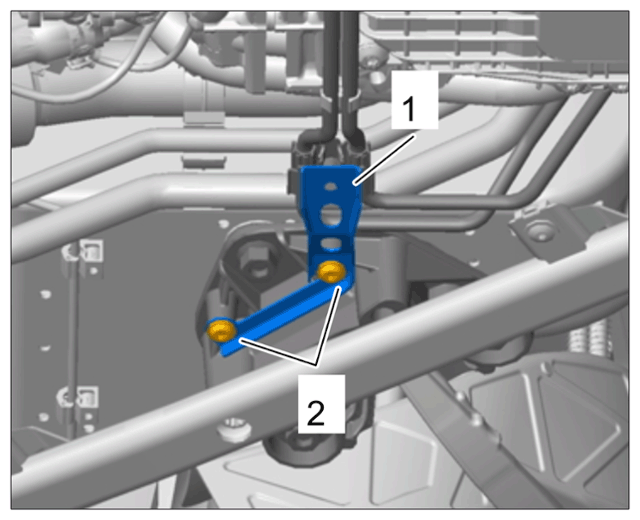

Remove holder -1- for hydraulic lines at the right.
Unscrew two M6 fastening screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holders for hydraulic lines

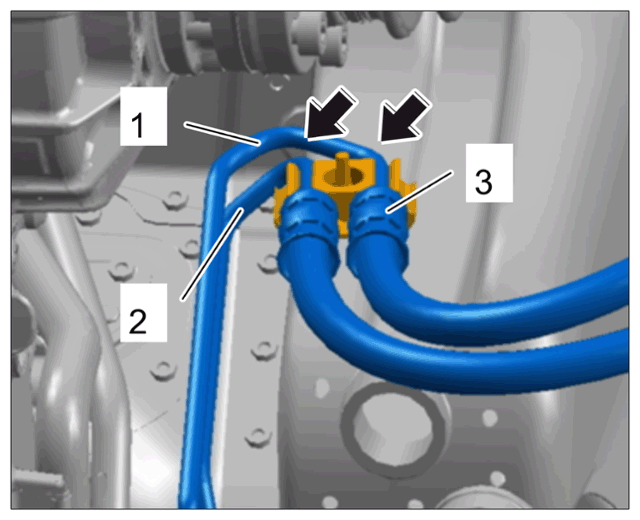

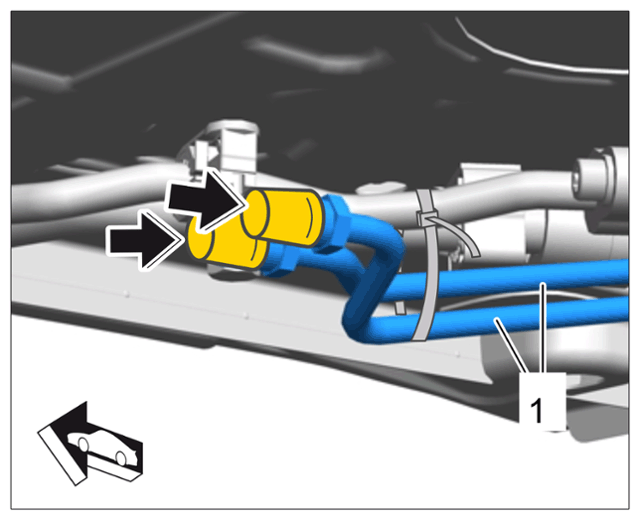

Unclip hydraulic lines -1 and 2 - at the right -Arrows- .
Remove fixing clip -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip for hydraulic lines at the right
Disconnect and close off hydraulic lines on the distributor.

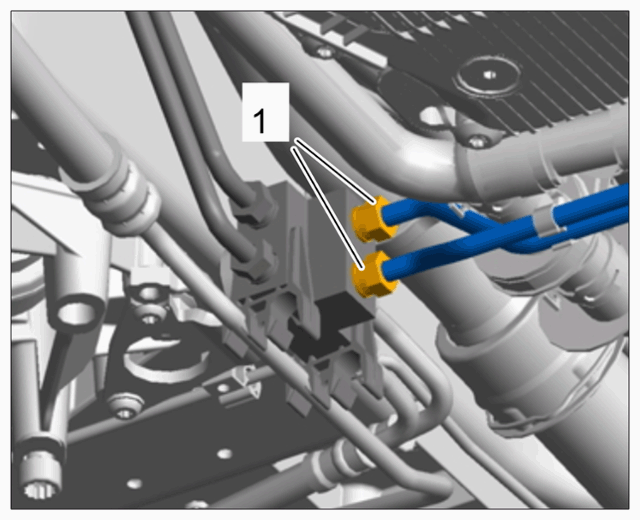

Loosen union nuts -1- on the pressure lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic lines on the distributor

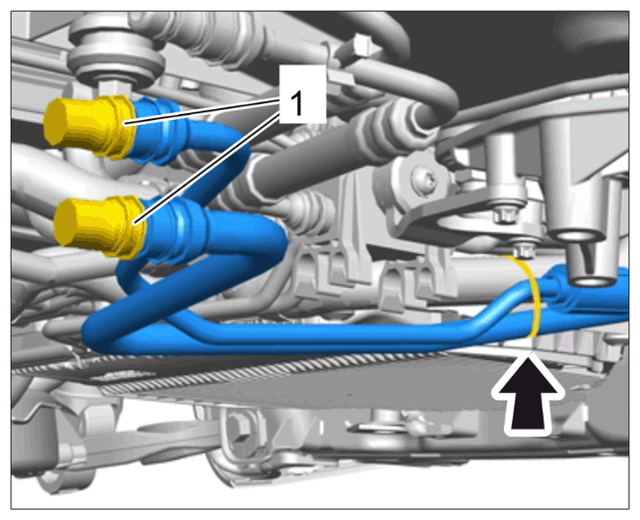

Close off hydraulic lines and secure them at the side with a tie-wrap.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Closing off hydraulic lines

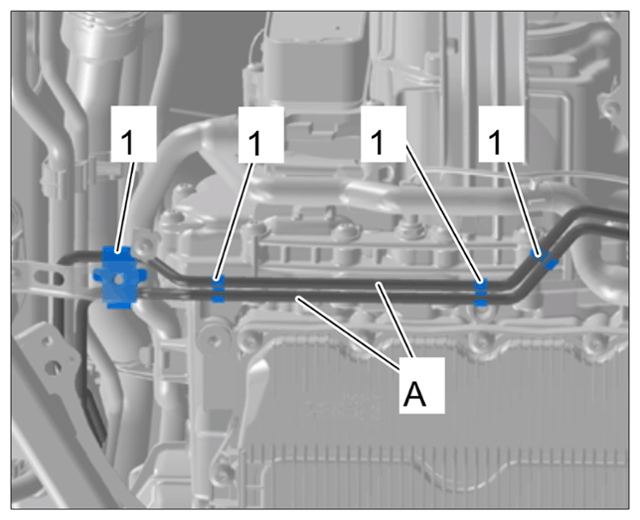

Unclip PDCC lines -A- from the brackets -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for PDCC lines

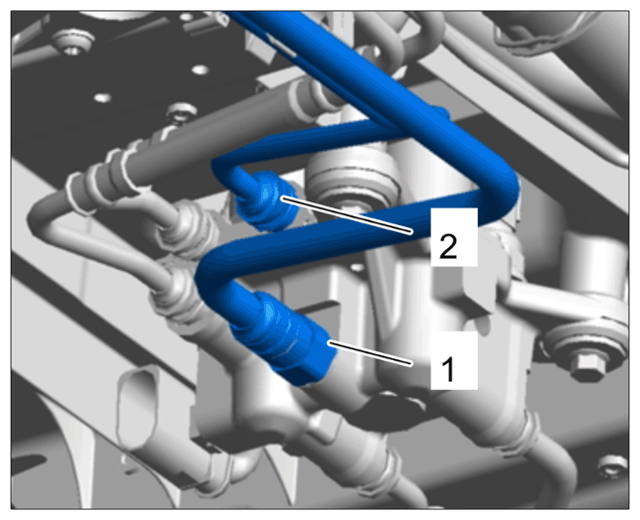

Disconnect plug-in couplings -1 and 2- for the steering hydraulic system on the valve block. Collect any Pentosin that leaks out in a suitable container.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic lines on valve block

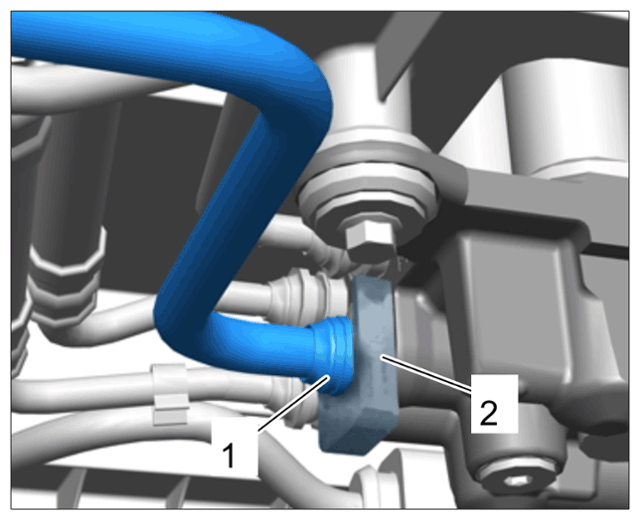

Open the return line -1- using special tool -2- > 9780 - loosening tool .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Return line on valve block with tool 9780

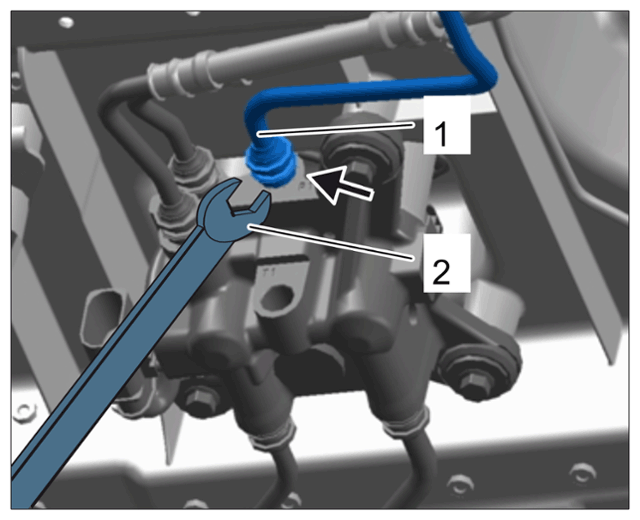

Open the pressure line -1- using an open-ended wrench (a/f 15). Press thrust ring towards the valve block using an open-ended wrench and pull off the line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure line on valve block
Close off hydraulic lines -1- and secure them with a tie-wrap.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Closing off and securing hydraulic lines

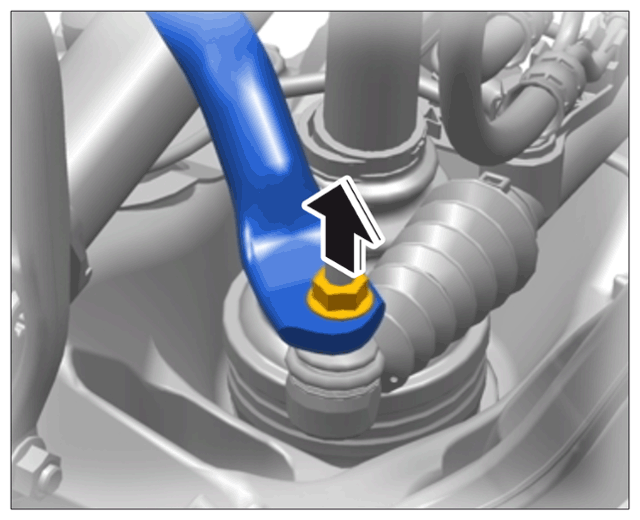

Loosen anti-roll bar at the hydraulic actuator.
Unscrew M10 collar nut and counter at the internal Torx screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar on PDCC actuator

Information

Only for vehicles with PDCC: After installing a replacement engine, pressure must be applied to the PDCC pump via the reservoir.

Route PDCC lines -LHP vehicle - on the underbody and clip them into the brackets -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for PDCC lines
Remove all stoppers from the hydraulic lines -1- and loosen tie-wrap.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Example of hydraulic lines blocked and secured
Connect plug-in couplings -1 and 2- for the steering hydraulic system on the valve block.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic lines on valve block
Clip in hydraulic lines -1 and 2 - at the right -Arrows- .
Fit fixing clip -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip for hydraulic lines at the right
Secure hydraulic lines on the distributor with union nuts -1- .
> Tightening torque 28 Nm (21 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic lines on the distributor
Install holder -1- for hydraulic lines at the right.
Fit and tighten screws -2- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for hydraulic line holder
Fill in Pentosin at the hydraulic reservoir, check the fluid level and top up if necessary.
430501 CHECKING HYDRAULIC FLUID
Apply pressure to the pump via the reservoir.
Bleed the system.

430307 BLEEDING THE PDCC SYSTEM
Visually inspect line connections for leaks.
