Lowering The Engine
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.

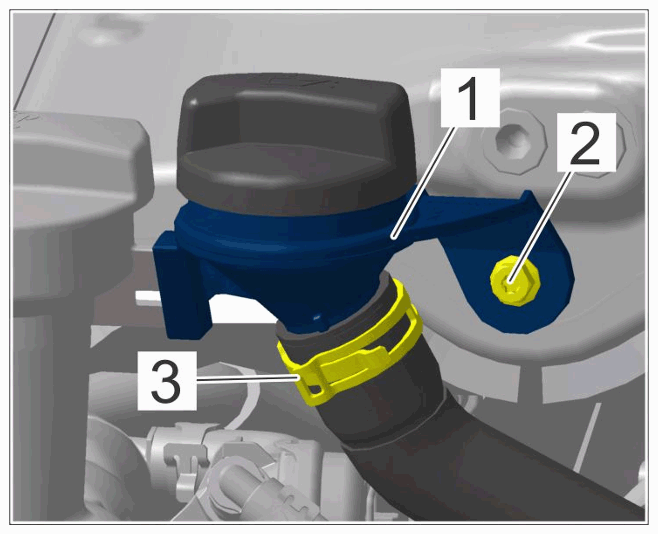

- Pull off oil filler hose on oil filler neck -1-
at the left by opening the spring band clamp -3-
.
Oil filler hose on oil filler neck
- Pull off coolant hose -1-
at the left-hand side of the engine compartment.
Remove spring clamp -2- and pull off the coolant hose.
Close off opening using a stopper and re-fit spring clamp.
Check O-ring and replace it if necessary.
Left coolant hose
- Open supply connecting lines for engine cooling and heating -2-
.
Open plug-in couplings -1- by pulling the spring clamps into unlocking position and disconnect plug-in couplings.
Clip in spring clamps again.

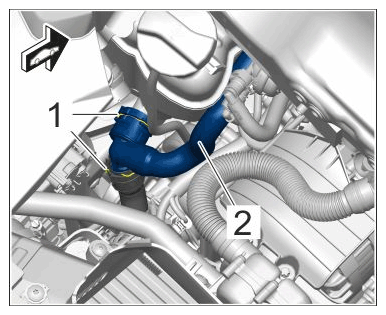

Coolant hoses on reservoir
- Disconnect vent lines -1-
at the coolant reservoir.

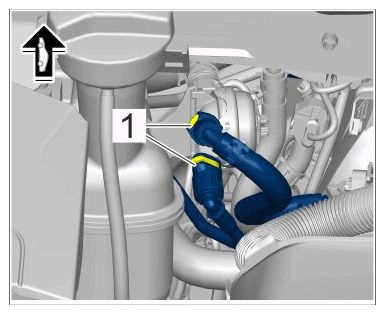

Vent lines on coolant reservoir
- Disconnect coolant hose -1-
in the engine compartment at the right and vacuum lines -3-
.
Remove spring clamp -2- and pull off the coolant hose.
Close off opening using a suitable stopper. Re-fit spring clamp.
Check O-ring and replace it if necessary.

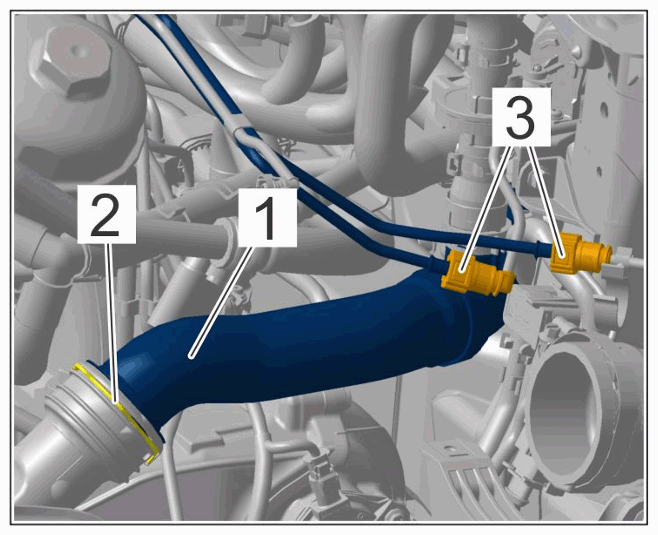

Right coolant hose and plug-in couplings for vacuum lines
- Open retaining clip -1-
for fuel line and tank vent line and unclip the lines.

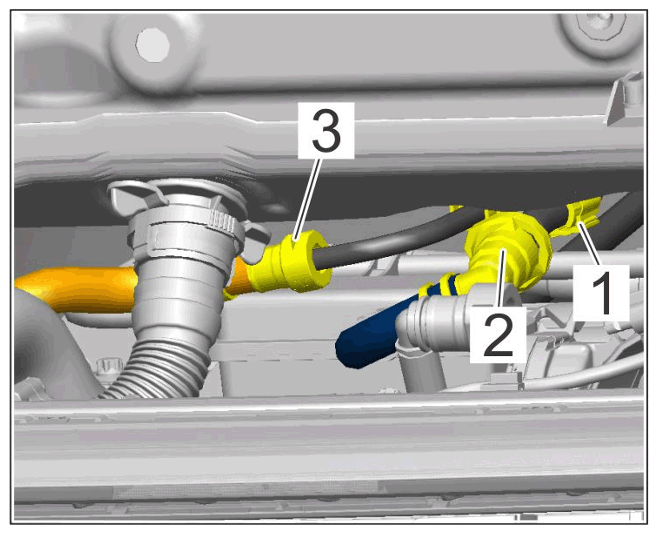

Connection for tank vent line and fuel line in engine compartment
- Unclip differential pressure sensor -1-
in the engine compartment at the left and right -Arrows-
.

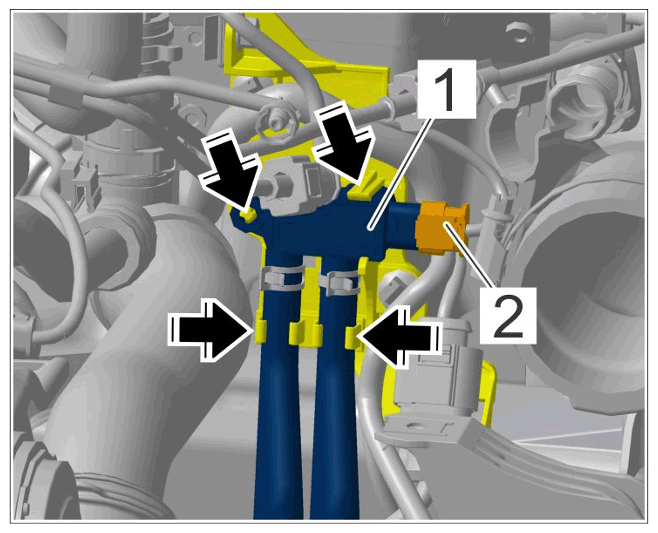

Differential pressure sensor in engine compartment
- Disconnect cable plugs -1 and 3-
on oxygen sensors downstream of catalytic converter in the engine compartment and expose cables -2 and 4-
.

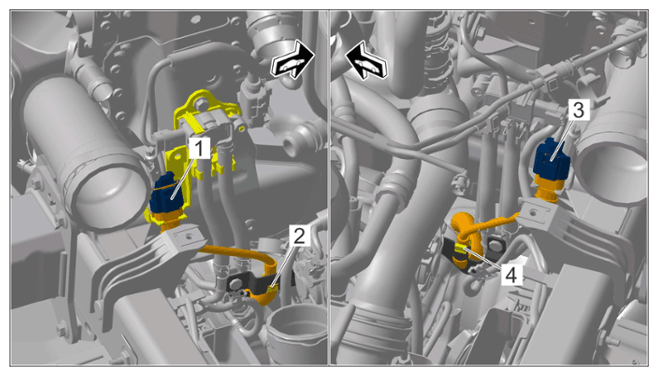

Cable plug and cable for oxygen sensor downstream of catalytic converter
- Loosen exhaust temperature sensor control unit -1-
and wiring harness -2-
.
Loosen exhaust temperature sensor control unit from holder.
Loosen wiring harness -3- from the holders -4- .
Expose wiring harness.

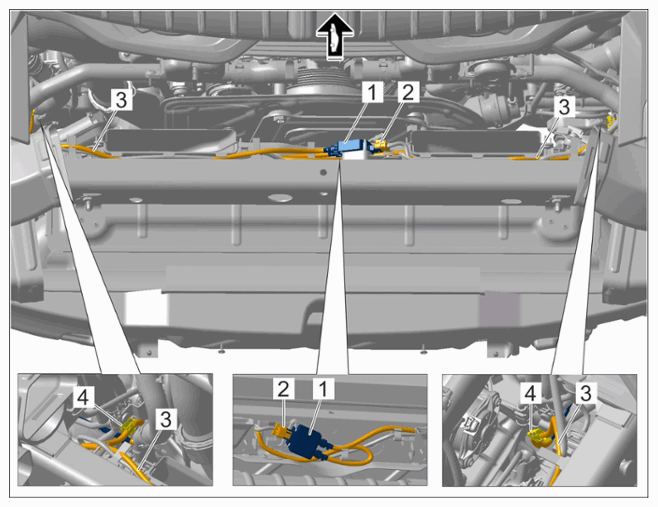

Evaluation unit for exhaust temperature sensor
- Disconnect cable plug -1-
on the exhaust flap adjuster -2-
.

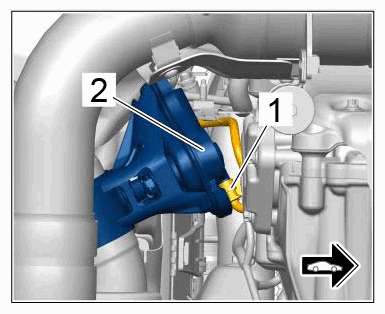

Cable plug on electric exhaust flap adjuster
- Remove cover -2-
on engine control unit.
Unscrew nuts -1- and remove cover.

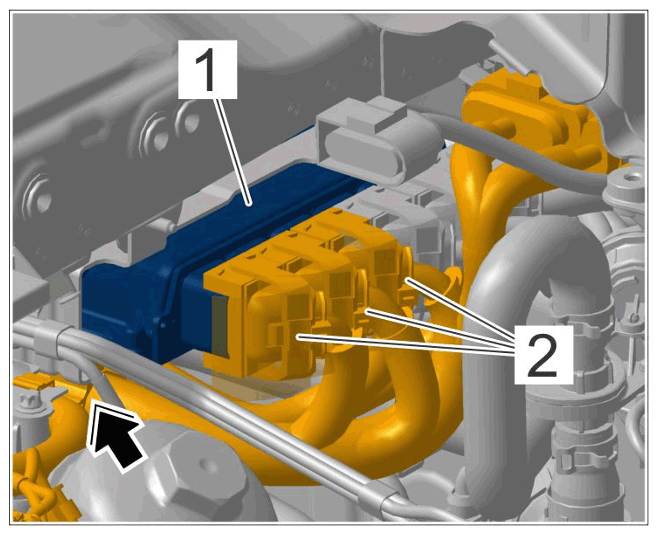

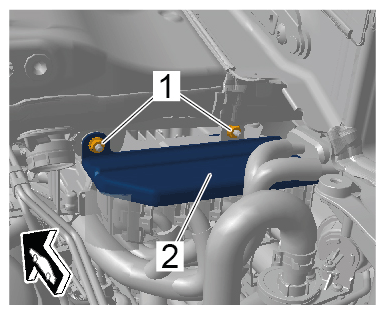

Cover on engine control unit (DME)
- Disconnect engine wire harness at the engine control unit (DME) -1-
.
Release and disconnect the front three cable plugs -2- on the engine control unit.
The cable plugs are colour-coded and their position on the control unit is indicated by coloured dots.
Engine wire harness on engine control unit (DME)
- Release and disconnect cable plug for engine wire harness -1-
in the engine compartment at the right.

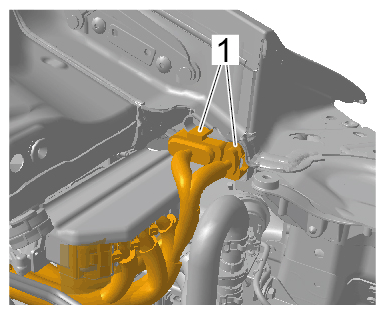

Cable plug for main wire harness
- Loosen trailing arm -1-
on both sides of the outer wheel carrier.
421119 REMOVING AND INSTALLING TRAILING ARM - on "Removing"
Unscrew outer threaded joint -2- and counter at the screw.
Replace screws and nuts.

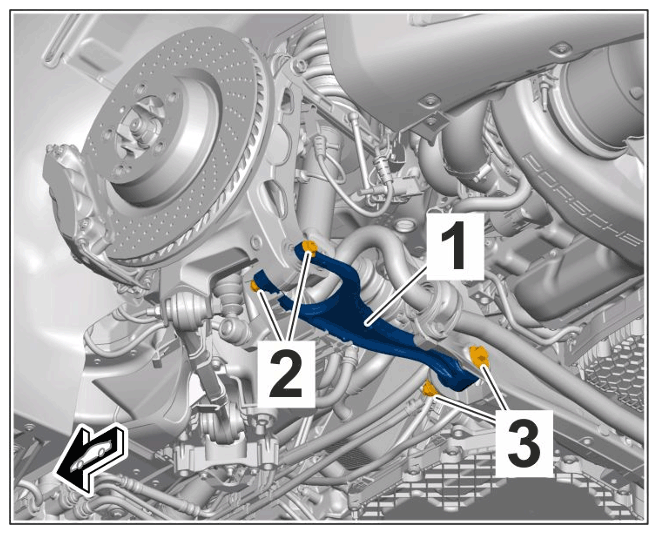

Mounting for lower trailing arm
- Loosen and lower the rear axle carrier -1-
.
420619 REMOVING AND INSTALLING REAR AXLE CARRIER - on "Removing"
You will need the help of a second person in order to remove the rear axle carrier.
> VAS 6931 - Transmission and Engine Jack must be positioned under the rear axle carrier.
Uncrew and remove screws -2 and 3- .
Lower the rear axle carrier with anti-roll bar and secure it with tie-wraps.
Replace screws.

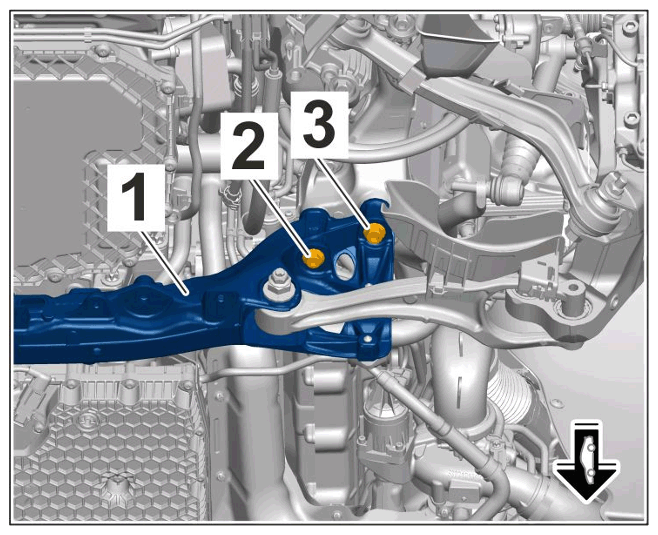

Rear axle carrier mounting
- Release and disconnect cable plug on electronic adjuster for turbocharger.
- Disconnect intake manifold -1-
and moulded hose -4-
from the intake air line and turbocharger on the left and right.
Loosen V-band clamp -2- . Right side only: Loosen vent line -3- and pull off intake pipe.
Undo screw-type clamp -5- and remove moulded hose.

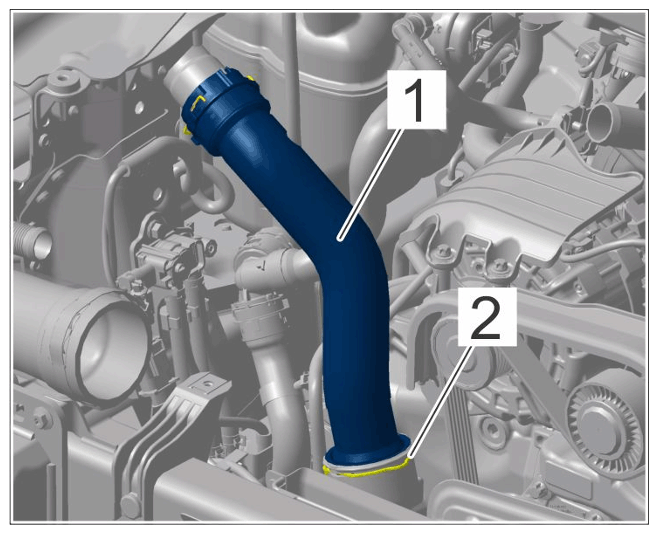

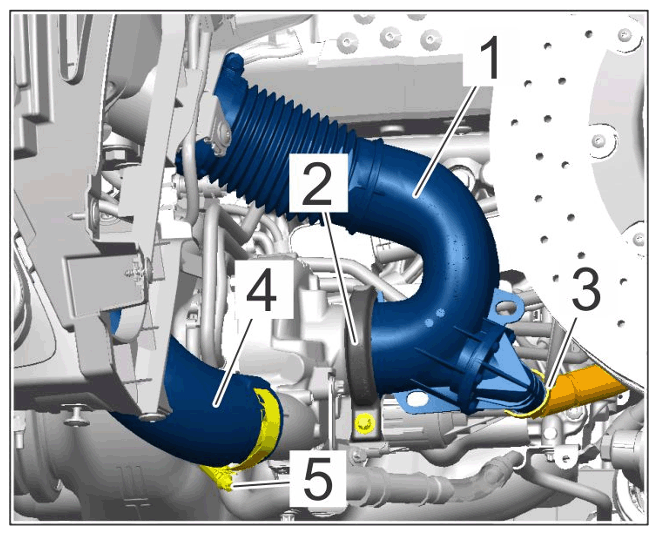

Intake manifold and moulded hose on turbocharger
Information
There are two ways of lowering the engine
- Lower the engine by 50 to 60 mm (You can use a lifting platform, see Step 18.1)
- Lower the engine by 90 to 100 mm (You cannot use a lifting platform, see Step 18.2)
- Lower the engine.
Lower the engine by 50 to 60 mm (using > 9959 - lowering tool ).
- 18.1.1 Support the engine using > VAS 6832 - Master Gear unit elevating platform and > 9769 - retainer plate .
- 18.1.2
Unscrew screws -2-
securing engine mount -1-
to engine bracket.

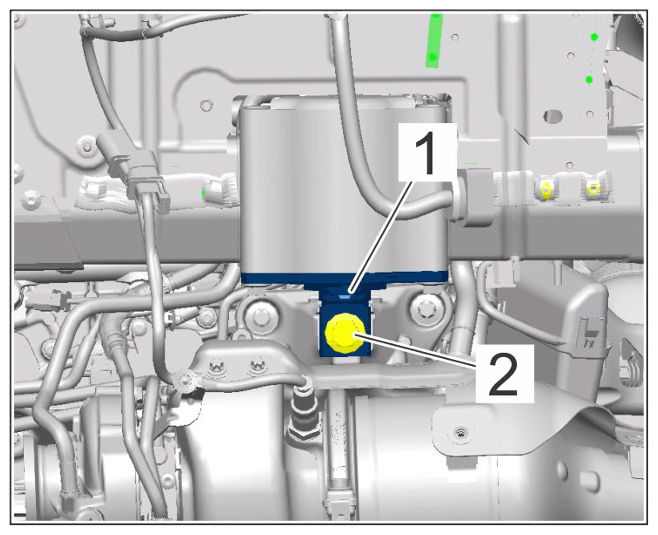

Screw securing engine mount to engine bracket
- 18.1.3
Carefully lower the engine by approx. 50 to 60 mm -dimension A-
. Raise and lower it as required in order to align it so that the > 9959 - lowering tool
can be fitted

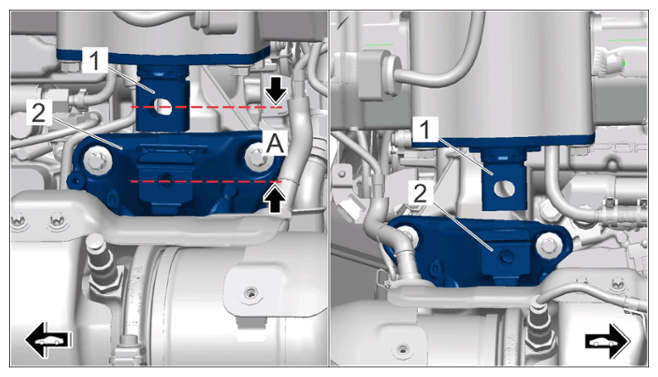

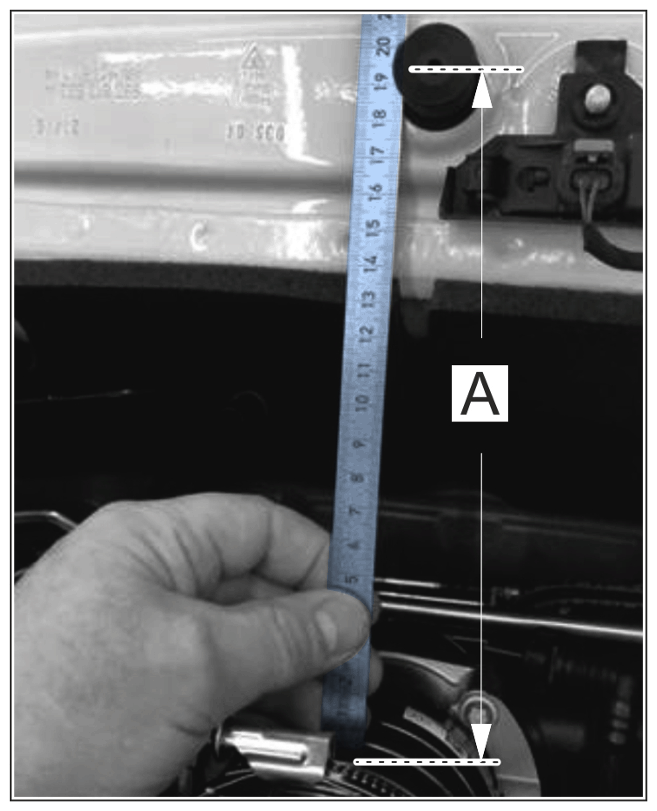

Lowering the engine to end position
- 18.1.4 > 9959 - Lowering tool-2- must be installed using screws -1 and 3- .

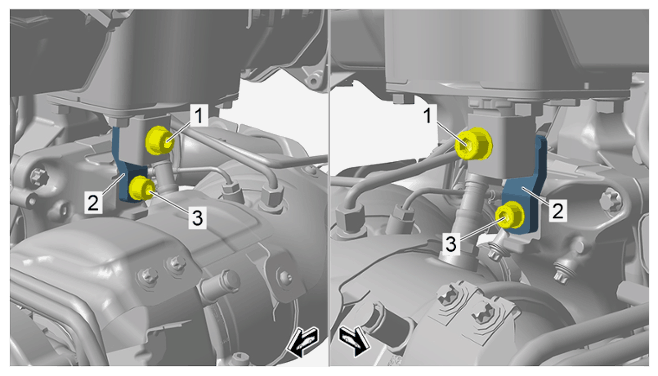

Installing lowering tool 9959
Lower the engine by 90 to 100 mm (without lowering tool) .
- 18.2.1 Drain refrigerant from the air-conditioning system.
- 18.2.2
Disconnect air-conditioning lines, close off using stoppers and set them aside.
Item -1-:
Item -2- :
Unscrew screws -3 and 4- at the connection point and close off the lines

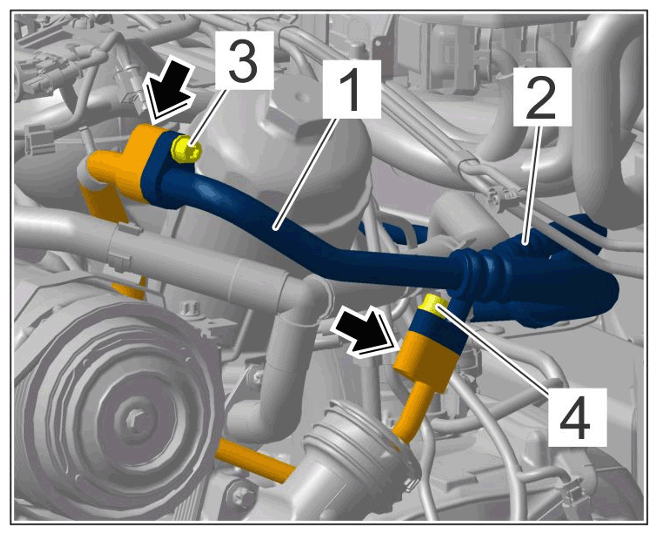

Air-conditioning line connections in engine compartment
- 18.2.3 For vehicles with PDCC:
Loosen holder -1-
for hydraulic lines on both sides. Unscrew two M6 fastening screws -2-
.

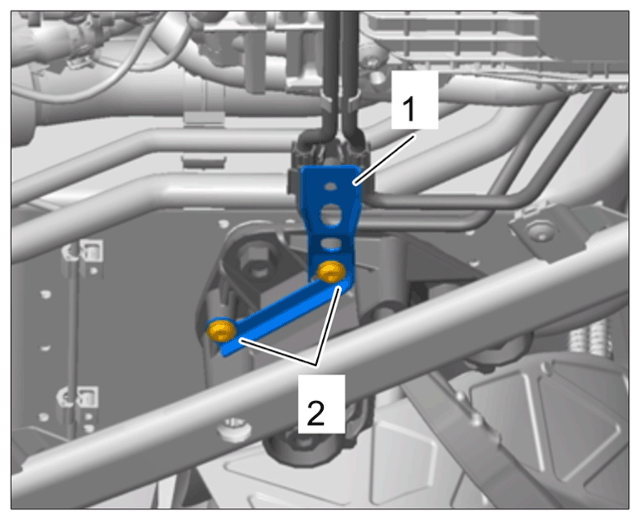

Holder for hydraulic lines (picture shows right side)
Information
- It may only be supported over a large area at the oil pan.
- Localised loading is not permitted.
- 18.2.4 > VAS 6931 - Transmission and Engine Jack and > VAS 6867 - Mounting Plate must be supported on the oil pan.
- 18.2.5
Unscrew screws -2-
securing engine mount -1-
to engine bracket.
Screw securing engine mount to engine bracket
Information
Make sure that the engine is positioned securely on the transmission jack. To do this, set the correct angle on the transmission jack.
- 18.2.6 Carefully lower the engine by 90 to 100 mm. Dimension -A- is 195 mm.
Lowering the engine to end position
