Component Overview
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

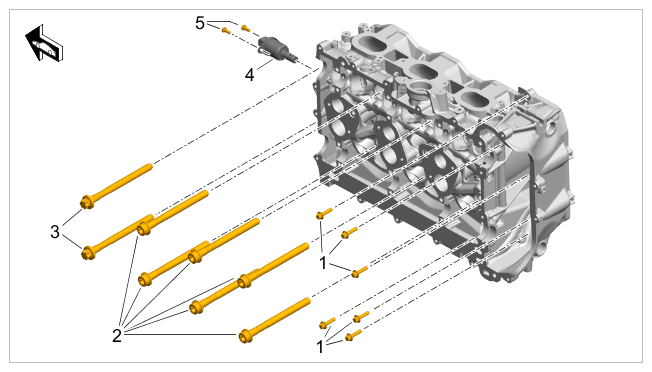

Component overview of cylinder head
| 1 |
Screw, M6 x 25 |
| 2 and 3 |
Screw, M12 x 1.5 x 140 |
| 4 |
Soienoid valve for valve lift adjustment |
| 5 |
Fastening screw, M5 x 12 |
