Removing Cover For Drive Belt

WARNING: This page is about a different variant/trim than selected.
  1. Remove drive belt covers -1-  and generator cover -2-  .

    Unscrew and remove screws -3-  .

    Take off drive belt covers -1-  and generator cover -2-  .

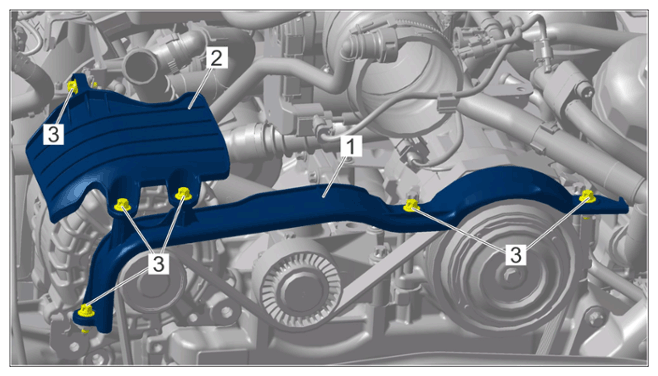

    G15486560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive belt covers and generator cover.
