Removing Vibration Damper

WARNING: This page is about a different variant/trim than selected.

Remove vibration damper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vibration damper

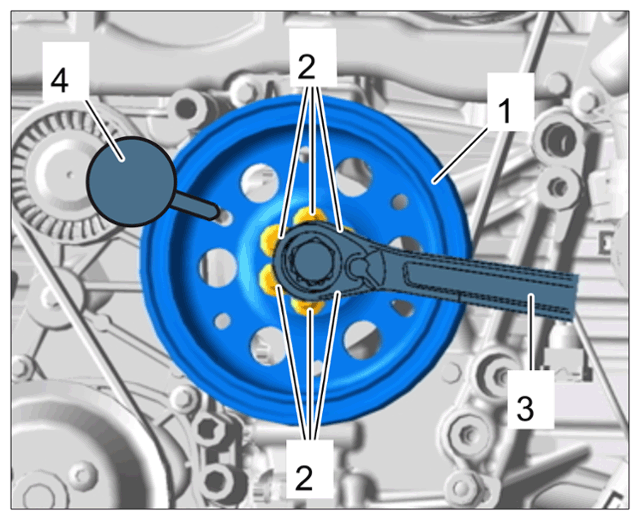

Position vibration damper -1- .
1. 1.1.1 Turn vibration damper clockwise using > 9773 - turning device-3- until TDC position is reached.
2. 1.1.2 > 9595/1 - Locating pin-4- must be inserted into the staking bore in order to secure the vibration damper -1- .
  Unscrew and remove screws -2- .

  Remove vibration damper -1- .

  Check vibration damper -1- for damage.
Check the centering pin on the crankshaft flange for damage and replace if necessary.
