Removing Belt TENSIONER

WARNING: This page is about a different variant/trim than selected.
CAUTION: Pointed or sharp objects
  • Risk of cracks, pricks or cuts

    → Wear personal protective gear.

  1. Remove belt tensioner -1-  .

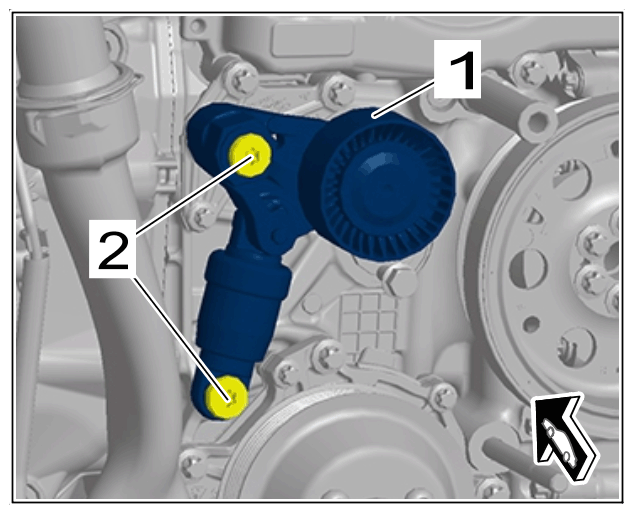

    G15486482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Belt tensioner

    Unscrew and remove screws -2-  .

    Remove belt tensioner -1-  .
