Installing Belt TENSIONER

WARNING: This page is about a different variant/trim than selected.

CAUTION: Pointed or sharp objects

Risk of cracks, pricks or cuts
→ Wear personal protective gear.

Install belt tensioner -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

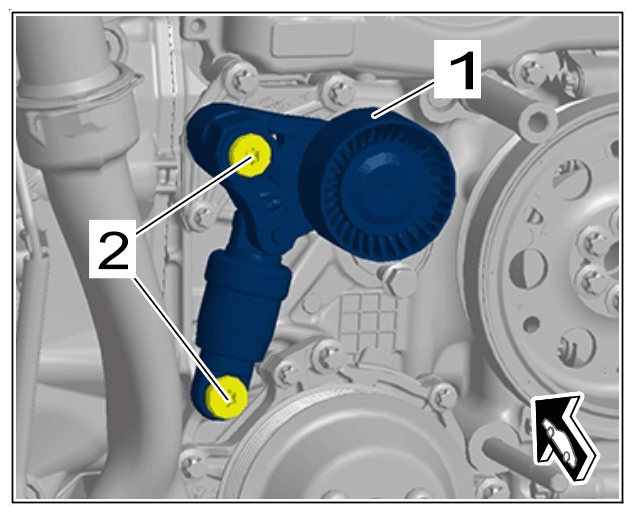

Belt tensioner

Fit belt tensioner -1- .

Screw in and tighten screws -2- .

> Tightening torque 27 Nm (20 ftlb.)
