Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install oil pump.

    172019 REMOVING AND INSTALLING OIL PUMP

    > Removing and installing oil pump

  2. Install oil pan (upper part).

    175019 REMOVING AND INSTALLING OIL PAN (UPPER PART)

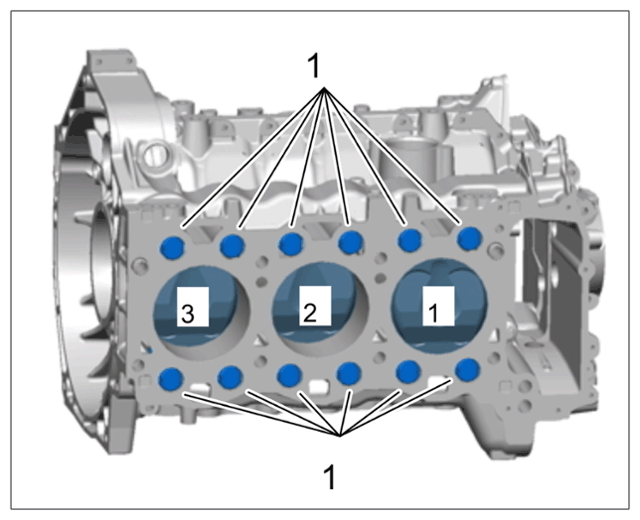

  3. Insert displacement bodies -1-  on cylinder bank 1.
    G15486452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1-3

  4. Install cylinder head.

    157019 REMOVING AND INSTALLING CYLINDER HEAD
