Removing Pistons - Cylinders 1-3

WARNING: This page is about a different variant/trim than selected.

WARNING: Preloaded or pressurized components

Risk of eye injuries
Risk of bruising
→ Wear personal protective gear.

→ Secure components to prevent them from falling off suddenly.

Information

The specified positions are for removing and installing components on the engine assembly support with the engine in a vertical position.

Information

Turn special tool > 9764 - disassembly tool only clockwise for removing the piston-pin circlips.
Always hold the tool firmly with one hand when using it.
Replace removed piston-pin circlips.

Information

The circlip will engage in the tool with an audible click.

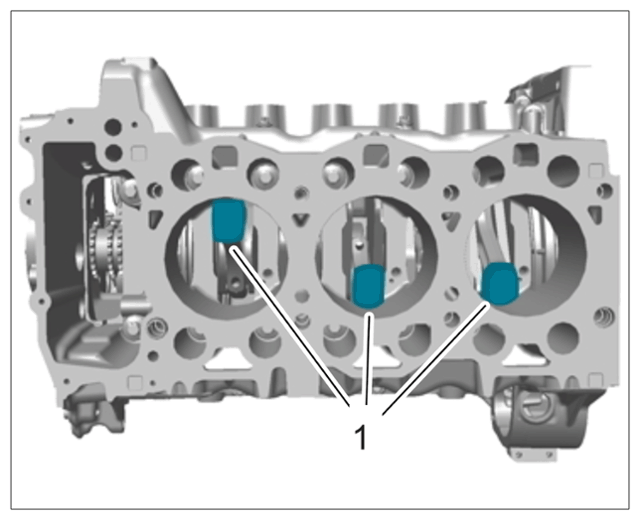

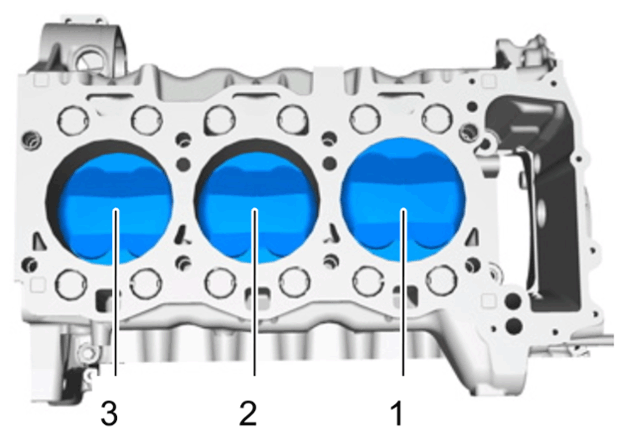

Mark installation position of the pistons -1 to 3- with a touch up stick.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pistons 1 to 3

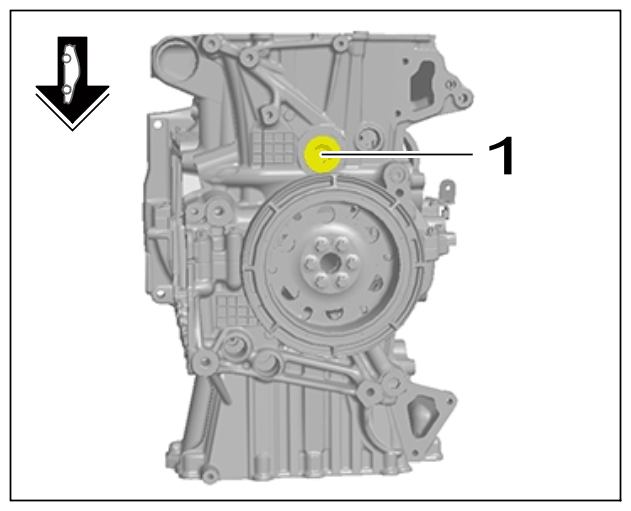

Unscrew screw plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw plug

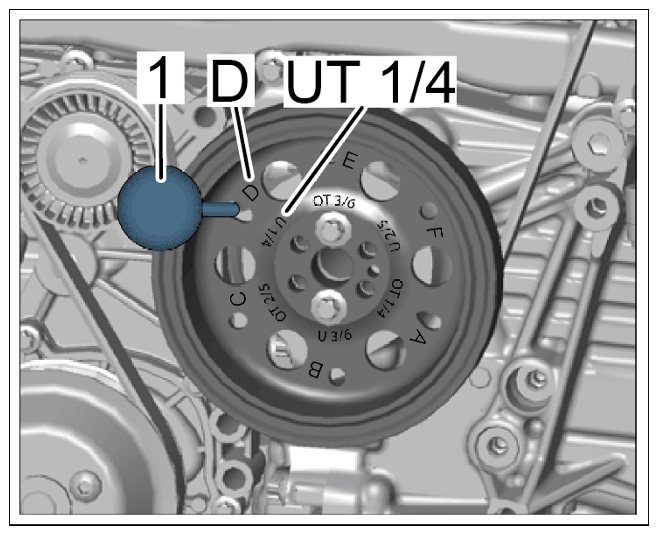

Turn the crankshaft and vibration damper to position -D- bottom dead centre -UT 1/4- and lock at this position using > 9595/1 - locating pin-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vibration damper

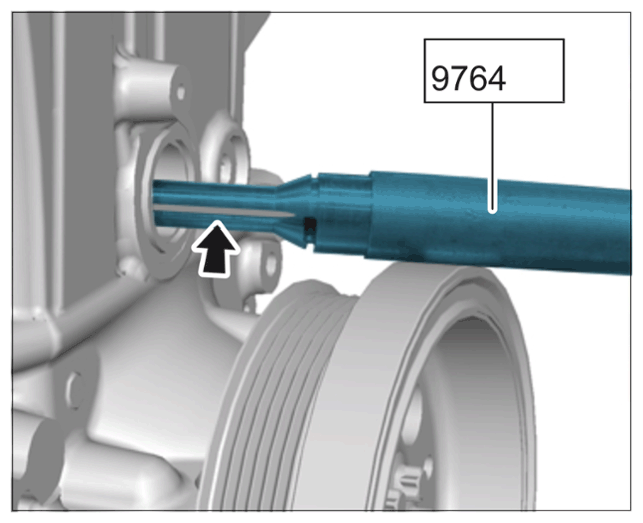

> 9764 - Disassembly tool with groove -arrow- at approx. 9 o'clock position must be pushed through the assembly bore.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Groove position for circlip hook
> 9764 - Disassembly tool must be positioned on the circlip -1- . Then, carefully turn it to the left and right until you feel a certain amount of resistance on the hook.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circlip

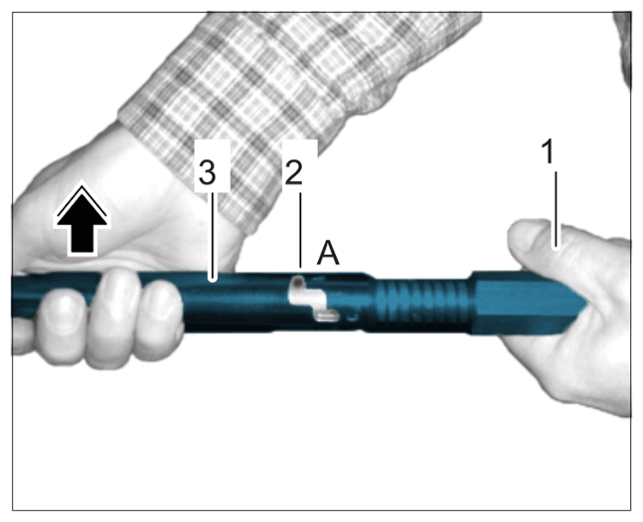

> 9764 - Disassembly tool-1- must be held securely while turning the pipe clockwise until you feel a certain amount of resistance.
The screw -2- moves horizontally to the left from -Position A- in the guide groove.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool 9764 at position A

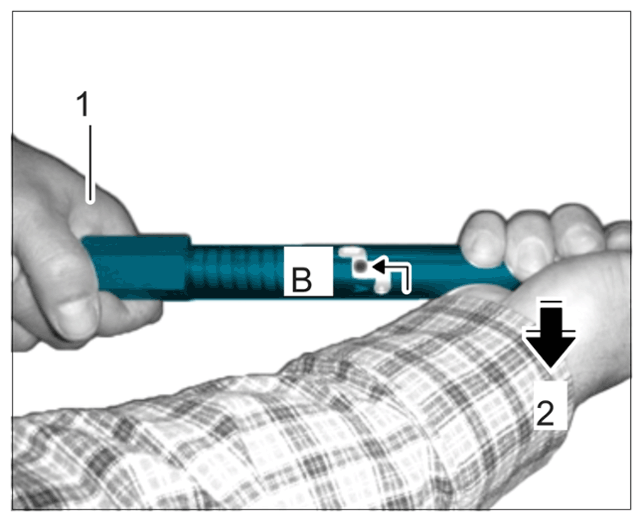

Hold the pipe firmly and keep it pressed slightly against the piston in a clockwise direction -arrow 2- . > 9764 - Disassembly tool-1- must now be pulled slowly until the screw is at position -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool 9764 at position B
> 9764 - Disassembly tool-1- must be held securely while turning the pipe clockwise -arrow 2- until you feel a certain amount of resistance.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool 9764 at stop ahead of position C

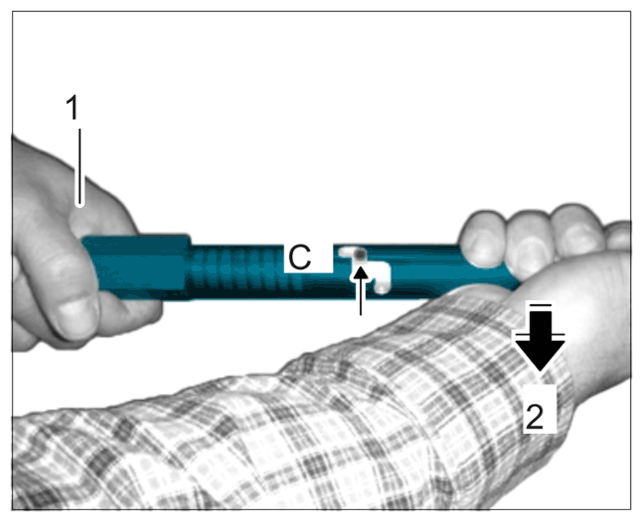

Hold the pipe firmly and press it slightly against the piston. > 9764 - Disassembly tool-1- must now be pulled slowly with spring force until the screw is at position -C- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool 9764 at position C

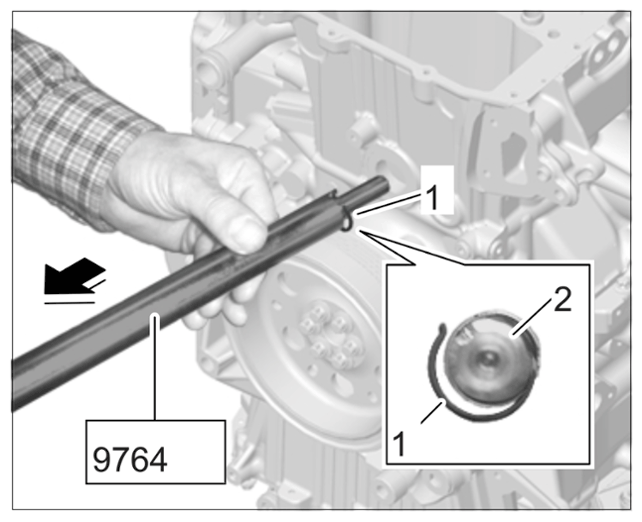

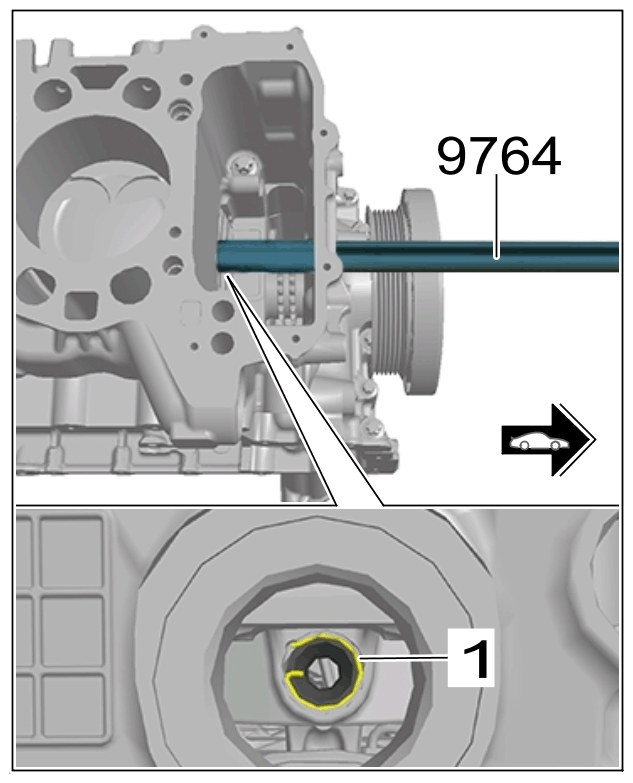

> 9764 - Disassembly tool with circlip -1- must now be pulled slowly out of the crankcase -arrow- . Dispose of the circlip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

9764 Disassembly tool

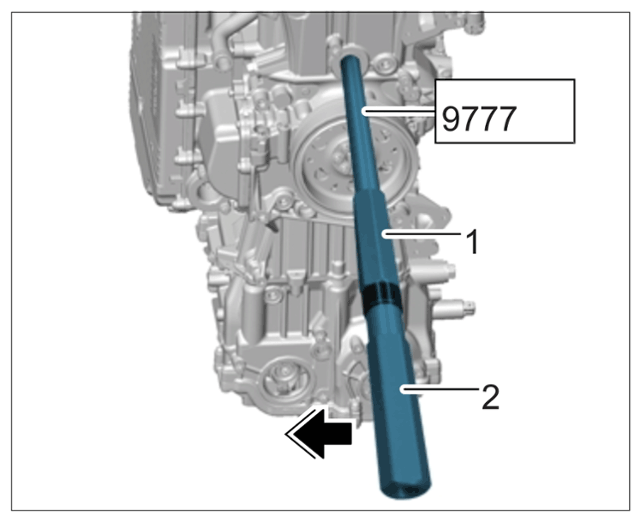

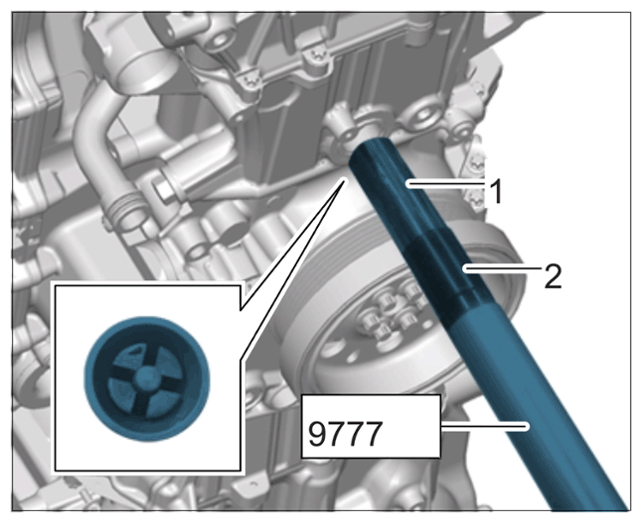

> 9777 - Disassembly tool must be pushed as far as it will go into the piston pin.
Hold middle knob -1- securely and turn the knob -2- anti-clockwise as far as it will go -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Piston pin on disassembly tool 9777

Pull out piston pin -1- using interchangeable insert -2- .

Inset shows the tensioned piston pin.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Piston pin

Turn the rear knob clockwise until the piston pin can be removed.
Push the > 9783 - assembly aid into the cylinder bore from the oil pan side and knock out the piston (by tapping lightly on the grip of the > 9783 - assembly aid with the ball of your hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly aid 9795 for connecting rods

Match the pistons to the correct piston pin immediately after removal and place them where they will not be confused.

Push the > 9795 - assembly aid-1- onto the connecting rod.

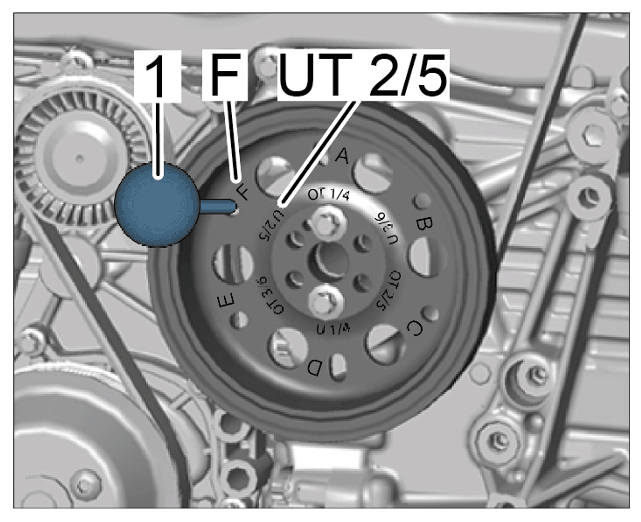

Turn the crankshaft on the vibration damper to position -F- bottom dead centre -UT2/5- and lock at this position using > 9595/1 - location g pin-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vibration damper
Repeat steps 5 to 13 for removing piston 2.

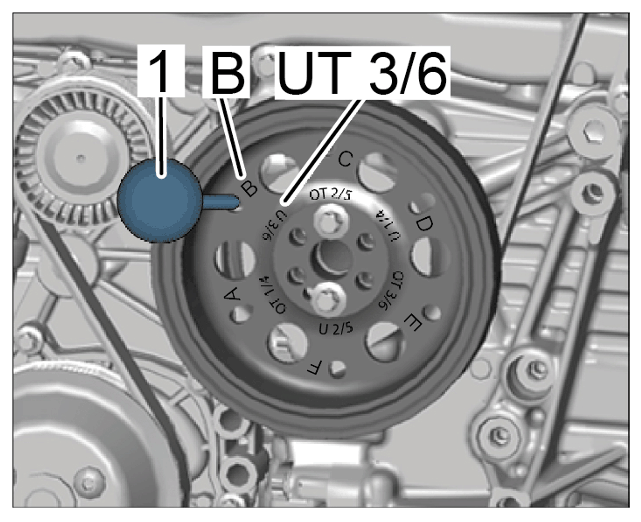

Turn the crankshaft on the vibration damper to position -B - bottom dead centre -UT3/6- and lock at this position using > 9595/1 - location g pin-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vibration damper
Repeat steps 5 to 13 for removing piston 3.
If the pistons are to be re-installed:
Check piston for wear.
