Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cylinder heads.

    157019 REMOVING AND INSTALLING CYLINDER HEAD

  2. Draw out displacement bodies on cylinder bank -1-  .
    G15486351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1

  3. Remove oil pan (upper part).

    175019 REMOVING AND INSTALLING OIL PAN (UPPER PART)

  4. Remove oil pump.

    172019 REMOVING AND INSTALLING OIL PUMP

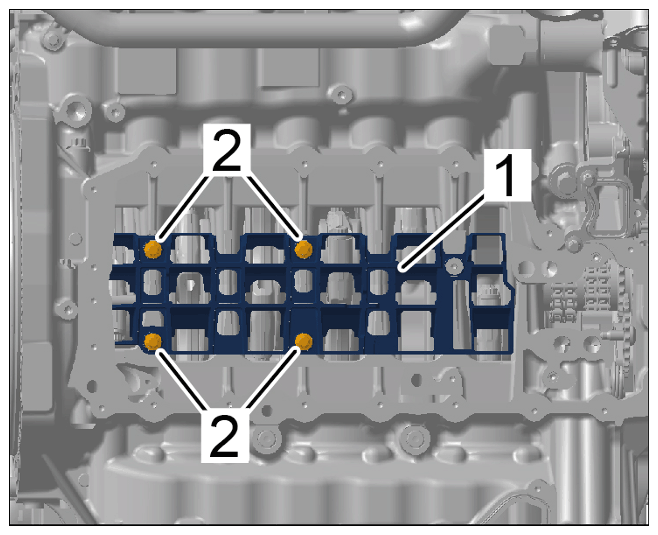

  5. Unscrew oil windage tray screws -2-  and remove oil windage tray -1-  .
    G15486352Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil plate

  6. Turn the engine on the assembly support so that cylinder bank 1 is facing upwards.
