Installing Pistons - Cylinders 4-6

Information

• The parting surface between the connecting rod and connecting rod cap is broken during the manufacturing process.
• Assign connecting rod cap to the relevant connecting rod immediately after removal.
• Also check the four-digit matching number.
• Replace connecting rod bolts.
• Replace connecting rod bearings.

1. Turn crankshaft into position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

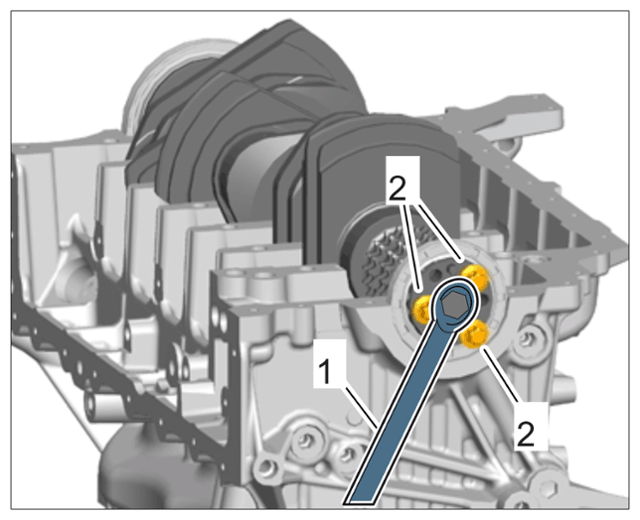

   Turning crankshaft (without vibration damper)

   Screw in screws -2-  by hand.

   > 9773 - Fit turning device-1-  and turn the crankshaft so that connecting-rod bearing covers are accessible.

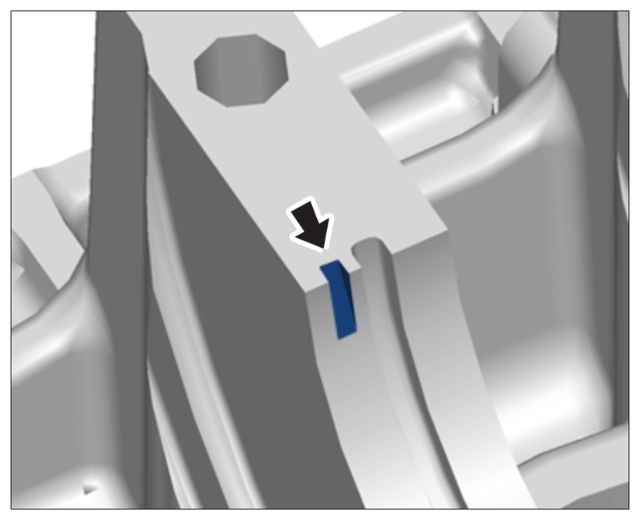

2. Check that the retaining lugs -Arrow-  are seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining lugs for connecting-rod bearings

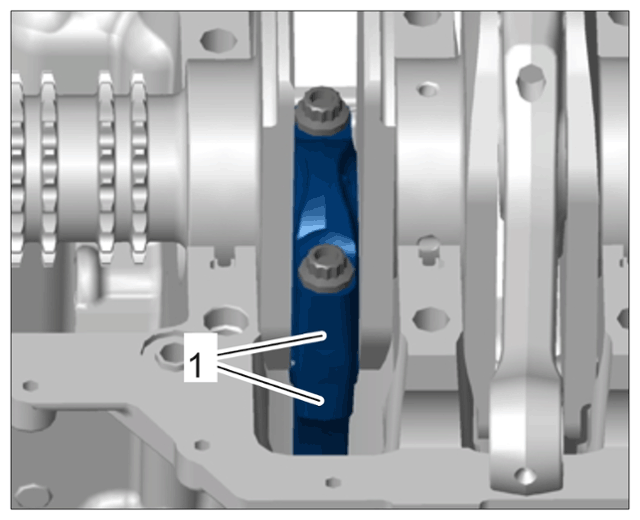

3. Check allocation of connecting rod to connecting rod cap (matching number -1-  and data matrix code).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting rod on crankshaft (marking)

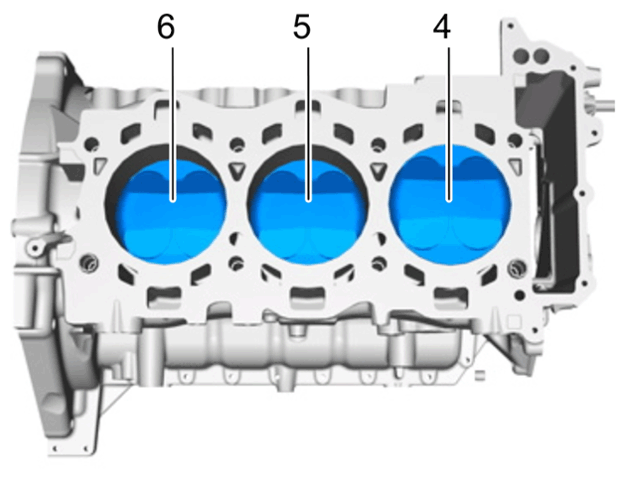

4. Install pistons -4 to 6-  with connecting rod.

   Insert pistons -4 to 6-  into the relevant cylinder bore according to the inscription.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking on pistons in installation position

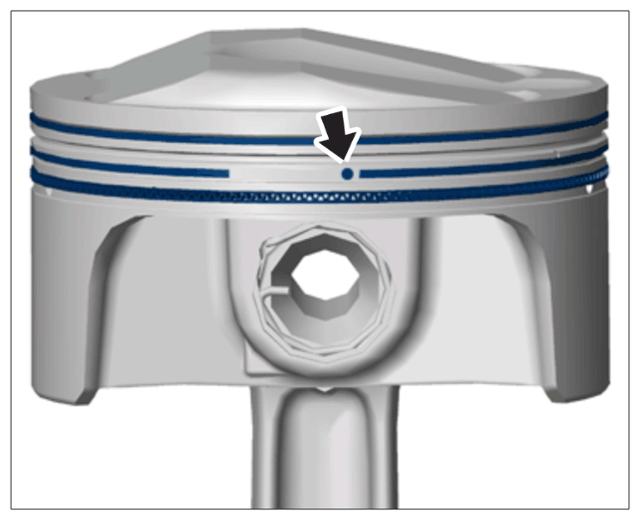

   Align piston rings and re-position ring gaps by 120°. Check twist lock -Arrow-  on the second ring groove.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Twist lock on second piston ring

   Coat pistons and tools with new engine oil.

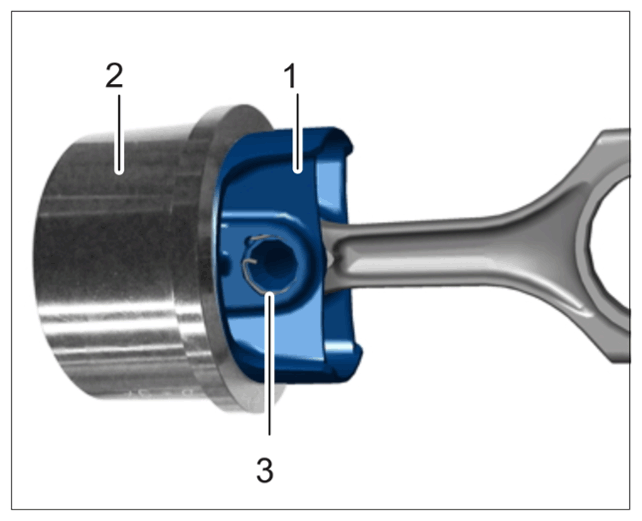

   Insert piston -1-  as far as required into the > 9784/2 - assembly funnel-2-  until the lower edge of the piston is flush with the surface of the tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower edge of piston flush with contact surface of assembly funnel

   1	Piston
   2	> 9784/2 - Funnel
   3	Piston-pin circlip

   Information

   • If pistons are to be replaced, only one weight group is permitted for all pistons.

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

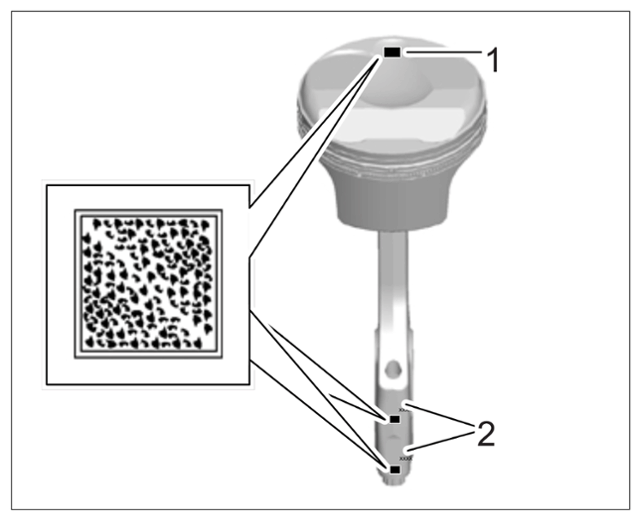

   Markings on connecting rods and pistons

   • Check installation position of pistons.
   • The matching number -2- and data matrix code -inset- on the correctly installed connecting rod must be facing the exhaust side.
   • The data matrix code -1- on the piston must be facing the intake side.

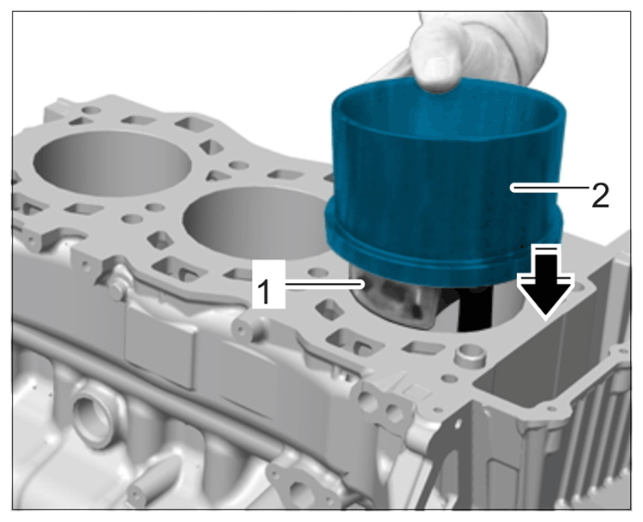

   Guide connecting rod and piston -1-  into the cylinder bore and position > 9784/2 - funnel-2-  on the crankcase -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Piston in cylinder bore

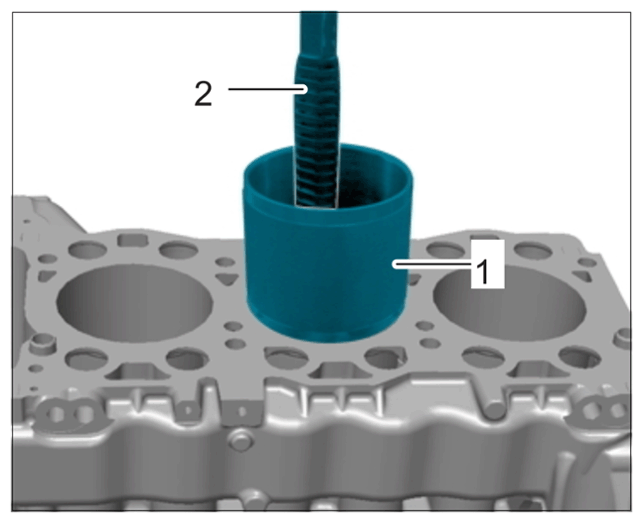

   Hold the > 9784/2 - funnel-1-  securely and press the piston into the cylinder bore immediately using the -2-  handle of a hammer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Piston

   > 9784/2 - Remove funnel-1-  .

5. Check that the piston is installed at the correct position.

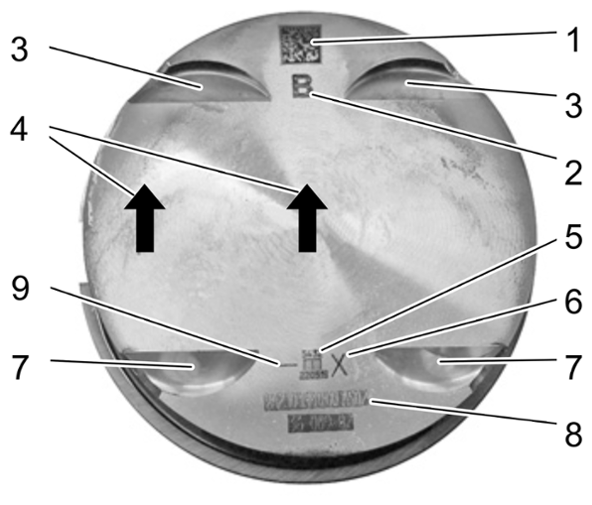

   The arrows -4-  on new pistons must be facing the intake side.

   In the case of re-installed pistons, the data matrix code -1-  and the larger valve recesses -3-  must be facing the intake side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking pistons

   1	Data matrix code
   2	Classification letter for piston assembly
   3	Valve recesses on intake valves (larger]
   4	Arrow must be facing the intake side on new pistons; centred or side position.
   5	Manufacturer's logo
   6	Dimensional group (only dimensional group X available as replacement)
   7	Valve recesses on outlet valves
   8	Porsche part number
   9	Weight group

6. Secure the correct connecting rod cap with new screws.
7. Repeat these steps for pistons 5 and 6.

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting rod on crankshaft

   • The matching number -1- and data matrix code are facing the exhaust side.
8. Pre-fit connecting rods 1 to 3 with new bearings and the relevant connecting rod caps and new screws on the crankshaft.

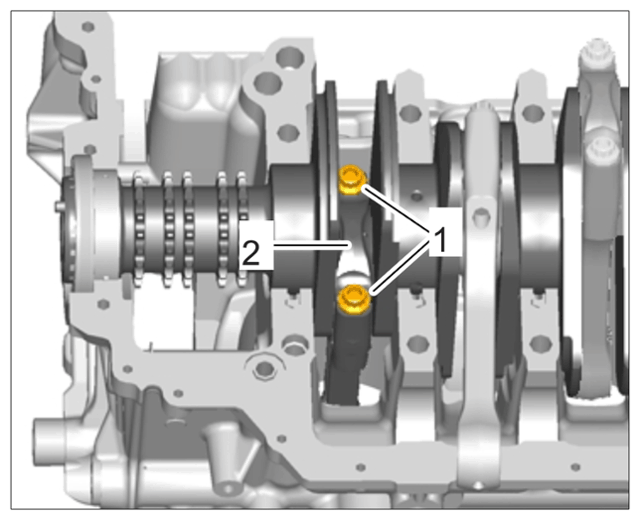

9. Tighten new screws -1-  for connecting rod caps -2-  .

   Step 1: > Initial tightening 5 Nm (3.5 ftlb.)

   Step 2: > Subsequent tightening torque 16 Nm (12 ftlb.)

   Step 3: > Tightening torque 20 Nm (15 ftlb.)

   Step 4: > Torque angle+ 80°

   Step 5: > Loosen screws - 360°

   Step 6: > Initial tightening 5 Nm (3.5 ftlb.)

   Step 7: > Subsequent tightening torque 16 Nm (12 ftlb.)

   Step 8: > Tightening torque 20 Nm (15 ftlb.)

   Step 9: > Torque angle+ 80°+/-3°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting rod cap screws

10. To protect the cylinder linings, fit connecting rods 1 to 3 using > 9795 - assembly aid  .
11. Remove > 9773 - turning device  .
