Installing Rear Wheel Bearing

WARNING: This page is about a different variant/trim than selected.

WARNING: Mechanical, hydraulic or pneumatic press

Risk of squashing
→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

The pictures shown in this document may differ from the original.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

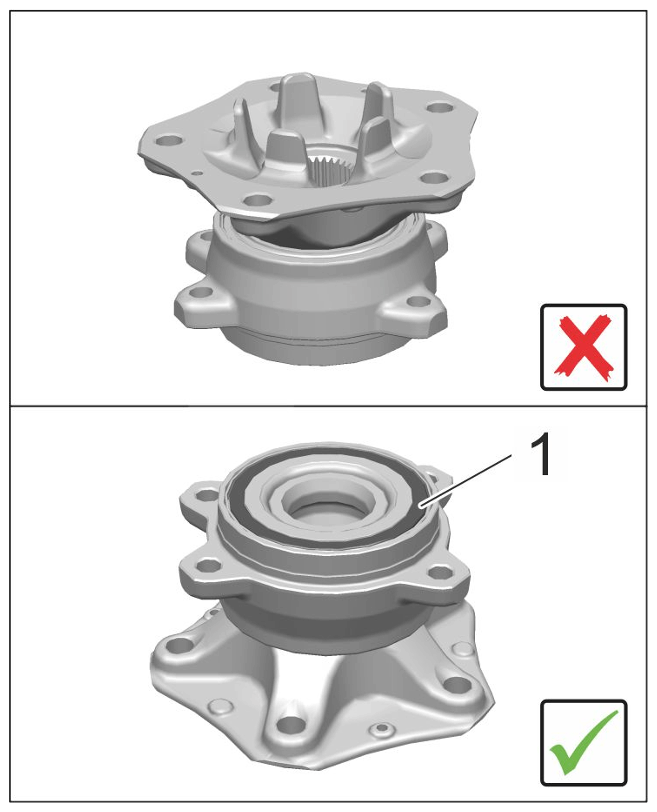

Wheel bearing unit

The wheel bearing has a magnetised multipole seal -1-, which acts as a pulse sender for the speed sensor.
The multiple-pole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not damage the multipole seal and do not come into contact with magnetic objects (e.g. magnetised screwdriver, magnet).

Press wheel hub into the wheel bearing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

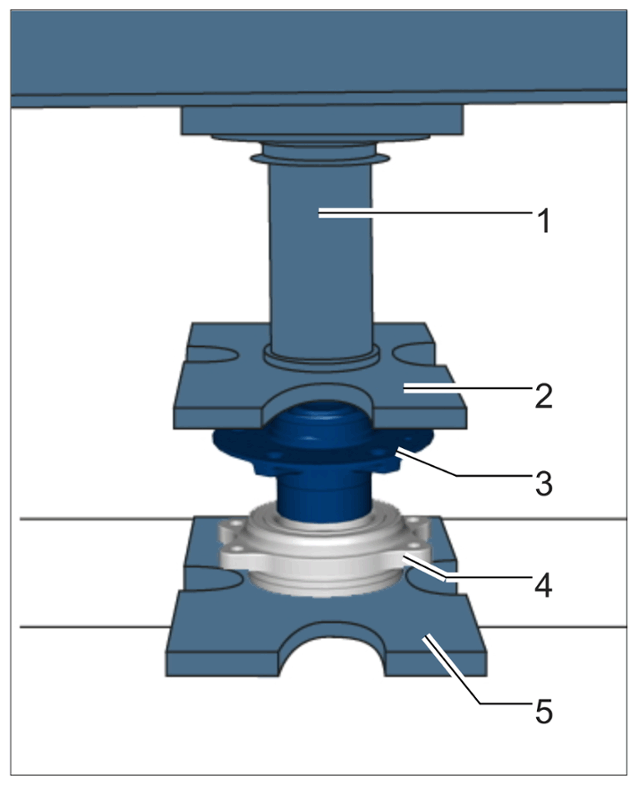

Pressing wheel hub into wheel bearing

1.1 Fit special tools as shown in the illustration > Pressing wheel hub into wheel bearing .
1.2 Press wheel hub into the wheel bearing.
