Removing Wheel Bearing Housing

WARNING: This page is about a different variant/trim than selected.
  1. Remove brake disc cover plate -3-  .

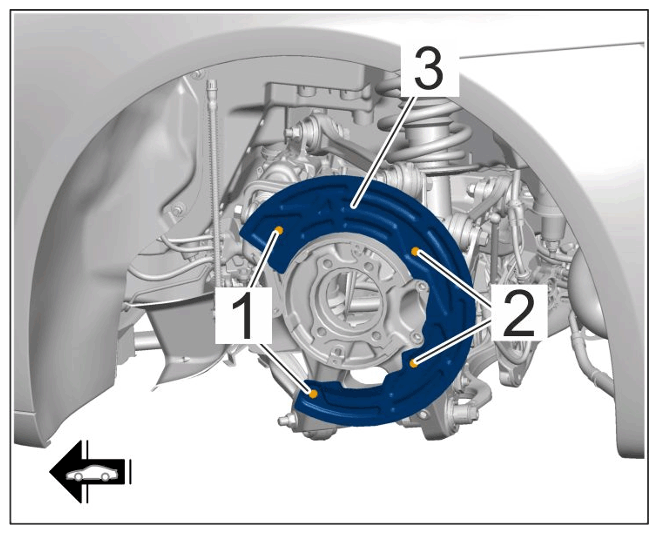

    G15522047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake disc cover plate

    1. 1.1 Unscrew and remove screws -1 and 2-  .
  2. Remove wiring harness holder -1-  .

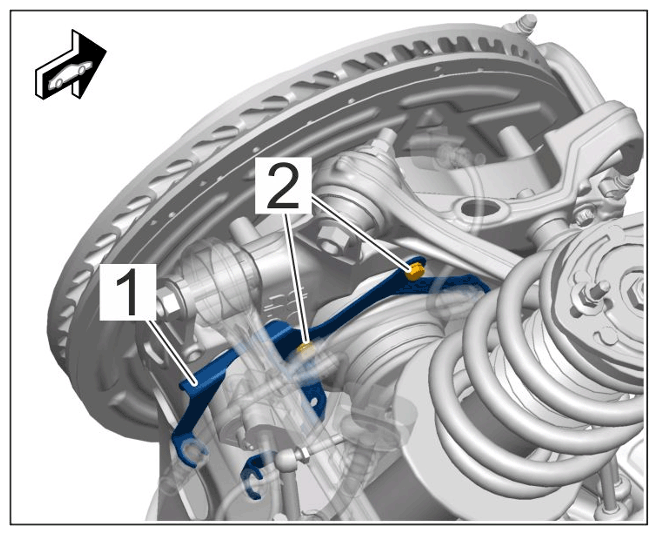

    G15522048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wiring harness holder

    1. 2.1 Unscrew and remove screws -2-  .
  3. Remove connecting link -1-  from wheel bearing housing.
    G15522049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (conventional)

    G15522050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (PDCC)

    1. 3.1 Conventional connecting link:  Unscrew nut -3-  and counter at the articulated bolt on the connecting link.
    2. 3.2 PDCC connecting link:  Loosen threaded joint -3-  .
  4. Support wheel bearing housing using > VAS 6931 - Transmission and Engine Jack.
  5. Remove trailing arm -1-  from wheel bearing housing.
    G15522051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 5.1 Loosen threaded joint -2-  .
  6. Remove control arm -1-  from the wheel bearing housing.

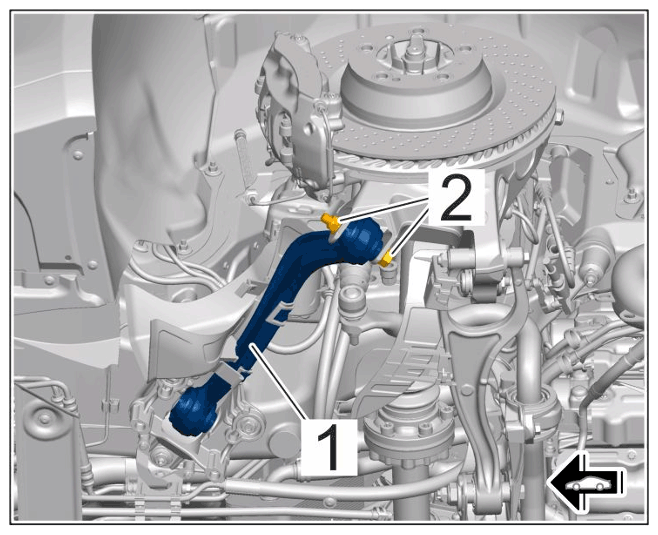

    G15522052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on wheel bearing housing

    1. 6.1 Loosen threaded joint -2-  .
  7. Remove rear spring strut -1-  from the wheel bearing housing.

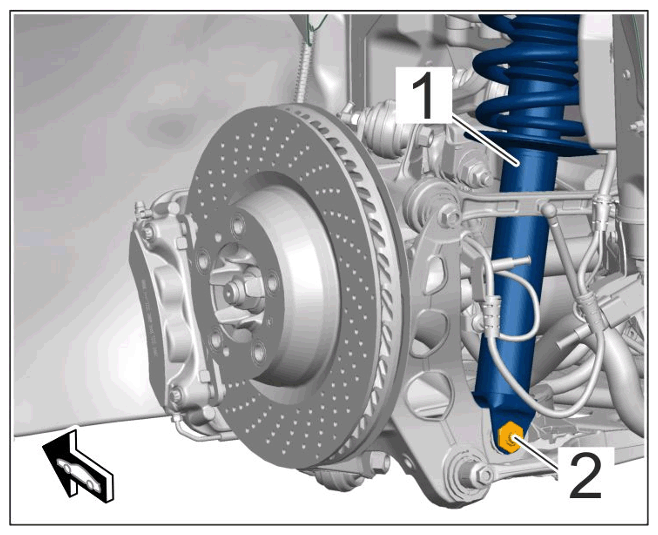

    G15522053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on wheel bearing housing

    1. 7.1 Loosen threaded joint -2-  .
  8. Remove tie rod/servo motor for rear axle steering -1-  from the wheel bearing housing.

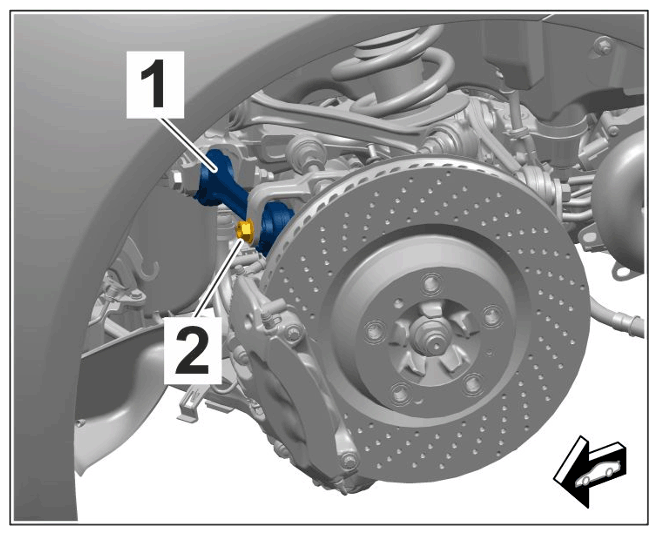

    G15522054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on wheel bearing housing

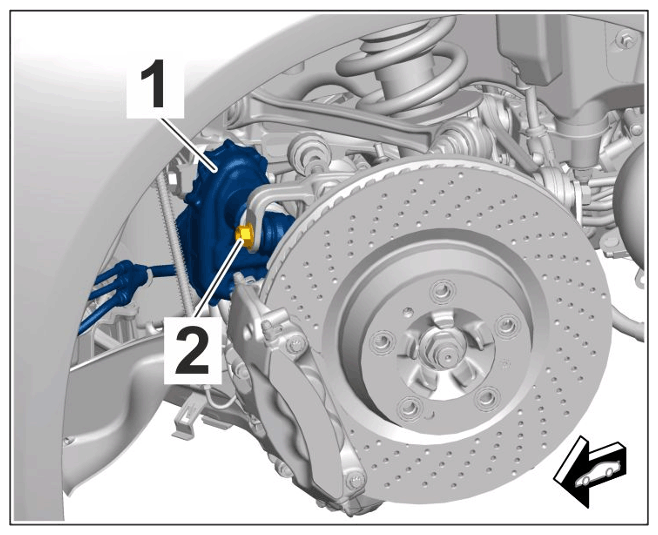

    G15522055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear axle steering on wheel bearing housing

    1. 8.1 Unscrew screw -2-  .
  9. Remove upper control arm (front) -1-  from the wheel bearing housing.

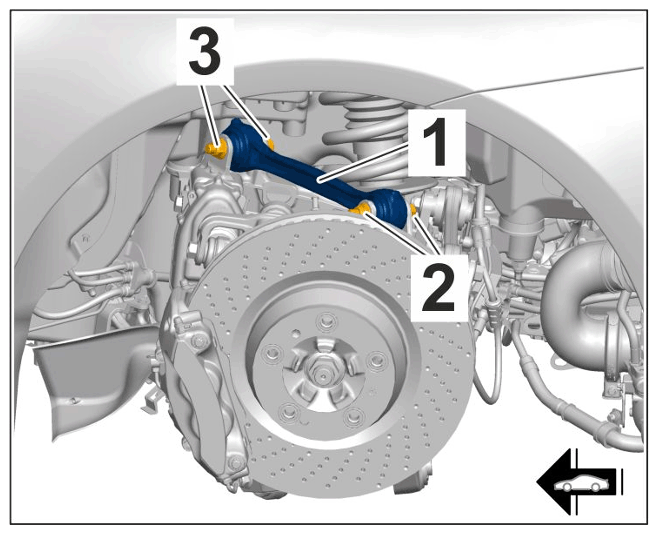

    G15522056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (front)

    1. 9.1 Loosen threaded joint -2-  .
  10. Remove (rear) upper control arm -1-  from the wheel bearing housing.

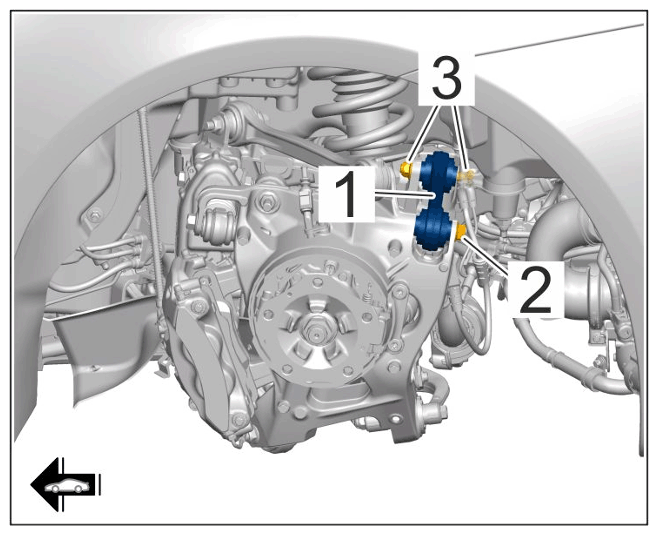

    G15522057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (rear)

    1. 10.1 Unscrew screw -2-  on the wheel bearing housing.
