Removing Oil Separator

WARNING: This page is about a different variant/trim than selected.
  1. Unclip wiring harness for starter and generator.
  2. Remove oil separator -1-  .

    Release and pull off vent line -2-  by pressing the locking ring.

    Unscrew M6 screws -3-  .

    Pull oil separator out of the oil-water heat exchanger bracket.

    Cover the take-up bores.

    Replace O-rings.

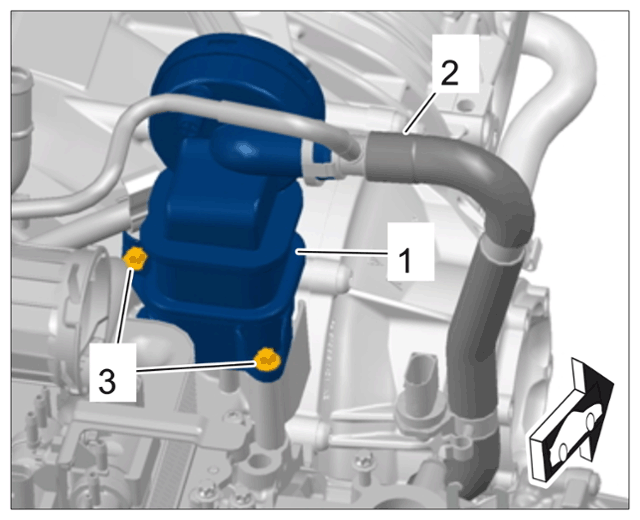

    G15486330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil separator on bracket

  3. Remove all traces of oil and clean the take-up bores.
