Removing Engine Mounting

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield -1-  .

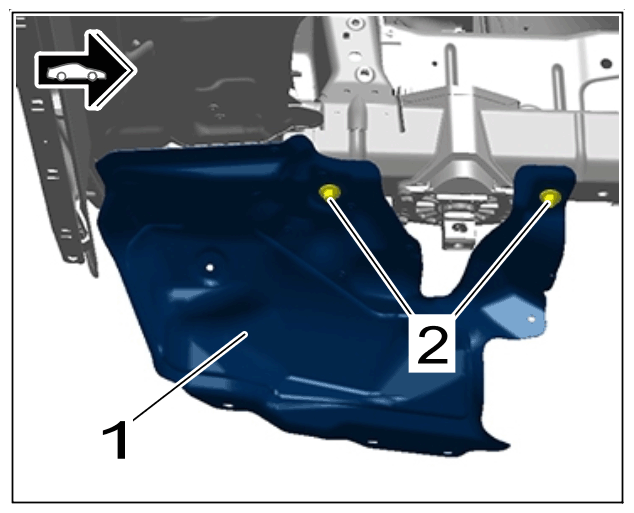

    G15486318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on rear bracket

    Unscrew nuts. -2-  and remove heat shield -1-

  2. Vehicles with PADM:

    Release and disconnect electric plug connection -1-  .

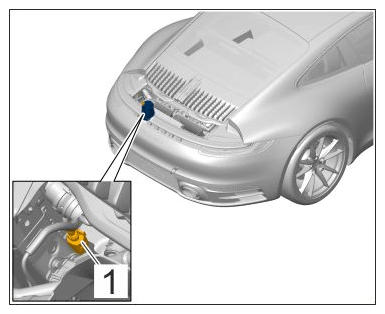

    G15486319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for PADM engine mount (shown on Carrera)

  3. Remove engine mount -1-  .

    Mark the position of the engine mount -1-  on both sides of the bodyshell -Arrow-  .

    Unscrew screws -2-  and remove engine mount -1-  .

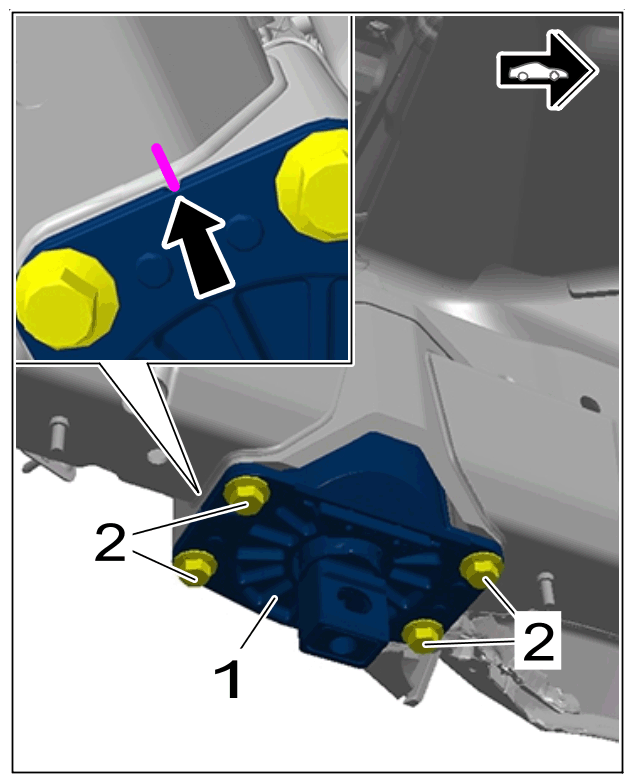

    G15486320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine mount
