Installing Engine Mounting

WARNING: This page is about a different variant/trim than selected.

Install engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount

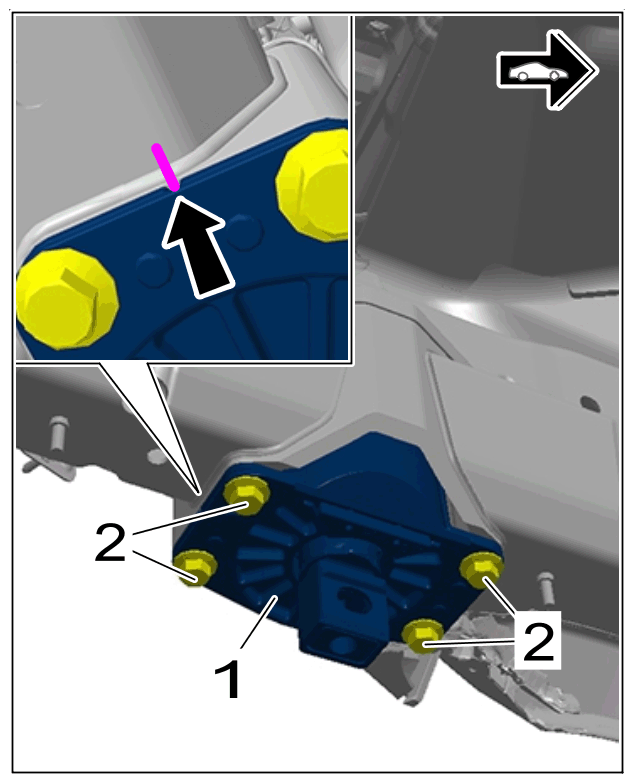

Position engine mount -1- .

Screw in screws -2- by hand.

Align engine mount -1- according to the marking.

Tighten screws -2- .

> Initial tightening 16 Nm (12 ftlb.)

> Final tightening + 30°

Information

If caps are not yet fitted, fit new caps on both engine mounts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

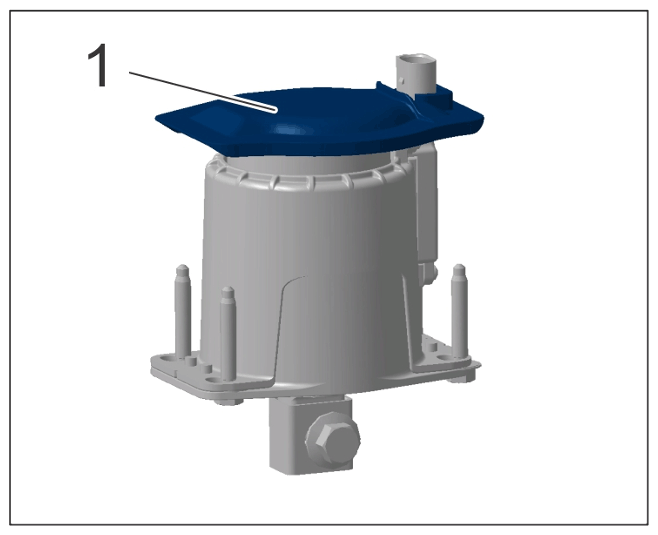

Cap on engine mount
Vehicles with PADM:
Connect and lock electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

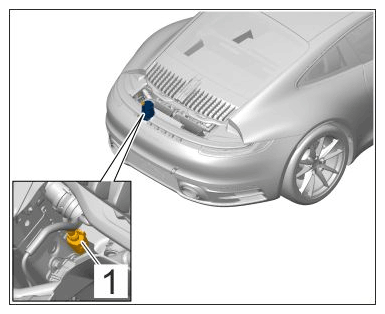

Electric plug connection for PADM engine mount (shown on Carrera)
Install heat shield -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

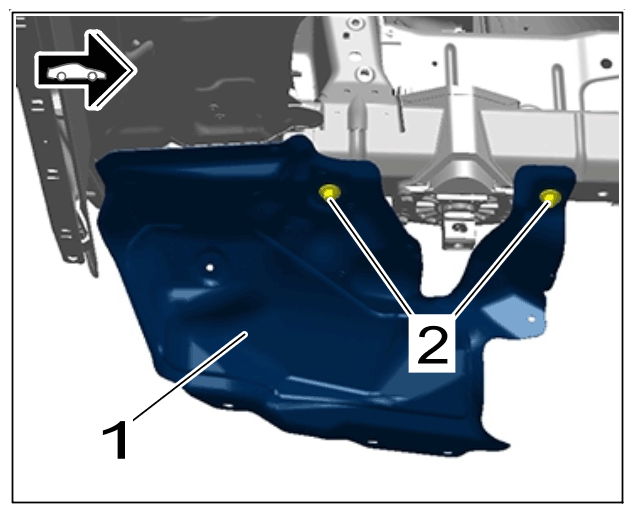

Heat shield on rear bracket

Position heat shield -1- .

Fit and tighten nuts -2- .

> Tightening torque 2.5 Nm (1.75 ftlb.)
