Subsequent Work
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.
Information
- Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
Information
- Always replace seals and O-rings.
- Coat all O-rings and sealing surfaces with a light coating of Vaseline to prevent damage to the O-rings.
- Lubricate all bearing locations with a light coating of engine oil (unless a different procedure is specified).
Information
- The tightening torques for the engine are listed in the following documents and must be used in accordance with these specifications.
- Install coolant pump.

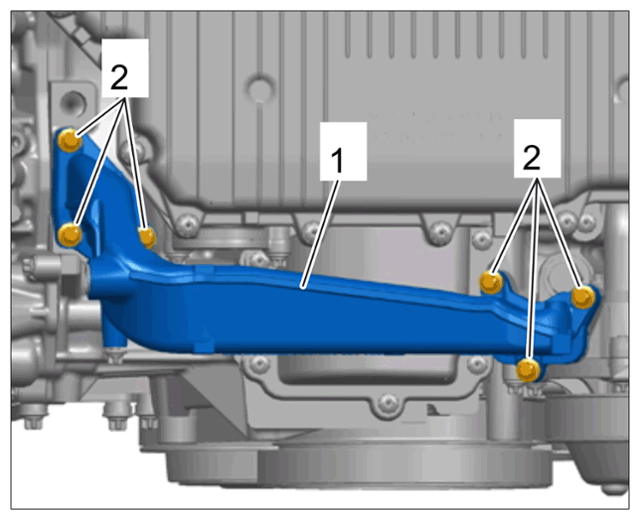

- Install lower coolant guide -1-.
Fit lower coolant guide -1- .
Tighten screws -2- .
> Tightening torque 13 Nm (9.5 ftlb.)
Lower coolant guide

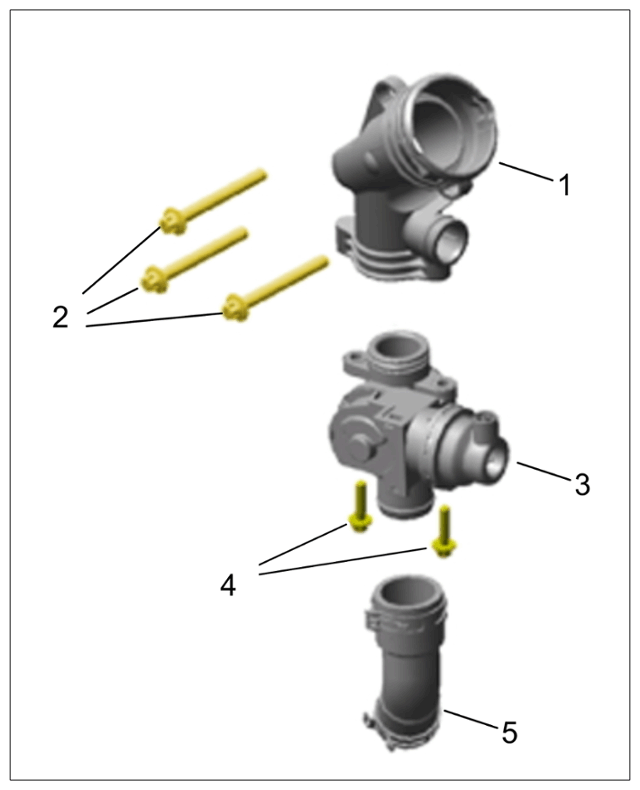

- Install coolant regulator housing.

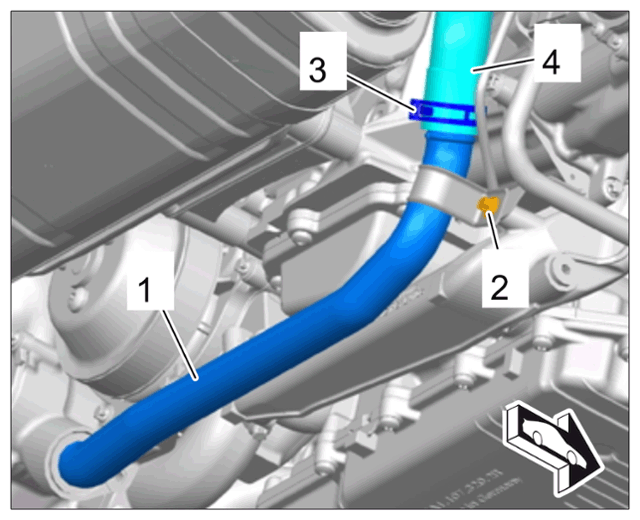

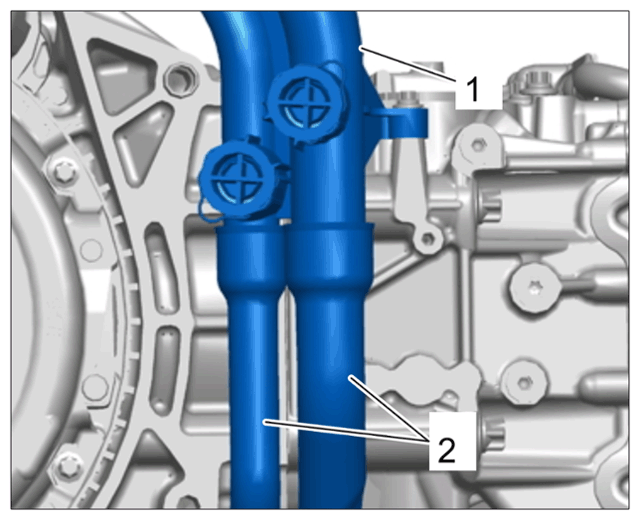

- Remove coolant pipe -1-
for the coolant regulator housing.
Fit coolant pipe -1- with new O-rings for the coolant regulator housing.
Screw in and tighten screw -2- .
> Tightening torque 13 Nm (9.5 ftlb.)
Remove coolant pipe for the coolant regulator housing
- Installing solenoid valve for valve lift adjustment.
155519 REMOVE AND INSTALL SOLENOID VALVE FOR VALVE LIFT ADJUSTMENT
- Install cylinder heads on the right and left.
- Install camshafts.
150520 REMOVING AND INSTALLING CAMSHAFT ACTUATORS (SET WITH CONTROLS)
- Install cylinder head cover.
- Install ignition coils.
- Install knock sensor.
- Install oil cooler bracket.
- If the oil cooler was removed:
Install oil cooler with coolant hoses.
174019 REMOVE AND INSTALL OIL COOLER (OIL/WATER HEAT EXCHANGER)
- Install coolant distributor housing.
- Install belt tensioner damper.

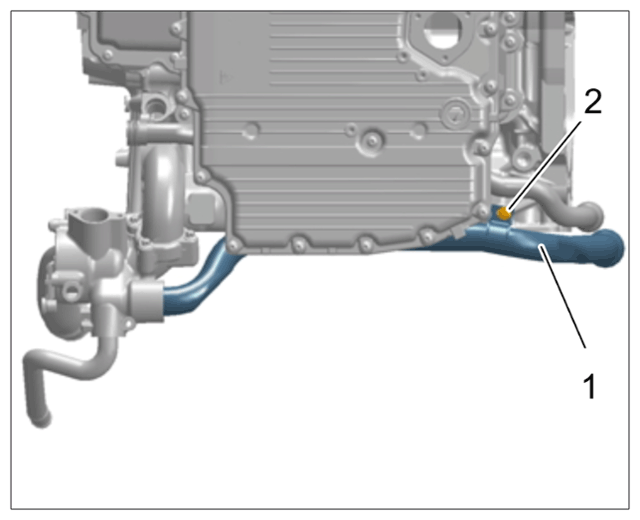

- Install lower coolant pipe -1-
.
Fit lower coolant pipe -1- .
Screw in and tighten screw -2- .
> Tightening torque 13 Nm (9.5 ftlb.)
Lower coolant pipe
- Secure coolant connection piece -1-
.
Screw in and tighten screws -2- .
> Tightening torque 33 Nm (24 ftlb.)
Coolant connection piece with coolant pipe

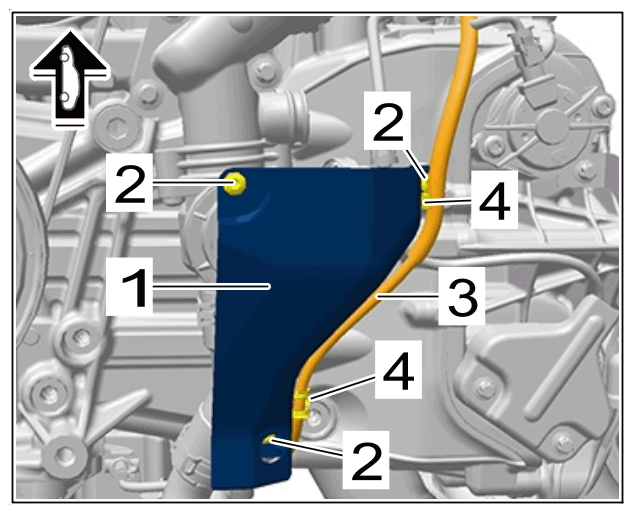

- Install heat shield for coolant connection piece -1-
.
Fit heat shield for coolant connection piece -1- .
Screw in and tighten screws -2- .
> Tightening torque 10 Nm (7.5 ftlb.)
Position electric line -3- and clip in clip -4- on cross member.
Heat shield on coolant connection piece
- Install starter.
- Install the compressor.
Refer to WM, 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

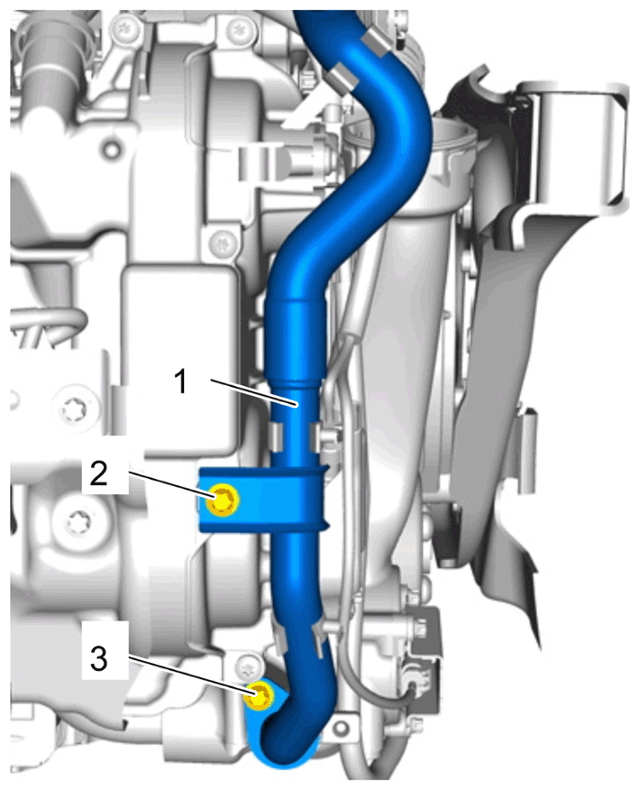

- Install coolant supply pipe -1-
.
Fit coolant supply pipe -1- with new O-rings into the coolant regulator housing.
Fit and tighten screw -3- .
> Tightening torque 10 Nm (7.5 ftlb.)
Fitting and tightening screw -2- on coolant line holder.
> Tightening torque 13 Nm (9.5 ftlb.)
Coolant pipe on coolant regulator housing
- Install actuators for camshaft control.
Refer to the appropriate service information.
- Install generator.
- Vehicles with Porsche Dynamic Chassis Control (PDCC): Install hydraulic pump together with pressure and return lines.

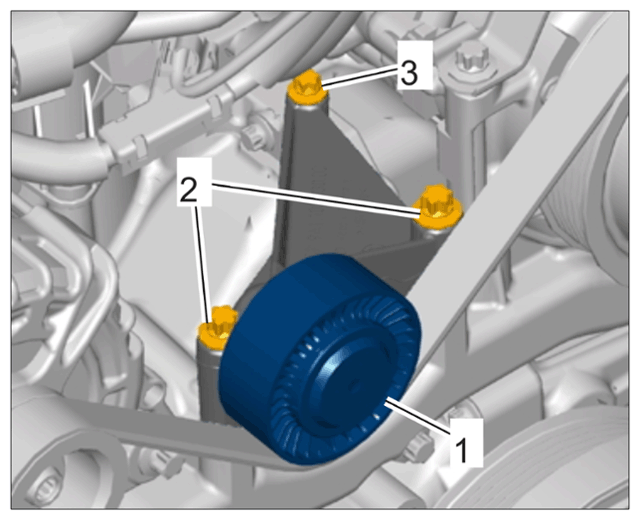

- Vehicles without Porsche Dynamic Chassis Control (PDCC):
Install deflection roller bracket -1- .
Screw in and tighten screws -2- .
> Tightening torque 13 Nm (9.5 ftlb.)
Screw in and tighten screw -3- .
> Tightening torque 23 Nm (17 ftlb.)
Deflection roller bracket
- Install coolant collection unit and coolant lines (on the oil-water heat exchanger).

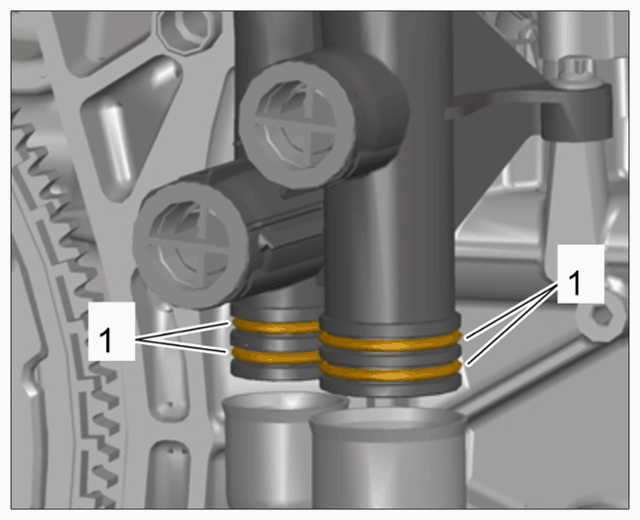

Coat new O-rings -1- with Kluber Gel.
O-rings for coolant collection unit
Insert coolant collection unit -1- into connecting pipes -2- .
Coolant collection unit
Screw in and tighten screws -2- .
> Tightening torque 13 Nm (9.5 ftlb.)
Coolant collection unit

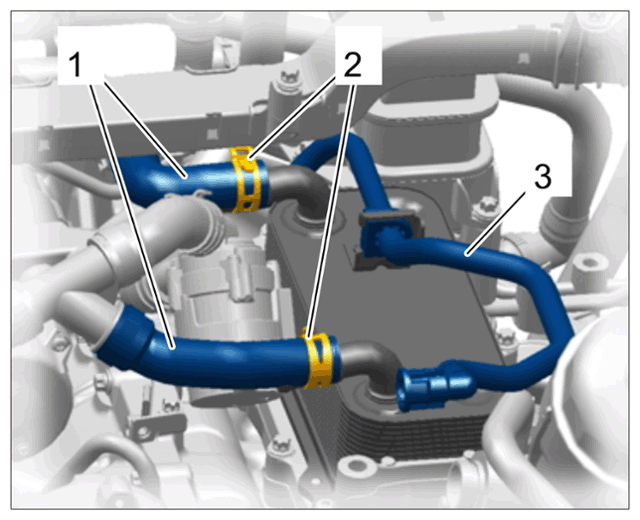

- Secure coolant hoses -1-
on the oil cooler.
Vehicles with Porsche Dynamic Chassis Control (PDCC): Connect hydraulic lines (not shown).
Clip on Crankcase vent line -3-
Connect coolant hoses -1- .
Fasten spring band clamps -2- using > VAS 6890 - spring band clamp pliers .
Coolant lines and positive crankcase ventilation at the oil cooler

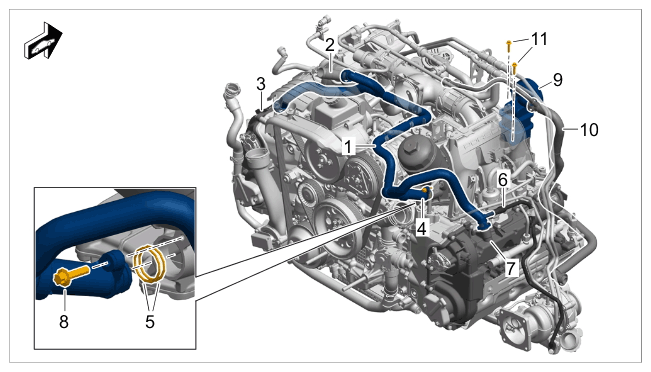

- Crankcase vent line -1-
.
Fit positive crankcase vent line -1- with new O-rings and clip into holder.
Clip in connections -3 to 7- .
Screw in and tighten oil module screw -8- .
> Tightening torque 13 Nm (9.5 ftlb.)
Overview of positive crankcase ventilation
- Install oil filler neck.
Lightly grease new O-ring and fit it.
Fit oil filler neck into the crankcase.
Screw in and tighten screws -1-.
> Tightening torque 13 Nm (9.5 ftlb.)
Oil filler neck
- Install fuel lines.
- Loosen main wire harness in engine compartment.
Refer to WM, 97521900 REMOVING AND INSTALLING ENGINE WIRE HARNESS
- Install intake distributor.

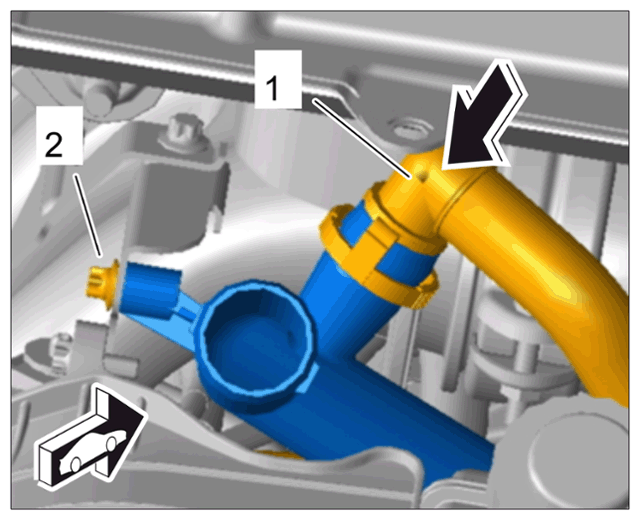

- Secure oil filler neck on the holder at the top.
Fit and tighten screw -2- .
> Tightening torque 10 Nm (7.5 ftlb.)
Fit vent line -1- into the oil filler neck -Arrow- .
Vent line on oil filler neck
- Install high-pressure pumps.
- Install turbocharger together with exhaust manifolds and lines.
- Install valve block with vacuum lines.
- Install drive belt.
- Install drive belt cover and generator cover.
- Install exhaust system.
- Install hall sender.
- Remove engine from engine assembly support.
> 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ENGINE ASSEMBLY SUPPORT
- Install flywheel.
136019 REMOVING AND INSTALLING FLYWHEEL
136019 REMOVING AND INSTALLING FLYWHEEL - PORSCHE DOUBLE-CLUTCH TRANSMISSION
- Mount the transmission.
Refer to WM, 343527 REMOVING AND MOUNTING TRANSMISSION
Refer to WM, 373427 REMOVING AND MOUNTING DOUBLE CLUTCH TRANSMISSION
- Install the engine.
- Fill engine oil.
- Check engine oil level.
