Marking Engine Number

Information

• Do not use steel stamping numbers to mark the engine number on direct fuel injection engines.
• Due to the material composition, the engine number must be engraved using the specified tool.

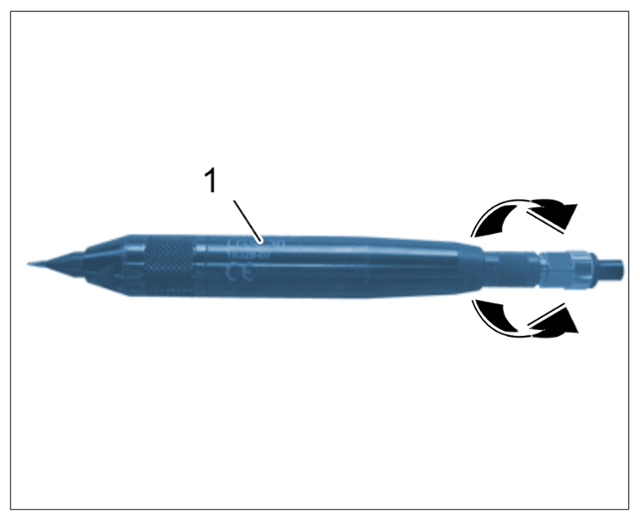

1. > VAS 221 003 - Marker pen-1-  to compressed air supply.

   Turn the adjusting ring -Arrows-  to open or close the compressed air supply.

   First test the tool on a piece of waste material.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking pen no. 197

2. Use the marking pen to engrave the engine number into the crankcase.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

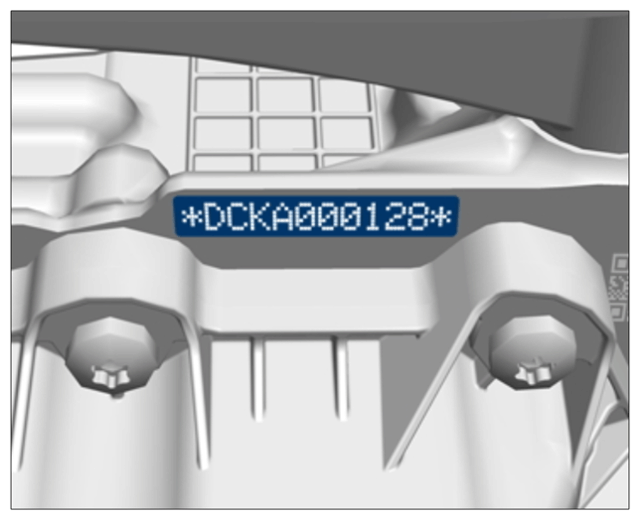

   Example of engine number

   To provide a clear marking, use a 0.5 (5 mm) template!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

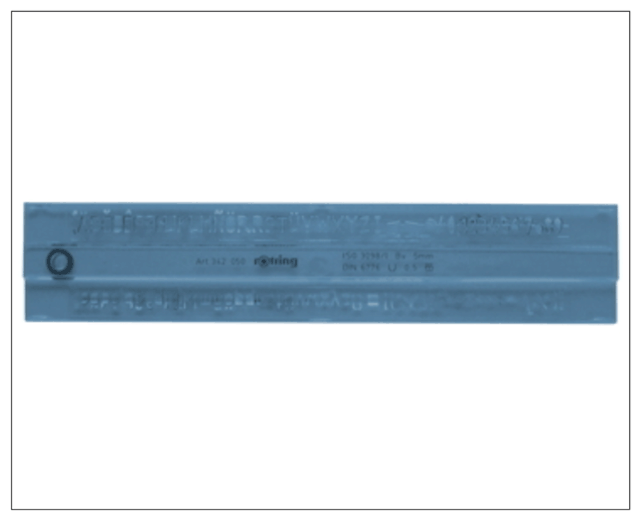

   Example of a template
