Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance 1
Engine oil filler cap (service tray)	M6 screw	Tightening torque	10 Nm (7.5 ftlb.)
Holder for engine control unit DME to body	Collar nut, M6	Tightening torque	9 Nm (6.5 ftlb.)
Screw securing engine mount to bracket	M12 x 1.5 x 70/replace	Initial tightening	70 Nm (52 ftlb.)
Screw securing engine mount to bracket	M12 x 1.5 x70/replace	Final tightening	+ 45°
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 110 hexagon-head bolt/always replace bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 110 hexagon-head bolt, always replace bolts following removal	Final tightening	+ 180°
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Final tightening	+ 180°
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut, always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Intake pipe to turbocharger	V-band clamp - replace	Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.2 (0.1 ftlb.) Nm
Molded hose to turbocharger	Screw-type clamp	Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.2 (0.1 ftlb.) Nm
Holder for pressure lines to control arm bracket (right side of vehicle)	Hexagon roundhead bolt, M6 x 16	Tightening torque	10 (7.5 ftlb.) Nm

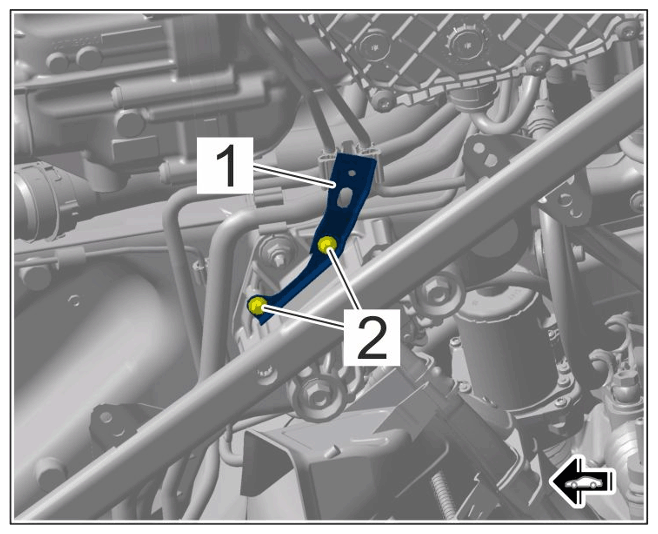

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing holder
Screw for refrigerant line at connection point in engine compartment	Item 2, M8x25 bolt	Tightening torque	14 Nm (10.3 ftlb.)
