Removing Strut (Dome Strut)

WARNING: This page is about a different variant/trim than selected.

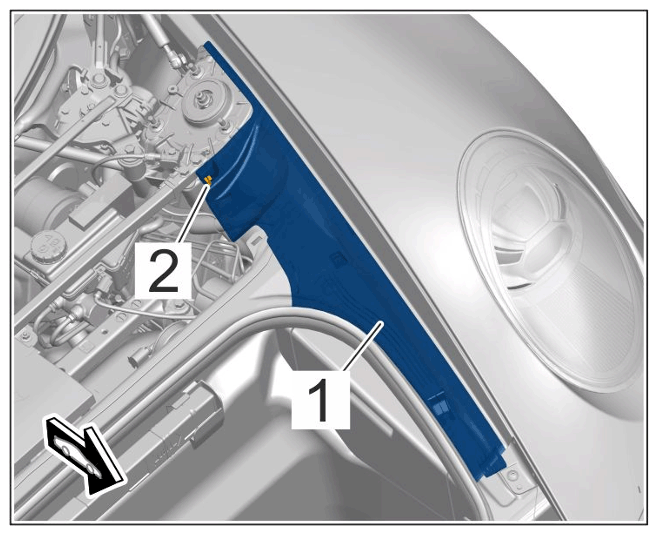

  1. Unclip front trim panel -1-  on both sides of the strut -2-  .
    G15520623Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front trim panel on strut

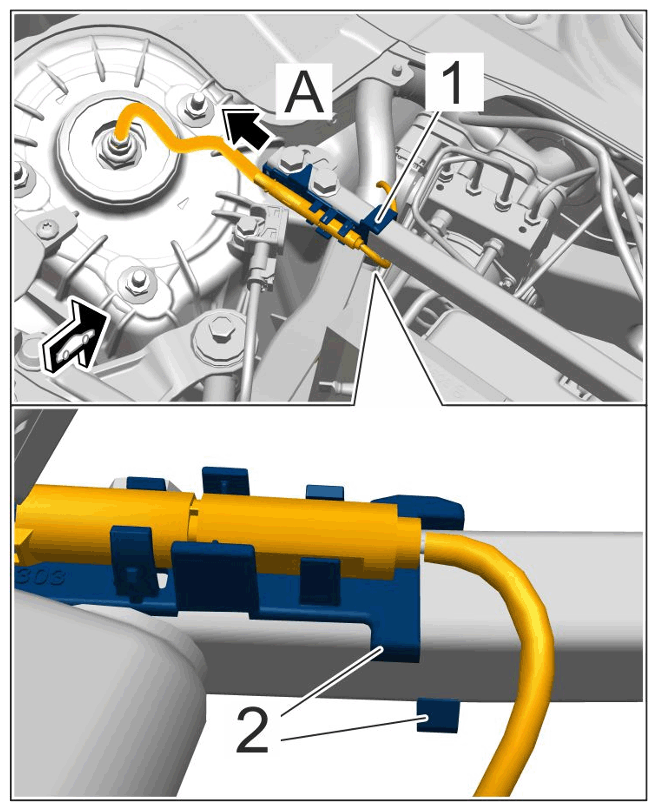

  2. Remove holder -1-  for PASM line on both sides of the vehicle from the strut.
    G15520624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for PASM line

    1. 2.1  Loosen clip connection -2-  .
    2. 2.2  Pull holder off the strut -arrow A-  .

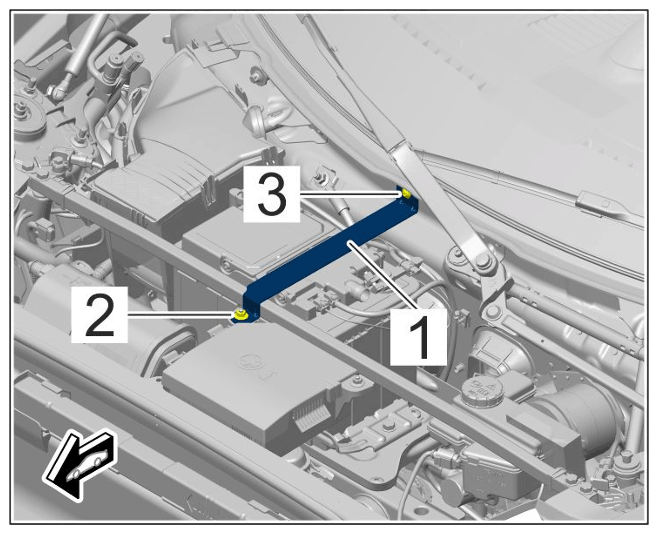

  3. Remove battery clamp -1-  .
    G15520625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for battery clamp

    1. 3.1  Screw off nut -2-  .
    2. 3.2  Unscrew screw -3-  .

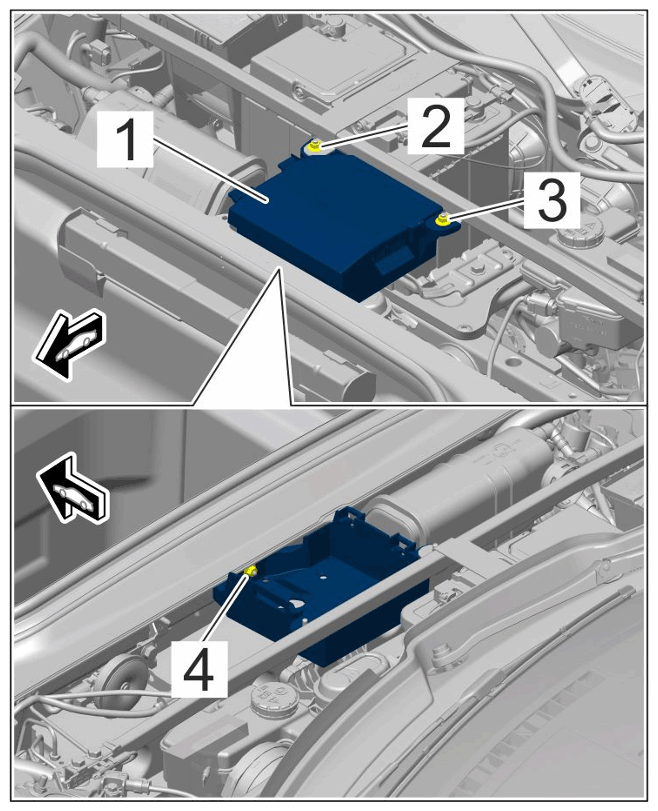

  4. Remove compressor with holder -1-  .
    G15520626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for compressor holder

    1. 4.1  Screw off nut -3-  .
    2. 4.2  Remove cover and remove compressor from holder.
    3. 4.3  Screw off nut -4-  .
    4. 4.4  Remove compressor holder.

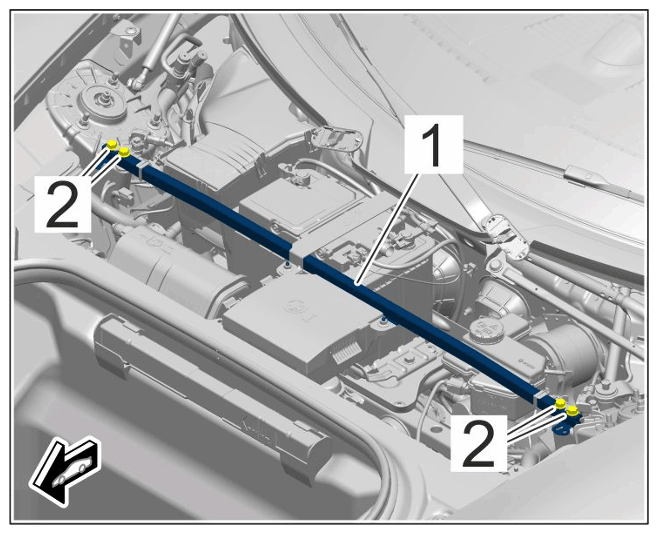

  5. Remove strut -1-  from the body.
    G15520627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

    1. 5.1  Unscrew and remove screws -2-  .
    2. 5.2  Remove strut.
