Installing Strut (Dome Strut)

WARNING: This page is about a different variant/trim than selected.

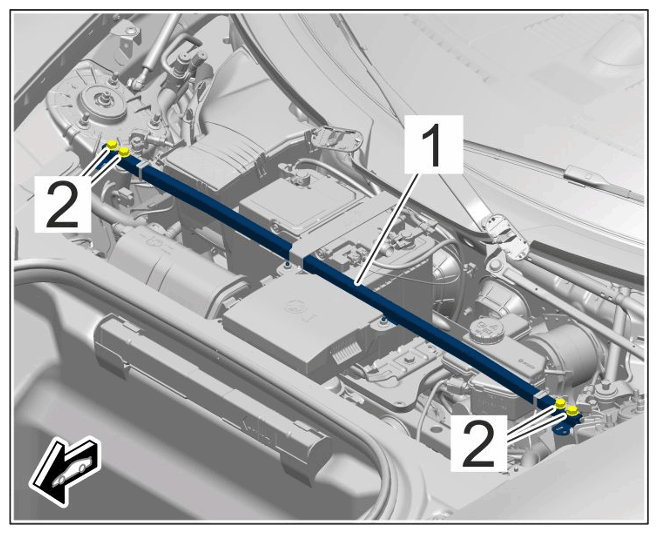

Fit strut -1- on the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut mounting
1. 1.1 Tighten screws -2- . > Tightening torque 20 Nm (15 ftlb.)

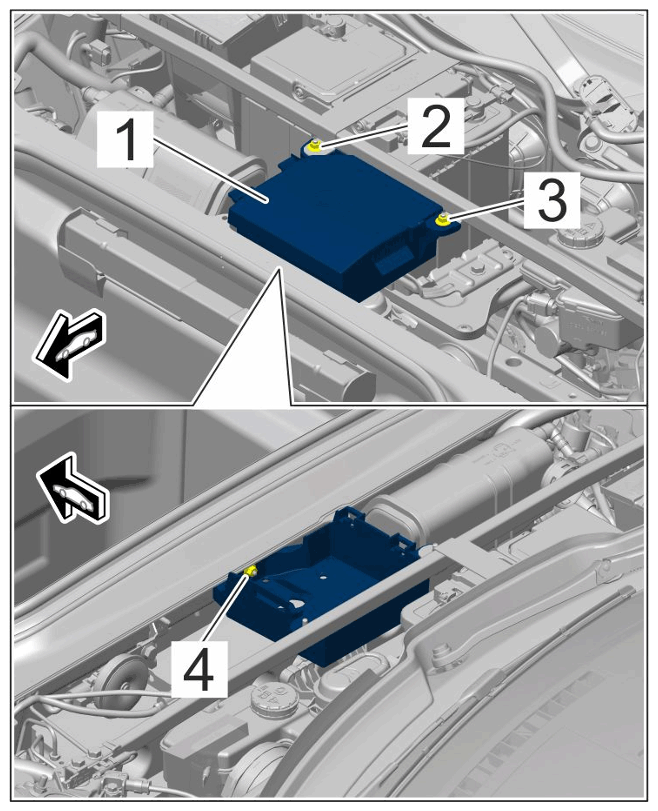

Fit compressor with holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for compressor holder
1. 2.1 Move compressor holder into installation position.
2. 2.2 Tighten nut -4- . > Tightening torque 7 Nm (5.1 ftlb.)
3. 2.3 Insert compressor and close the lid.
4. 2.4 Tighten nut -3- . > Tightening torque 7 Nm (5.1 ftlb.)

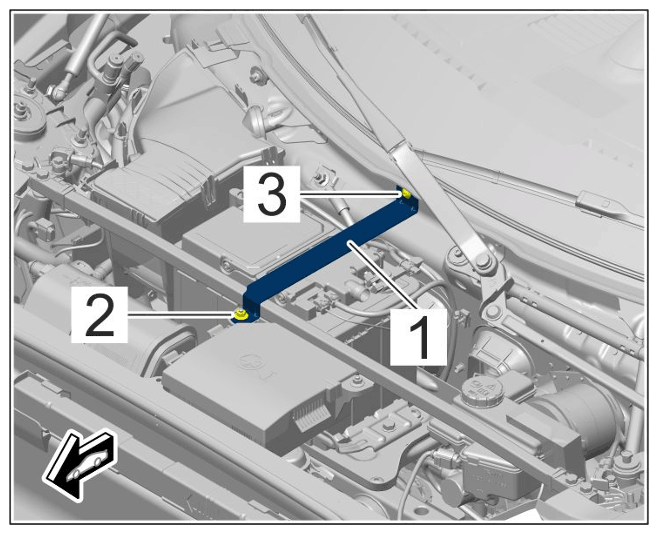

Fit battery clamp -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for battery clamp
1. 3.1 Tighten screw -3- . > Tightening torque 9.7 Nm (7.5 ftlb.)
2. 3.2 Tighten nut -2- . > Tightening torque 7 Nm (5.1 ftlb.)

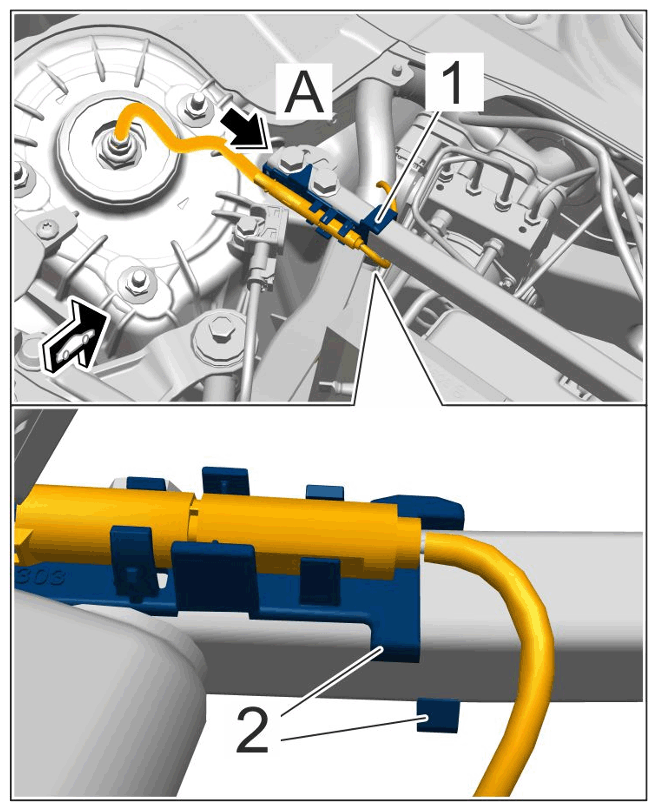

Fit holder -1- for PASM line on both sides of the vehicle on the strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for PASM line
1. 4.1 Fit holder on strut -arrow A- .
2. 4.2 Secure clip connection -2- .

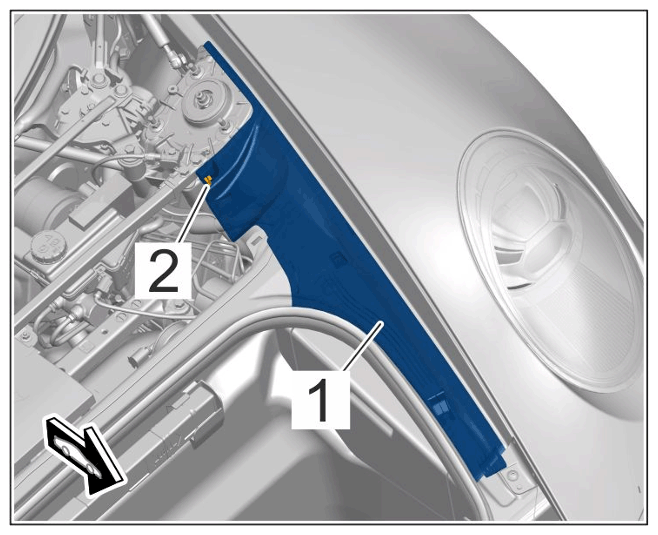

Clip in front trim panel -1- on both sides of the strut -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for front trim panel on strut
