Component Overview
WARNING: This page is about a different variant/trim than selected.

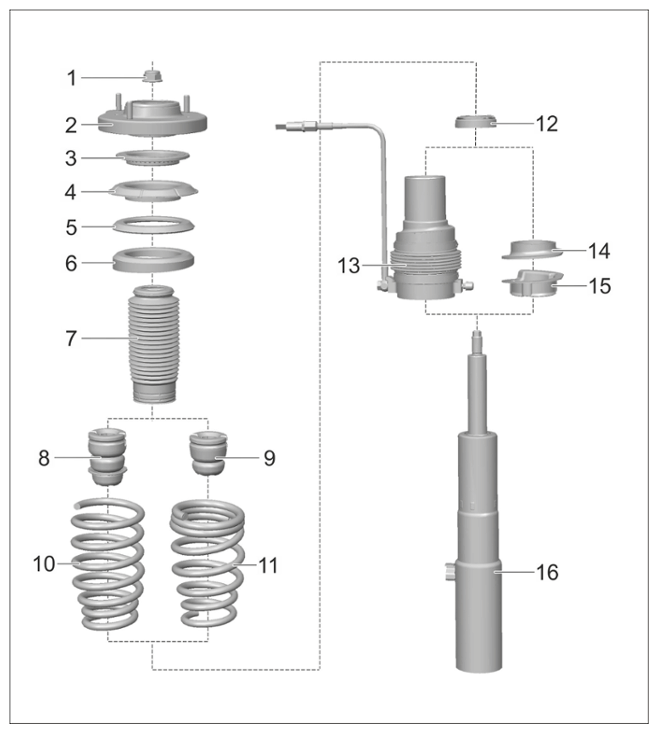

Component overview of front spring strut
| 1 | Hexagon nut, M14 x 1.5 (always replace following removal) |
| 2 | Support bearing |
| 3 | Sliding bearing |
| 4 | Protective plate |
| 5 | Tolerance compensation shim (installation depends on the coil spring tolerance group, see information in "Assembling front spring strut") |
| 6 | Upper spring plate |
| 7 | Bellows |
| 8 | Rubber stop (vehicles with standard chassis) |
| 9 | Rubber stop (vehicles with sports chassis -10 mm) |
| 10 | Coil spring (vehicles with standard chassis) |
| 11 | Coil spring (vehicles with sports chassis -10 mm) |
| 12 | Stop cap (must be replaced) |
| 13 | Actuator for front axle lift (vehicles with front axle lift system) |
| 14 | Lower spring plate (vehicles without front axle lift system) |
| 15 | Concave washer (vehicles without front axle lift system) |
| 16 | Vibration damper |
