Disassembling Front Spring Strut

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

• Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
• If the mileage is > 30, 00 0 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

If the coil spring is replaced: Always replace coil springs in pairs only!

1. Clamp the spring strut in > VAS 6908 - stationary spring tensioning device  in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount. > Front spring strut in spring tensioning device

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

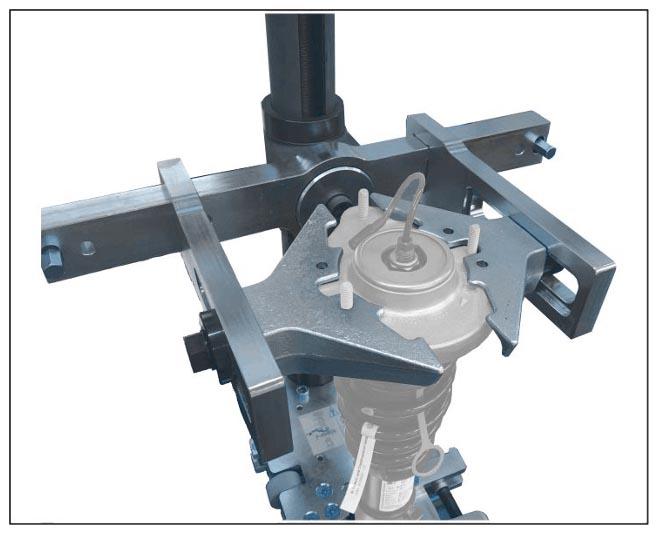

   Front spring strut in spring tensioning device

   WARNING: Preloaded or pressurized components

   • Risk of squashing or bruising

     → Do not reach into the danger area.

     → Relieve tension on components before starting work.

     → Secure components to prevent them from loosening suddenly.

2. Pre-tension the spring strut until the tension on the piston rod is relieved.
3. Loosen hex nut -1-  using a commercially available open socket-spanner insert (a/f 21 mm), for example Hazet, number 2593.

   Counter at the hexagon nut -2-  on the piston rod.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

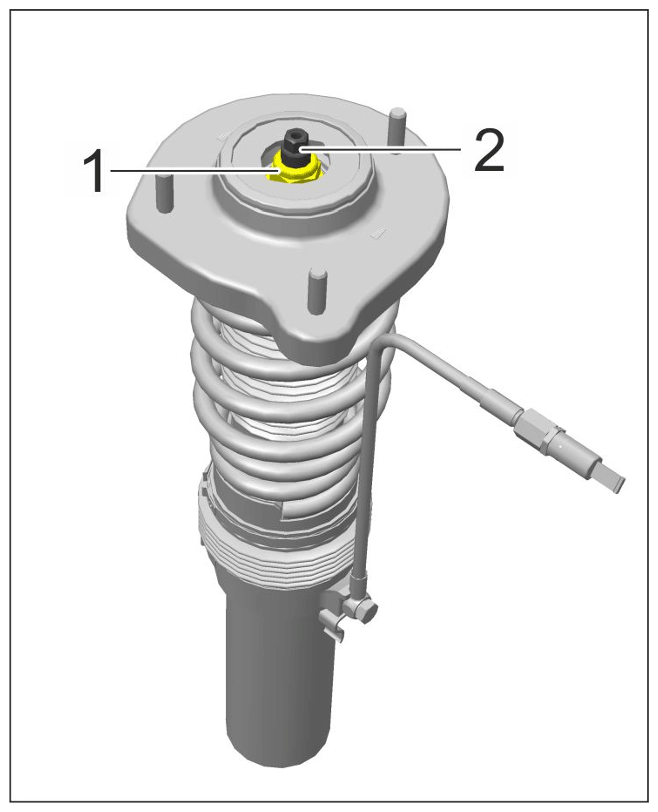

   Front spring strut

   1. 3.1  Screw off hexagon nut.
4. Relieve tension on the spring strut; there must be no tension on the coil spring.
5. Remove all components -1 to 14-  from the piston rod.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

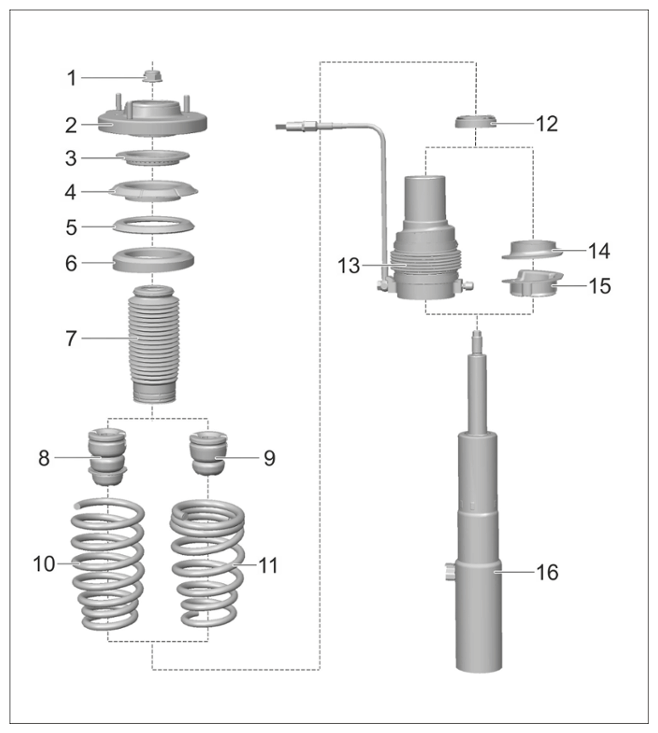

   Component overview of front spring strut

6. Only for vehicles with front axle lift system:  Remove actuator from the vibration damper.
   1. 6.1  Carefully remove stop cap -1-  using a screwdriver.

      The stop cap must be replaced.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

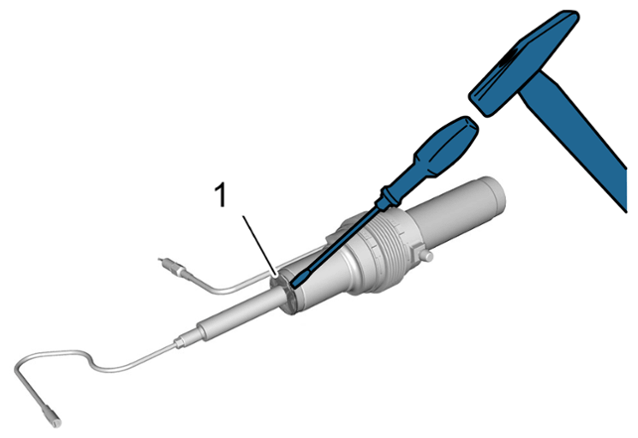

      Removing stop cap

   2. 6.2  Press the actuator off the vibration damper as shown > Pressing off actuator (shown as an example).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

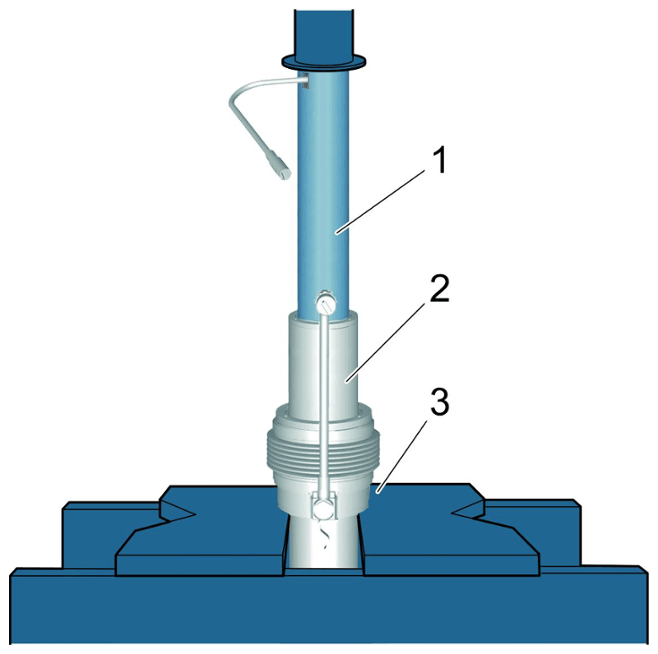

      Pressing off actuator (shown as an example)

      1	> 9263 - Assembly sleeve
      2	Actuator
      3	Pressure plates (workshop press)
