Assembling Front Spring Strut

WARNING: This page is about a different variant/trim than selected.

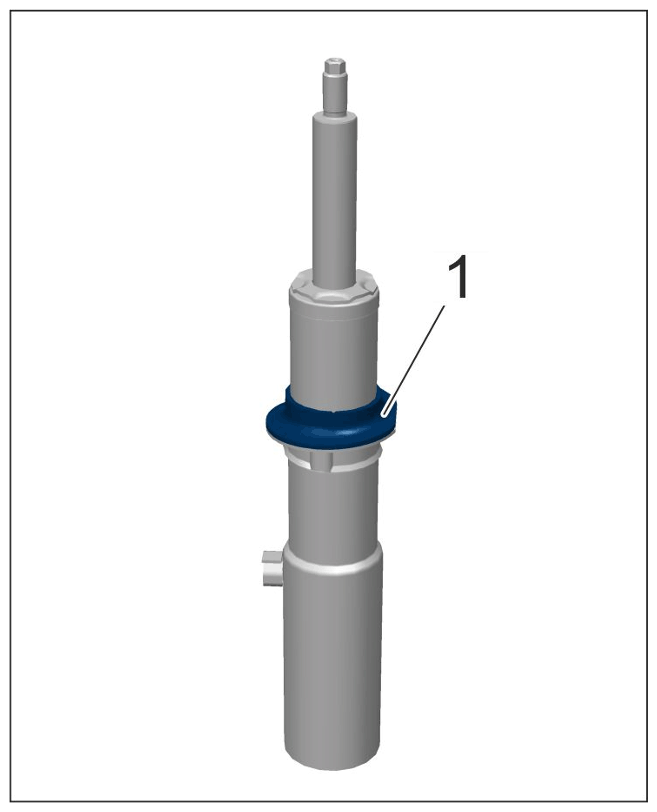

For vehicles without front axle lift system: Fit lower spring plate -1- on vibration damper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring plate, lower

Information

Always pay particular attention to the following when pressing on the actuator:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

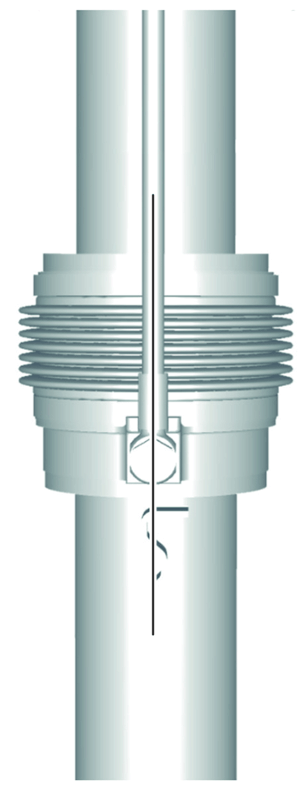

Position of actuator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

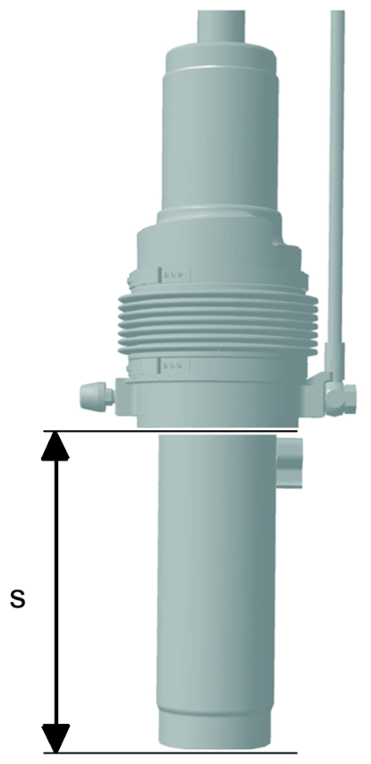

Control dimension front lower edge of vibration damper to lower edge of actuator
- Lower spring plate must not be fitted!
- Pressure line connection must be flush with the vibration damper position plate > Position of actuator.
- Press on the actuator until the control dimension -s- of 148.6 mm +/- 1 mm is reached.
Information

Do not fit the stop cap at an angle!

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

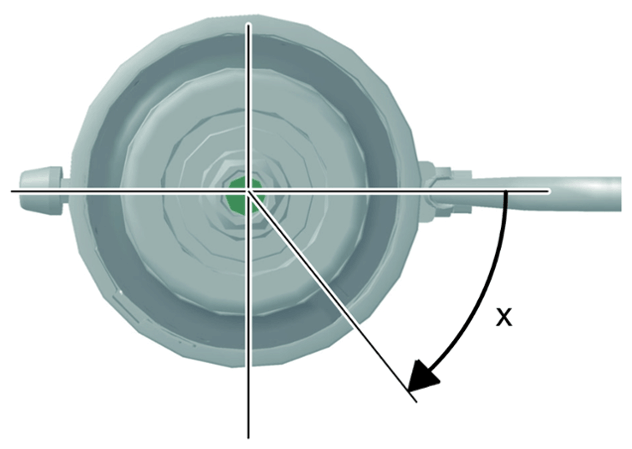

Positioning the lower spring plate
- Position lower spring plate so that the end of the coil spring is positioned clockwise at an angle -X- to the pressure line.
- Align lower spring contact bracket with the pressure line (front axle lift system) at an angle of 45°.

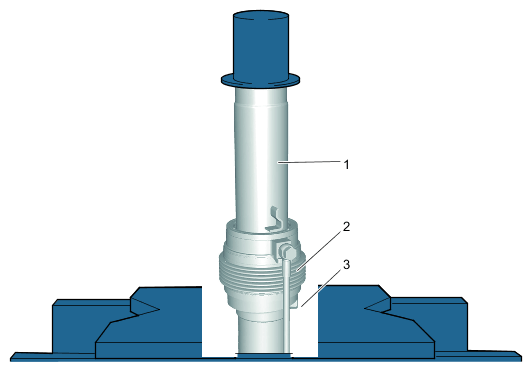

For vehicles with front axle lift system: Press actuator -2- onto the vibration damper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing on actuator

1	Vibration damper
2	Actuator
3	Pressure plates (workshop press)

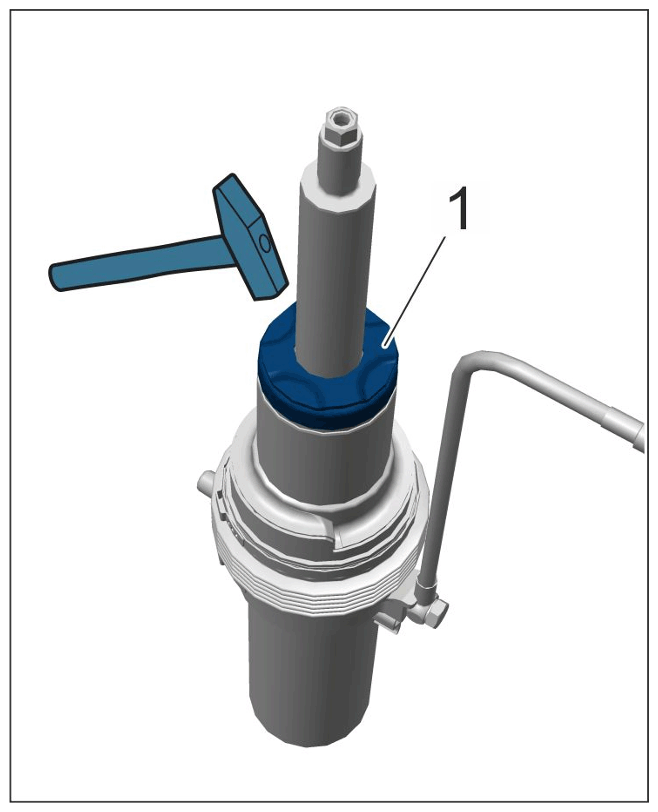

2.1 Fit new stop cap -1- on the vibration damper by tapping it on gently all the way around with a hammer (plastic hammer). See note !

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Limit-stop cap

2.2 Fit lower spring plate. See note !

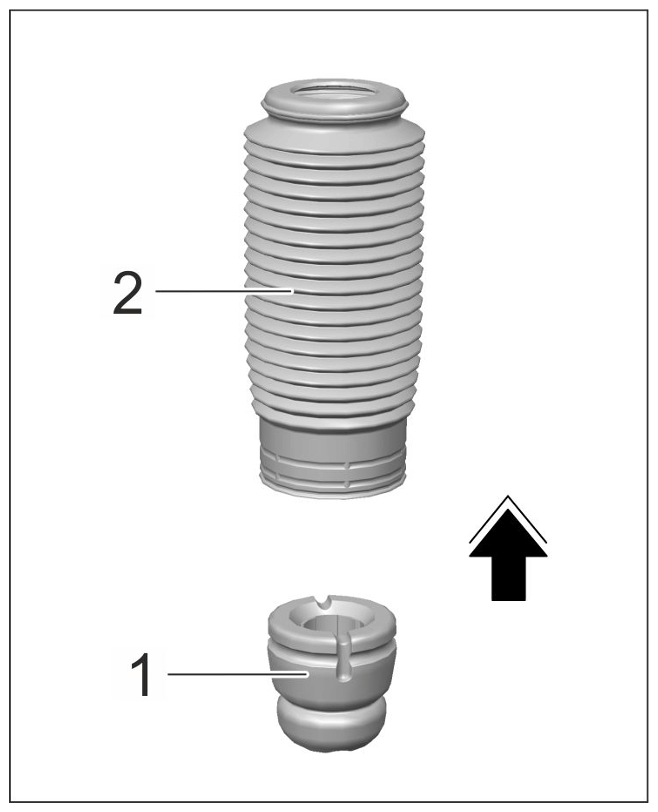

Insert rubber stop -1- as far as it will go into the bellows -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting rubber stop and bellows

Information

Explanation of the colored dots on the coil spring:

Colored dots -1- provide information about the allocation to the vehicle variant and equipment (see Porsche Spare Parts Information).
Colored dot -2- indicates the tolerance group to determine whether a tolerance compensation shim must be fitted.
Colored dot -2- yellow : no tolerance compensation shim should be installed.

NOTE: If the tolerance is borderline, a tolerance compensation shim can still be installed during production. Do not install a tolerance compensation shim when installing a replacement spring with a yellow dot!

Colored dot -2- blue : a tolerance compensation shim can be installed on the production side or not!

Only when installing a replacement spring with a blue colored dot, also install a to trance compensation shim!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

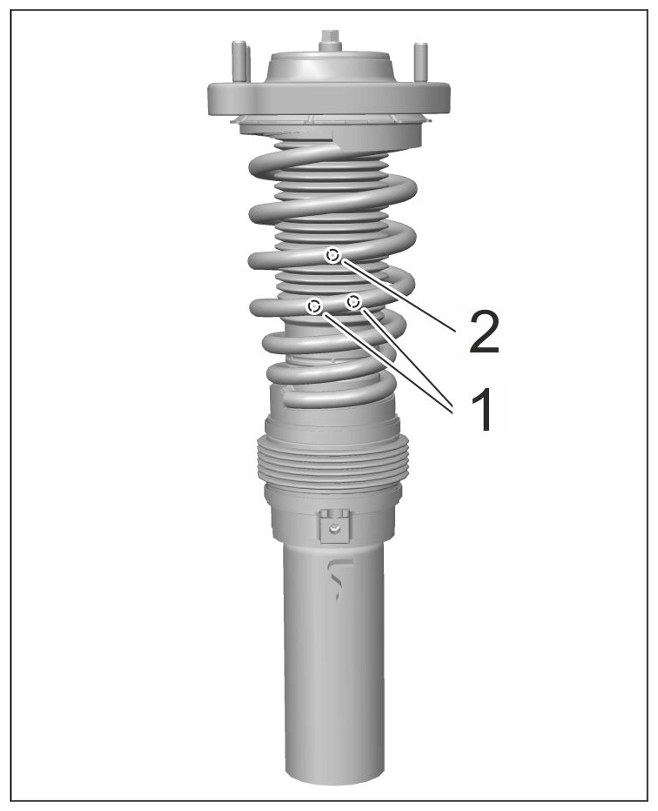

Colored dots on the coil spring

Fit all remaining components -2 to 10- on the piston rod (for instructions for installing the tolerance compensation shim -5- , see information above).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

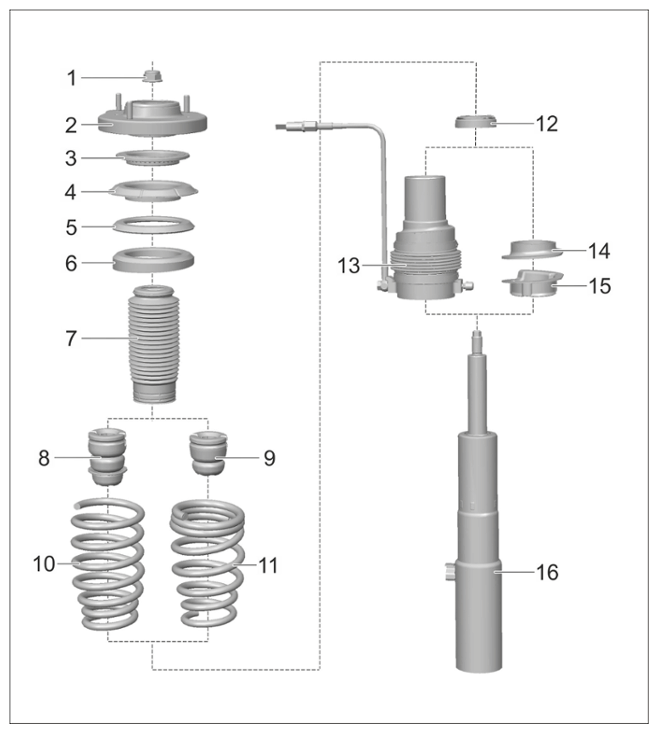

Component overview of front spring strut

Information

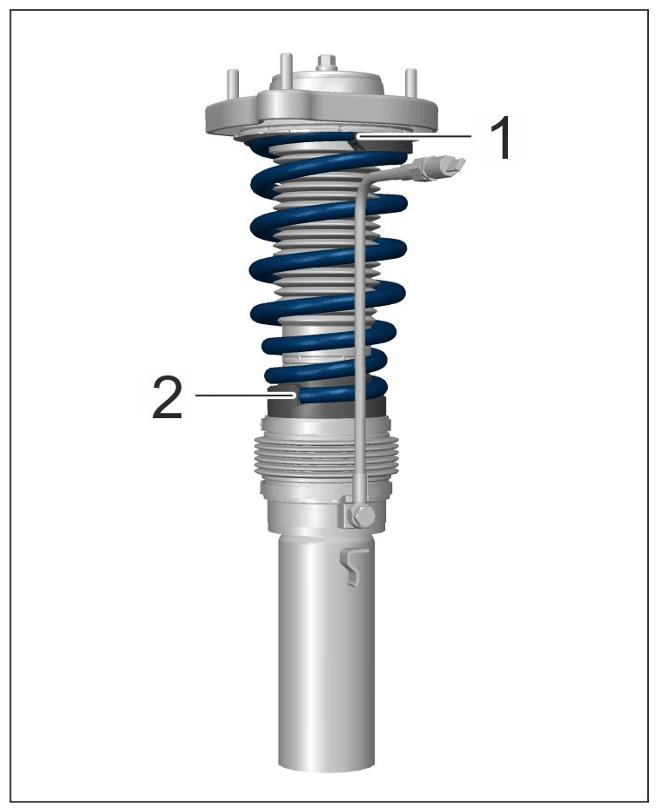

Make sure that the coil spring is positioned correctly at the upper -1- and lower spring plate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of coil spring
Clamp the spring strut in > VAS 6908 - stationary spring tensioning device in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount. > Front spring strut in spring tensioning device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

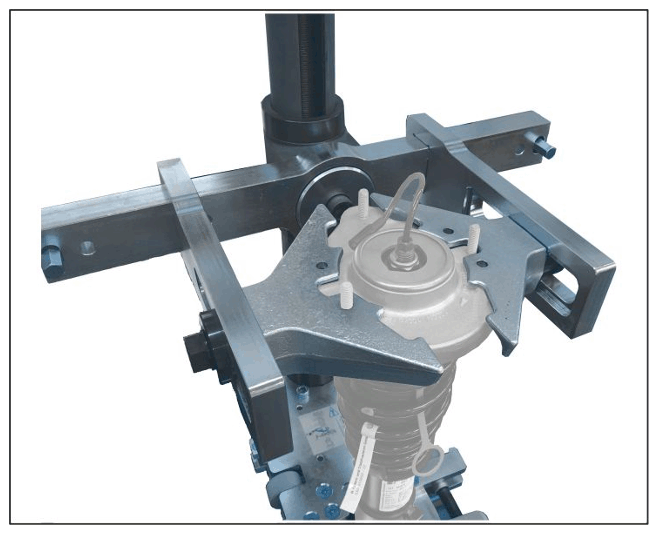

Front spring strut in spring tensioning device
WARNING:
Preloaded or pressurized components
- Risk of squashing or bruising
  → Do not reach into the danger area.

  → Relieve tension on components before starting work.

  → Secure components to prevent them from loosening suddenly.
Pre-tension the spring strut until the tension on the piston rod is relieved.

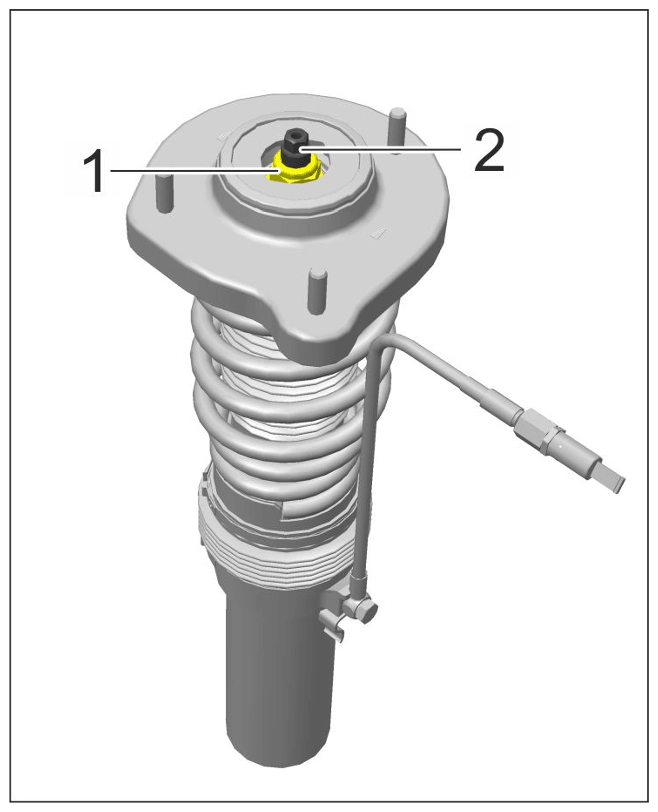

Tighten hexagon nut -1- using a commercially available open socket-wrench insert (af 21 mm) for example Hazet, number 2593.
Counter at the hexagon nut -2- on the piston rod.

> Tightening torque 70 Nm (52 ftlb.)
Seal hexagon nut -1- and projecting part of the piston rod -2- with Pfinder AP14/4 corrosion protection wax.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spring strut
Relieve tension on the spring strut; there must be no tension on the coil spring.
