Installing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.
- Fit connecting link for anti-roll bar -1-
on the wheel bearing housing.
- 1.1
Check whether the wheel bearing housing is making direct contact with the position plate -1-
of the spring strut.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

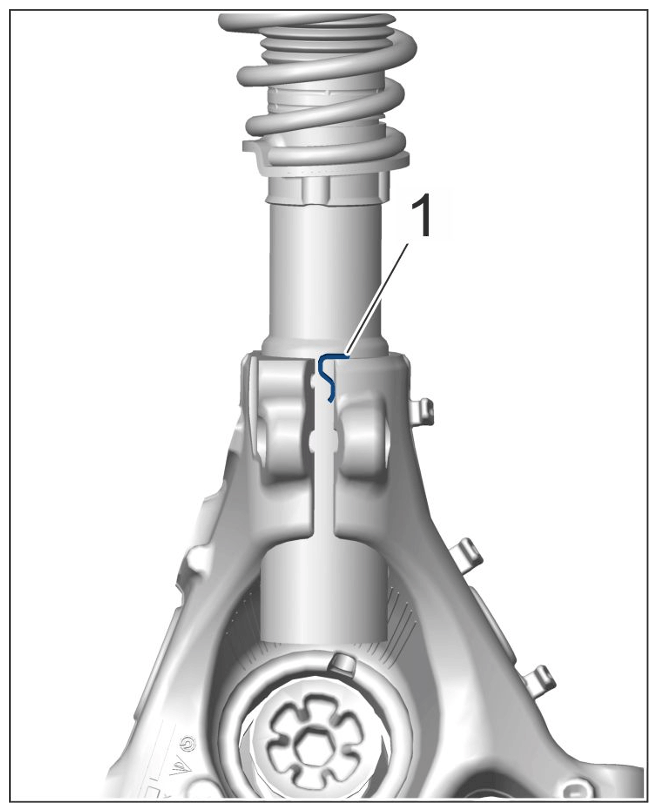

Position plate
- 1.2
Tighten nut -3-
. > Initial tightening 40 (30 Nm
> Final tightening + 180°
- Fit connecting link for anti-roll bar -1-
on the anti-roll bar.
- 2.1
Tighten nut -2-
. > Initial tightening 40 Nm (29.5 ftlb.)
> Final tightening + 30°
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

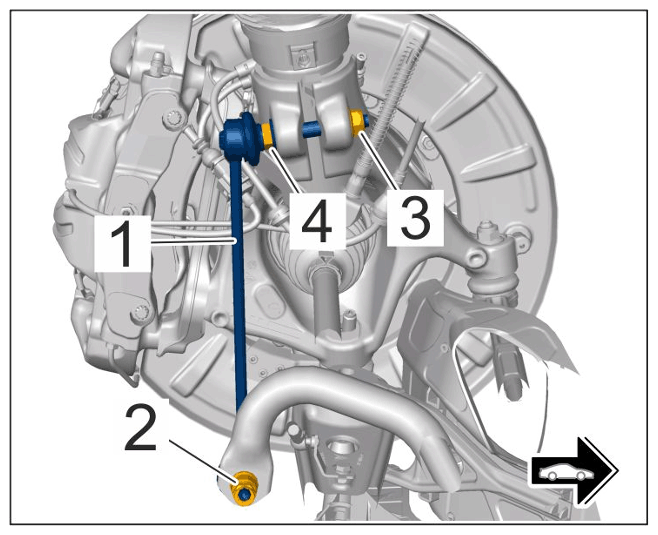

Mounting for connecting link
