Removing Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.

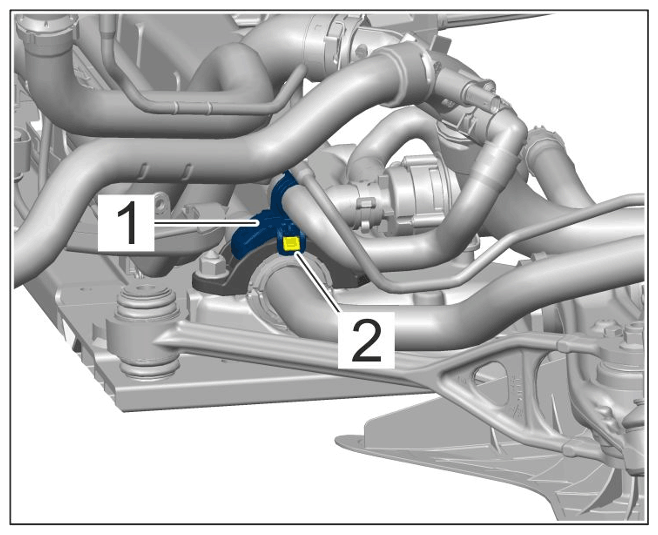

- Unclip holder for coolant lines -1-
from the anti-roll bar clamp -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant line holders

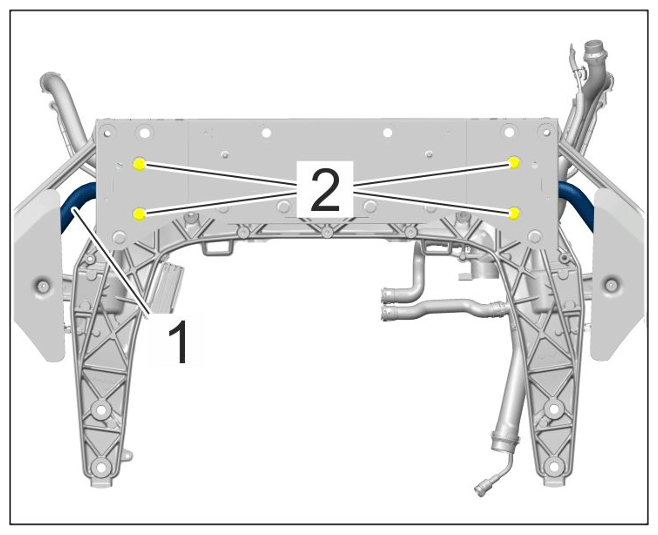

- Remove anti-roll bar -1-
from the front-axle cross member.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Securing anti-roll bar
- 2.1
Remove screws -2-
.
