Installing Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.

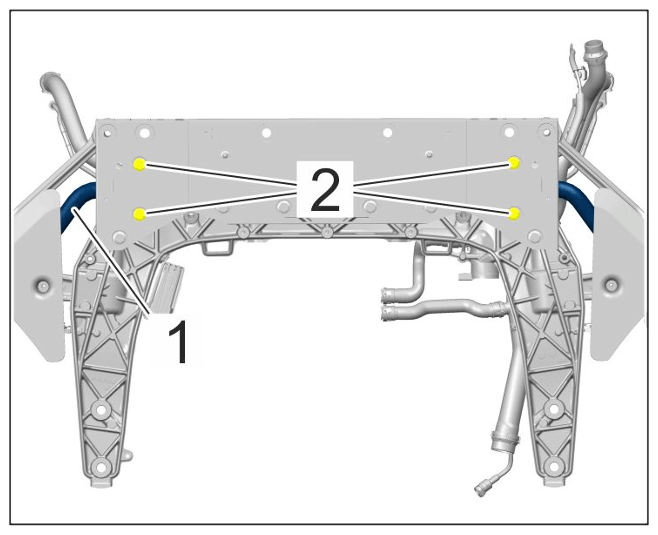

- Fit anti-roll bar -1-
on the front-axle cross member.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Securing anti-roll bar
- 1.1
Tighten threaded joints -2-
. > Tightening torque 65 Nm (48 ftlb.)

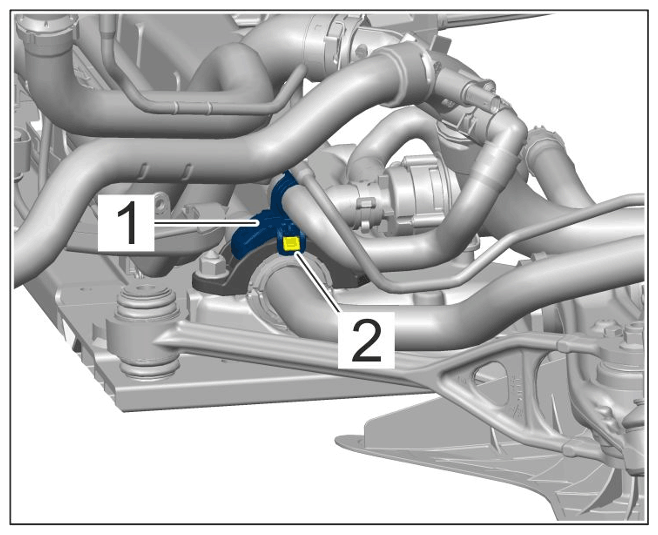

- Clip in holder for coolant lines -1-
at the anti-roll bar clamp -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant line holders
