Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Lower trailing arm to wheel bearing housing	Hexagon nut, M12 x 1.5/always replace following removal	Tightening torque	100 Nm (74 ftlb.)
Spring strut to body	Hexagon nut, M8	Tightening torque	30 Nm (22 ftlb.)
Connecting link (conventional) to wheel bearing housing (shock-absorber pipe clamp)	Hexagon nut, M12 x 1.5/always replace following removal	Initial tightening	40 (30 ftlb.) Nm
Connecting link (conventional) to wheel bearing housing (shock-absorber pipe clamp)	Hexagon nut, M12 x 1.5/always replace following removal	Final tightening	+ 180°
Spring strut to wheel bearing housing (shock-absorber pipe clamp)	Hexagon-head bolt, M12 x 1.5 x 70 and hexagon nut/always replace following removal	Initial tightening	40 Nm (30 ftlb.)
Spring strut to wheel bearing housing (shock-absorber pipe clamp)	Hexagon-head bolt, M12 x 1.5 x 70 and hexagon nut/always replace following removal	Final tightening	+ 180°
PDCC adapter to wheel bearing housing	Hexagon-head bolt, M10 x 50/always replace following removal	Initial tightening	20 Nm (15 ftlb.)
PDCC adapter to wheel bearing housing	Hexagon-head bolt, M10 x 50/always replace following removal	Final tightening	+ 60°
Axle journal to wheel hub	Item 1: Lock nut, M22 x 1.5/always replace following removal	Initial tightening	250 Nm (185 ftlb.)
Axle journal to wheel hub	Item 1: Lock nut, M22 x 1.5/always replace following removal	Final tightening	+ 60°

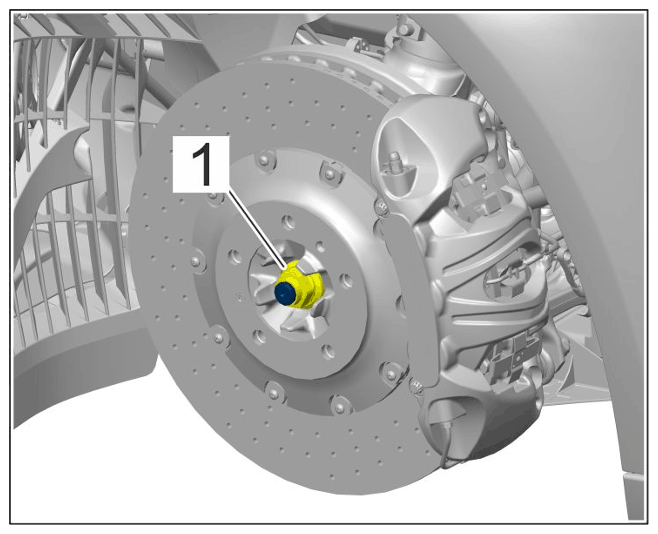

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing axle journal to wheel hub
Tie-rod end to wheel bearing housing	Hex nut M12 x 1.5/always replace after removal	Tightening torque	85 Nm (62.7 ftlb.)
Brake disc cover plate to wheel bearing housing (front)	Item 2: M6x 14/always replace screws following removal	Initial tightening	4 Nm (2.9 ftlb.)
Brake-disc cover plate to wheel bearing housing (front)	Item 2: M6 x 14/always replace screws following removal	Final tightening	+ 45 (33 ftlb.) °

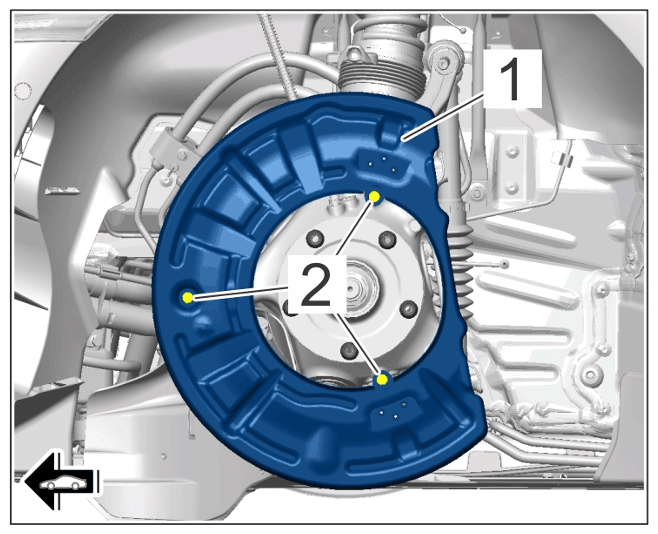

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake-disc cover plate to wheel bearing housing (front)
Line bracket to holder	item 2: Hexagon-head bolt M5 x 16	Tightening torque	4 Nm (3 ftlb.)

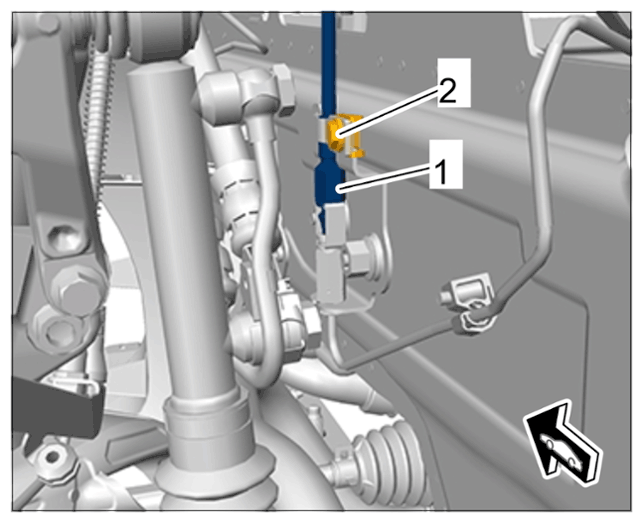

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Separating coupling for front axle lift system
Fastening screws securing front angle sensor for headlight beam adjustment to front axle	Item 1	Tightening torque	8 Nm (6 ftlb.)

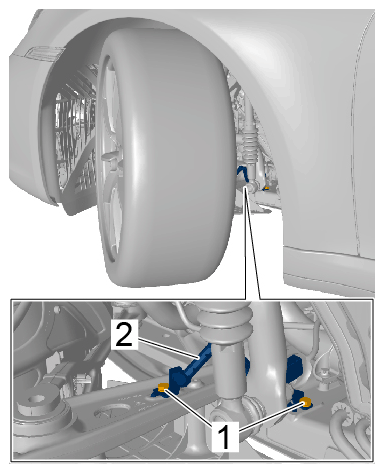

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front angle sensor for headlight beam adjustment
