Disassembling Drive Shaft - Transmission Side
Information
- The bellows on the wheel-side joint cannot be replaced.
- Only the constant-velocity joint on the transmission side, bellows and cap are available.
- The bellows with bellows holder and large clamp are one spare part.
- If the wheel side is damaged, replace the entire drive shaft.
Information
- Constant-velocity joints must be able to move slightly in an axial direction (length compensation).
Information
Always replace circlip after removal.
Component overview:

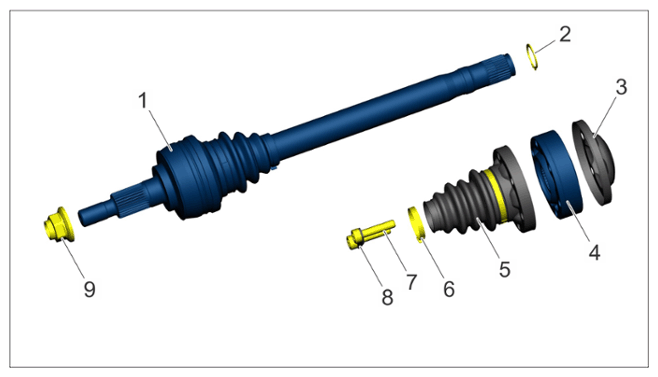

Individual rear drive shaft parts
| 1 | Profile shaft with constant-velocity joint on wheel side |
| 2 | Circlip - replace |
| 3 | Cover |
| 4 | Constant-velocity joint on transmission side |
| 5 | Bellows holder, complete |
| 6 | Small clamp - Replace |
| 7 | Screws - Replace |
| 8 | Washers - Replace |
| 9 | Lock nut - Replace |
Clean drive shaft.
- Mark drive shaft (position of bellows).

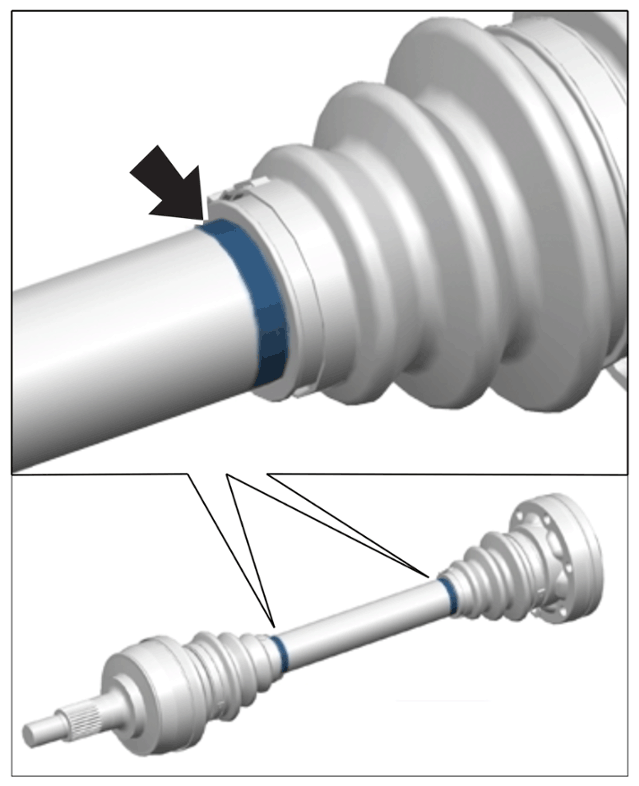

Before disassembling, mark the correct position of the inner bellows for re-installation -Arrow- .
Marking position of bellows on drive shaft

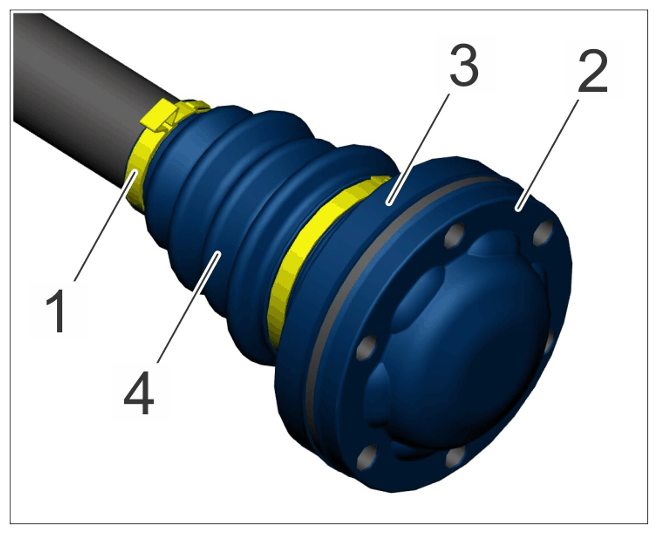

- Remove bellows -4-
with bellows holder -3-
on transmission side.
Constant-velocity joint on transmission side

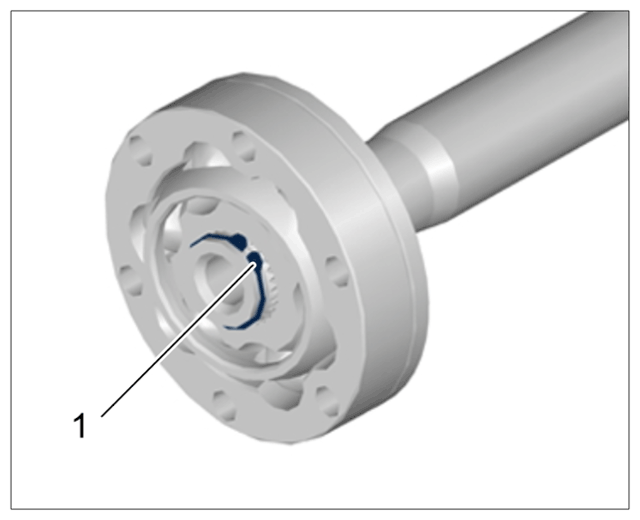

- Remove circlip -1-
using > VAS 6943 - circlip pliers
(or similar).
Removing circlip
- 4.1 Replace circlip.
- Remove old lubricant from the joint, bellows and profile shaft as far as possible.
If the constant-velocity joint is replaced, clean the profile shaft and splines carefully.

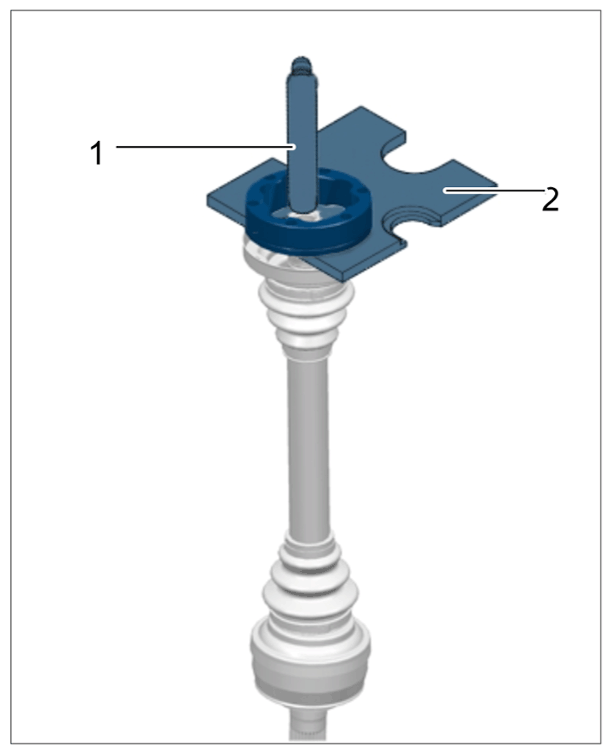

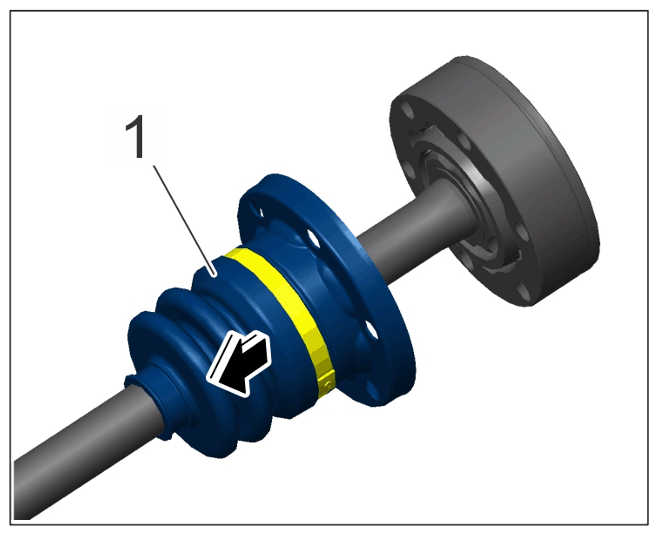

- Press off constant-velocity joint using > VW408A - press tool-1-
and > VW401 - thrust plate -2-
.
pressing off constant-velocity joint
- Push bellows and bellows holder from the profile shaft and clean the profile shaft.

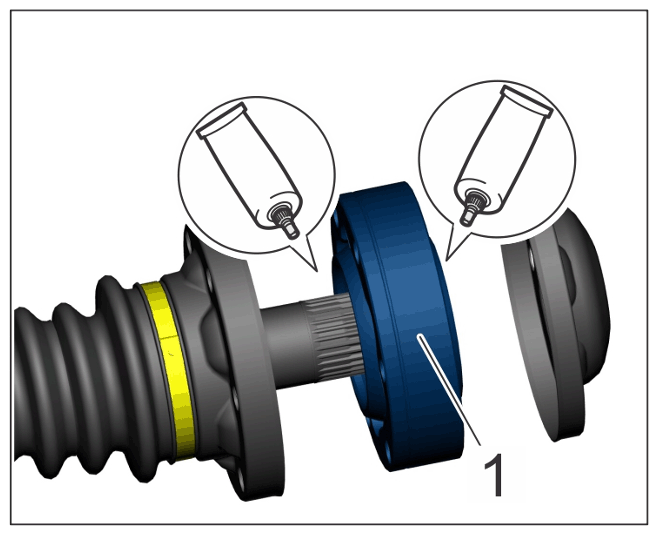

- Grease both sides of constant-velocity joint on transmission side -Symbol-
using special grease (see Parts Information).
Sealing surfaces for cap and bellows holder must be free of grease.
Greasing constant-velocity joint
- Push new (small) clamp for bellows onto the profile shaft.
- Assemble new bellows with bellows holder and constant-velocity joint.
- 10.1

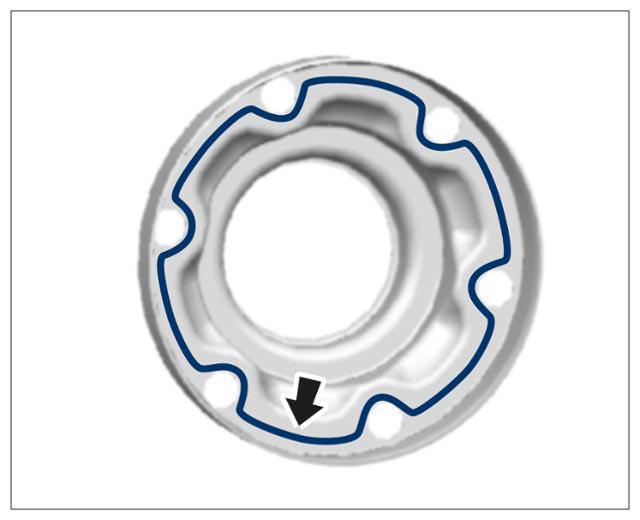

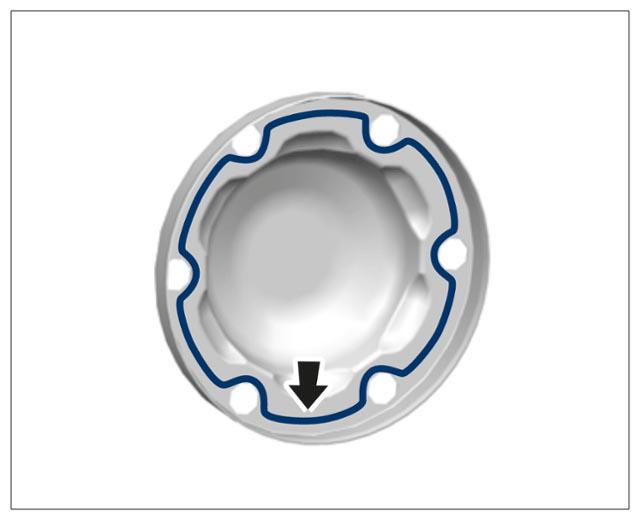

Coat sealing face of the bellows holder -Arrow-
using special sealant (see Parts Information) as shown.
Applying sealant to bellows holder on transmission side
- 10.2
Tap bellows holder evenly onto the constant-velocity joint at congruent holes (holes for the screws) using a plastic hammer (do not use force).

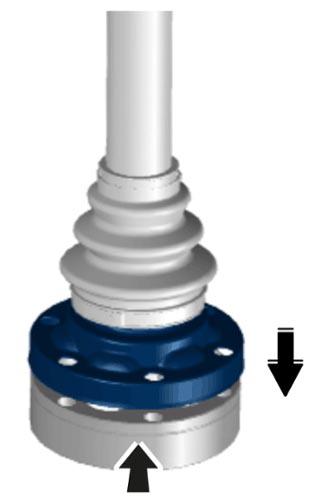

Tap on bellows holder on the side of the constant-velocity joint with the groove -bottom arrow- .
Position of bellows holder in relation to groove on constant-velocity joint
- 10.1
Coat sealing face of the bellows holder -Arrow-
using special sealant (see Parts Information) as shown.
- Assemble constant-velocity joint and bellows -1-
with the profile shaft -2-
.

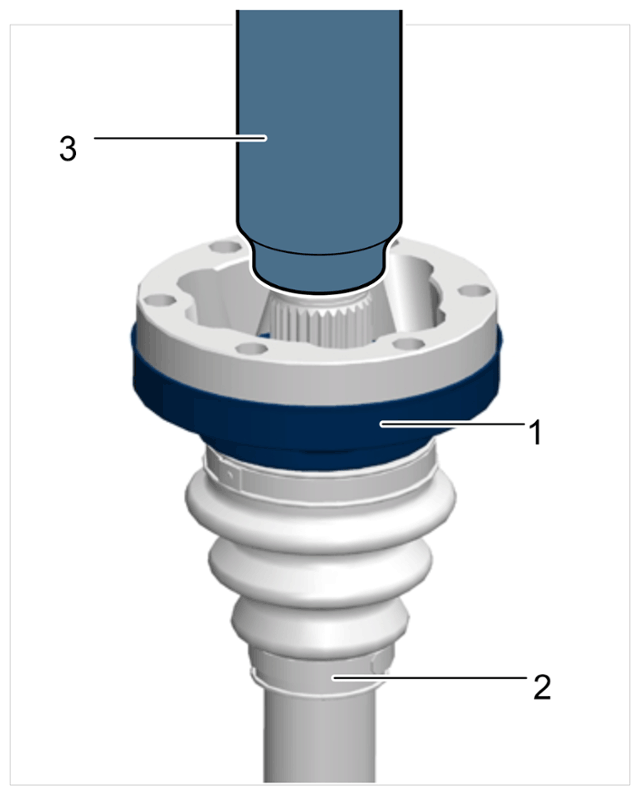

Pressing on constant-velocity joint
- 11.1 Carefully slide the bellows over the splines and into the profile shaft.
- 11.2 Tap or press the constant-velocity joint -1- using a suitable pressure piece -3- so that it fits onto the profile shaft -2- at the correct position.
- 11.3 Fit new circlip using > VAS 6943 - circlip pliers (or similar).
- Install cover on transmission side.
- Position bellows according to the marking applied previously -Arrow-
. Close new clamp using > V.A.G 1275A - hose clip pliers
or commercially available special pliers.
Marking position of bellows on drive shaft
