Removing Front Drive Shaft (Without Central Bolts)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Information

You will need a second mechanic to help you with this step.

Loosen front drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

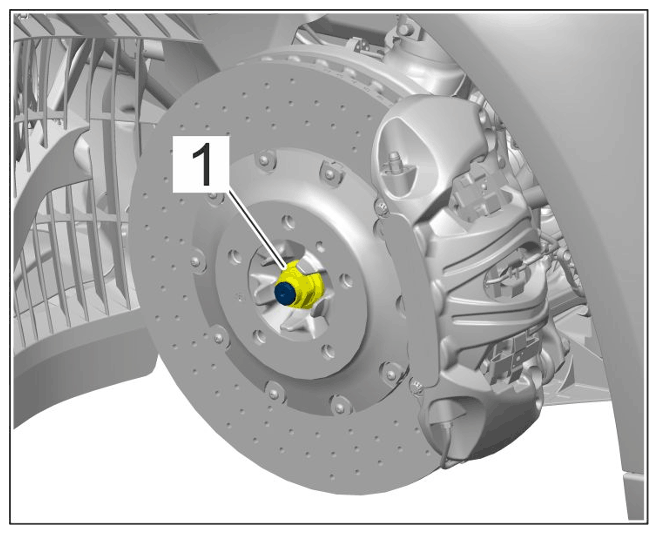

Nut securing drive shaft to wheel hub
1. 1.1 Get a second mechanic to press the brake.
2. 1.2 Unscrew nut -1- using > 9471 - socket wrench .
Remove front drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

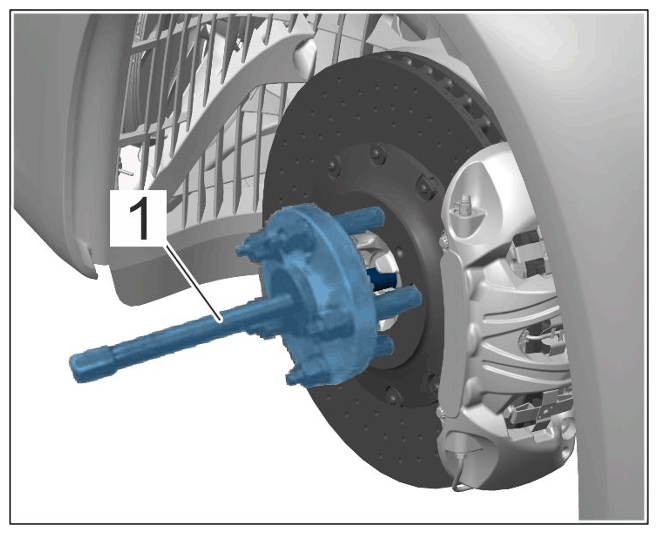

Puller set VAS 6926
1. 2.1 Secure front drive shaft using suitable aids to prevent it from falling down.
2. 2.2 Press front drive shaft out of the wheel hub using > VAS 6926 - puller set-1- .
3. 2.3 Remove front drive shaft.
Check the drive shaft and axle boots for damage, particularly at the joint on the wheel side and the profile shaft, and replace them if necessary.
