Preliminary Work

Information

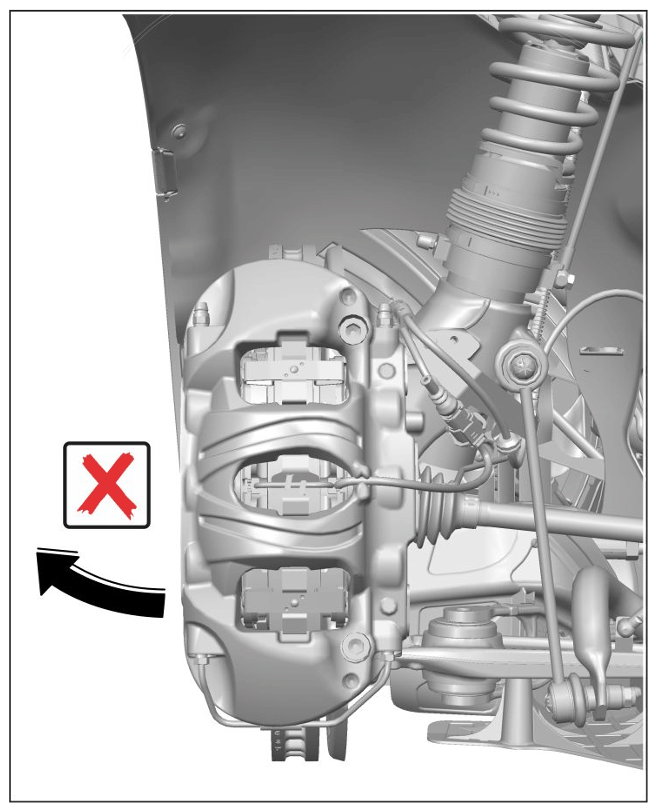

Removing the drive shaft by swivelling out the wheel bearing housing (with spring strut fitted) is not permitted because this can cause damage in the spring strut mount. > Not permitted: Swivelling out wheel bearing  housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Not permitted: Swivelling out wheel bearing housing

1. Remove all-wheel final drive.

   398819 REMOVING AND INSTALLING FOUR-WHEEL FINAL DRIVE

2. Remove front wheel.

   440519 REMOVING AND INSTALLING WHEEL

   440519 REMOVING AND INSTALLING WHEEL WITH CENTRAL BOLT

3. Only for vehicles without central bolts:

   Screw in wheel bolts by approx. 5 turns by hand.
