Removing And Installing Lower Control Arm
WARNING: This page is about a different variant/trim than selected.
- Remove cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

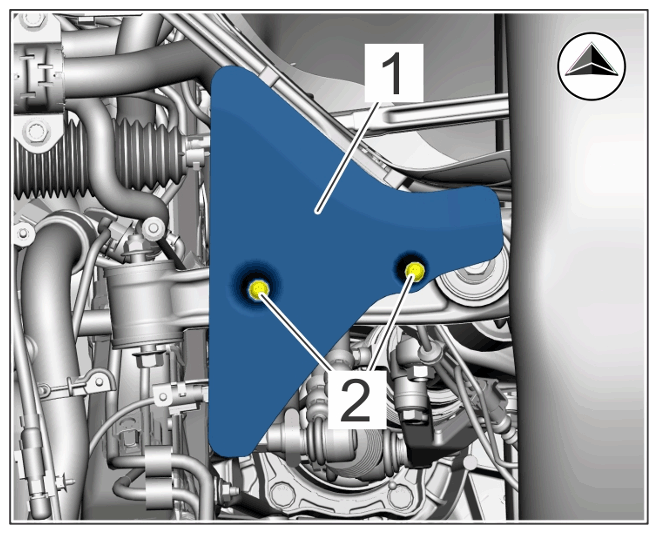

Lower front axle control arm cover
- 1.1
Remove screws -2-
and cover.
- Install cove, -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Lower front axle control arm cover
- 2.1
Fit holder -2-
with screws -2-
, tighten screws.
> Tightening torque 10 Nm (7.5 ftlb.)
