Installation Position
WARNING: This page is about a different variant/trim than selected.
When removing the front-axle cross member, always pay particular attention to the following:
- The front section -1- must not be separated from the rear section -2- when installed.
- The front-axle cross member must only be replaced as a complete component. Replacing the individual sections -1 or 2-
is not permitted.

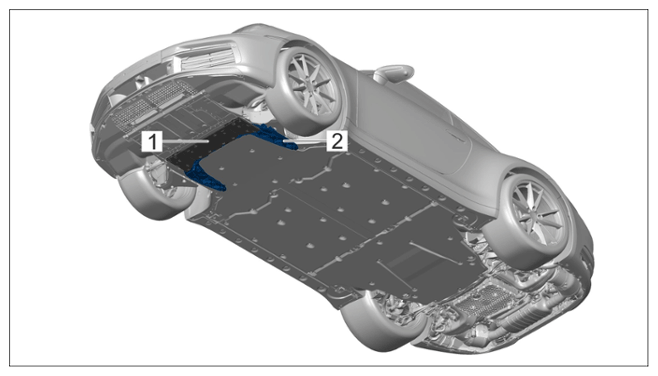

Installation position
| 1 | Front-axle cross member (front section) |
| 2 | Front-axle cross member (rear section) |
