Removing Front-Axle Support

WARNING: This page is about a different variant/trim than selected.
  1. Remove front-axle support -1-  .

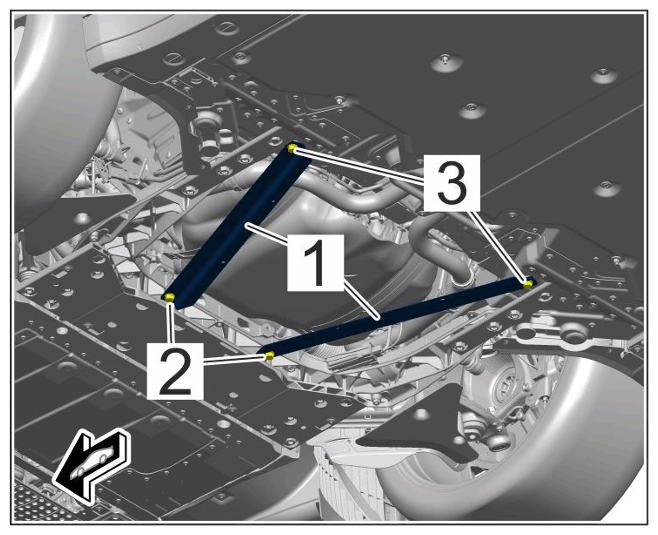

    G15520403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1. 1.1  Unscrew and remove screws -2-  .
    2. 1.2  Unscrew and remove screws -3-  .
