Installing Front-Axle Support

WARNING: This page is about a different variant/trim than selected.
  1. Install front-axle support -1-  .

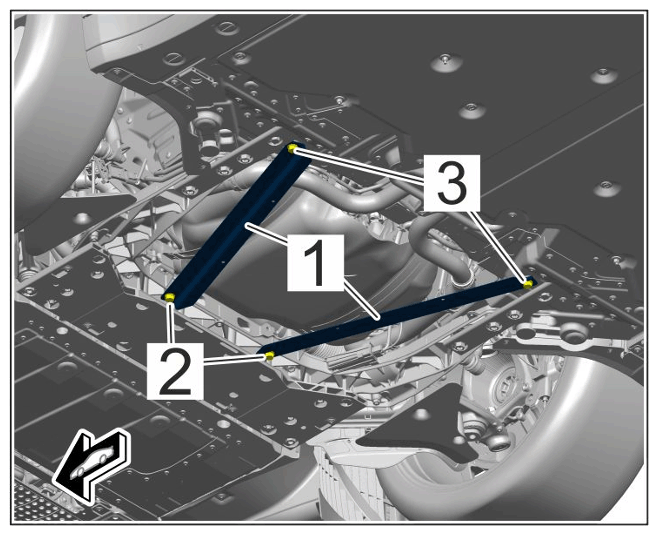

    G15520404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1. 1.1  Tighten screws -2-  . > Tightening torque 55 Nm (41 ftlb.)
    2. 1.2  Tighten screws -3-  . > Tightening torque 55 Nm (41 ftlb.)
