Installing Cover For Drive Belt

WARNING: This page is about a different variant/trim than selected.

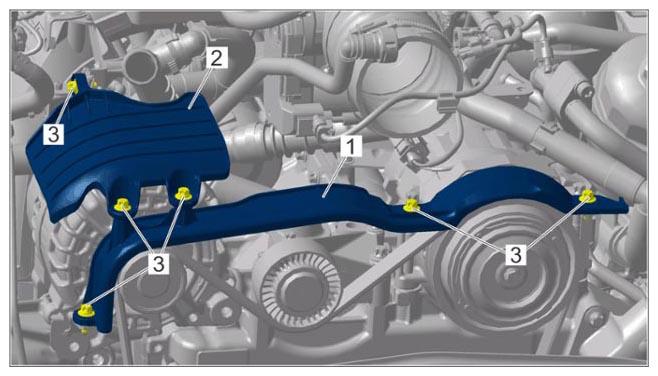

  1. Fit covers -1 and 2-  and secure with screws -3-  .

    > Tightening torque 10 Nm (7.5 ftlb.)

    G15485647Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers on drive belt and generator
