Removing TENSIONING Roller

WARNING: This page is about a different variant/trim than selected.
  1. Release drive belt.

    > 137801 CHECKING DRIVE BELT

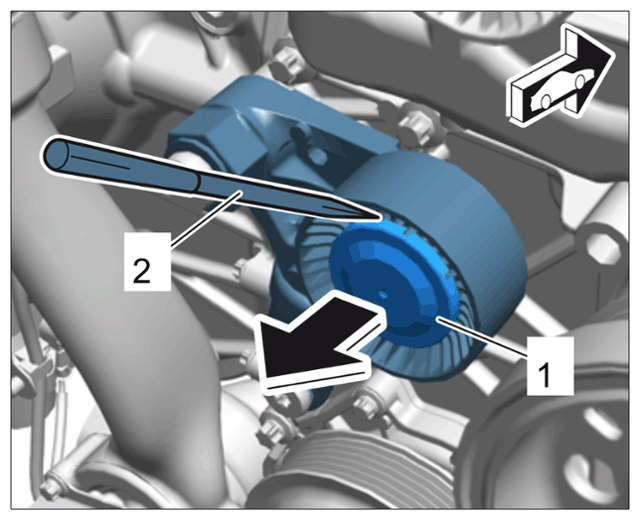

  2. Loosen protection cap -1-  using a plastic wedge -2-  and remove it -arrow-  .

    Replace protection cap if damaged.

    G15485642Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection cap on tensioning roller

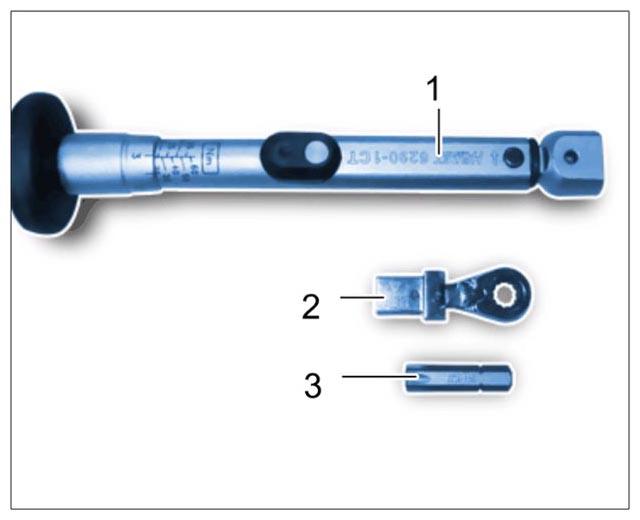

  3. The following tools are recommended for removal and installation:

    Tensioning roller tools:

    G15485643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tools for tensioning roller

    1  > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb  .
    2  Ratchet head from toolbox > 9792 - Insert for torque wrench
    3  Internal Torx but T50 with width across flats 8 mm
  4. Remove tensioning roller -2-  .

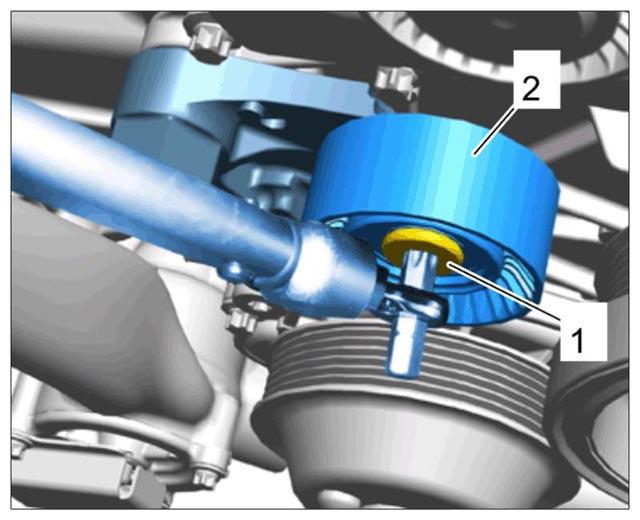

    Loosen internal Torx screw -1-  using the specified tool, unscrew screw and remove tensioning roller.

    G15485644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw for tensioning roller
