Installing TENSIONING Roller
WARNING: This page is about a different variant/trim than selected.

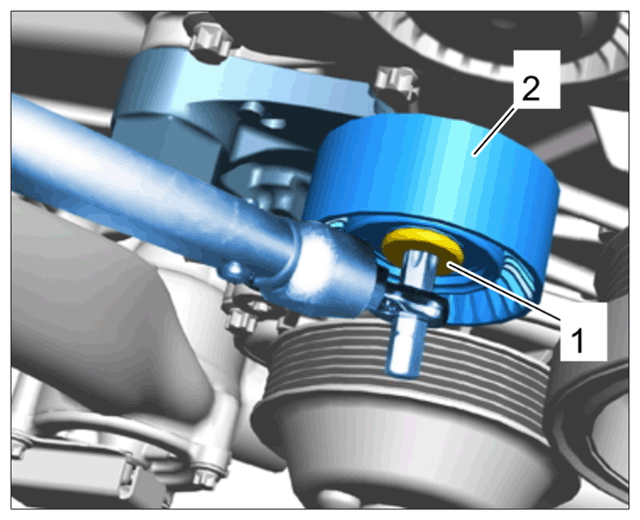

- Fit tensioning roller -2-
with screw.
Tighten screw -1-
using the specified tool.
> Tightening torque 45 Nm (33 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw for tensioning roller
- Install protection cap.
- Fit and tension the drive belt.
> 137801 CHECKING DRIVE BELT
