Replacing Drive Belt

WARNING: This page is about a different variant/trim than selected.

Tool overview for drive belt

Fig 1: Drive Belt Routing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool overview for drive belt

1	> 9952 - Ring wrench
2	> 9866/1 - Spreader
3	> 9953 - Socket-wrench insert
not shown	> V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb.

Drive belt routing (view with deflection roller instead of PDCC pump):

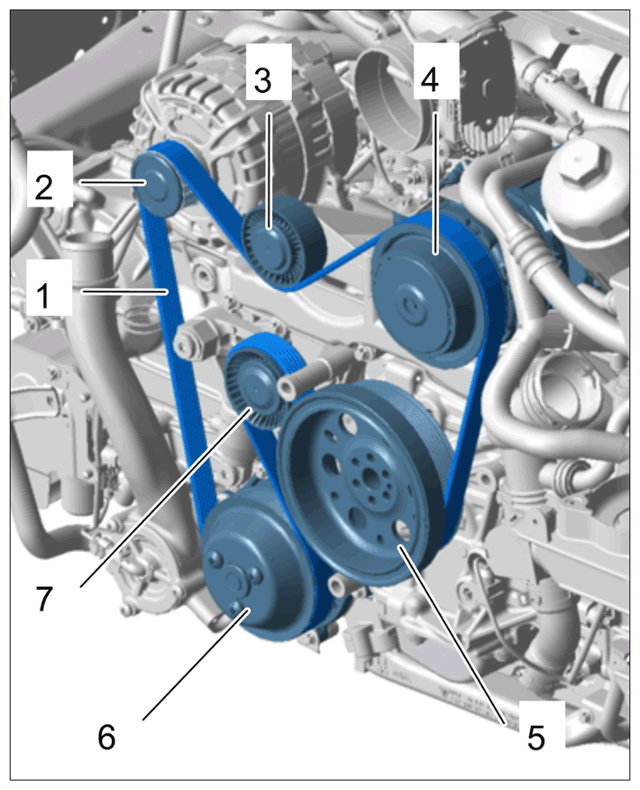

Fig 2: Drive Belt Routing Diagram (Engine Removed Without Heat Shield)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt routing (engine removed without heat shield)

1	Drive belt
2	Generator pulley
3	PDCC pump deflection roller or pulley
4	Air-conditioning compressor pulley
5	Crankshaft vibration damper
6	Coolant pump pulley
7	Tensioning roller for belt tensioner

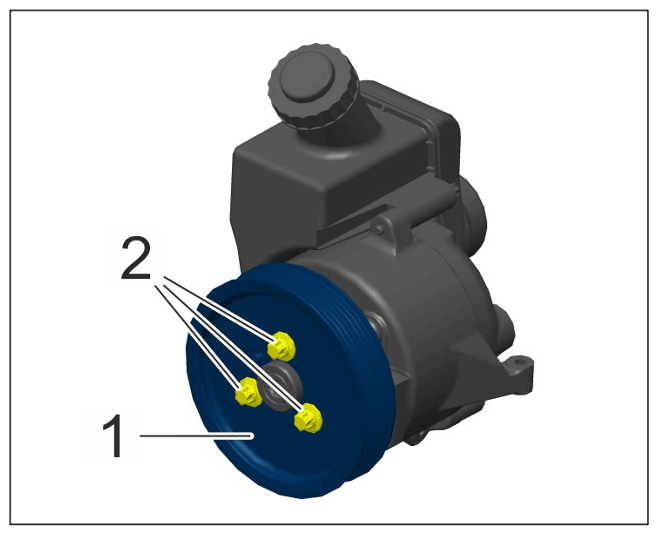

Vehicles with PDCC: Loosen screws -2- on the PDCC pump .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulley on pump
Slacken the drive belt -1- .

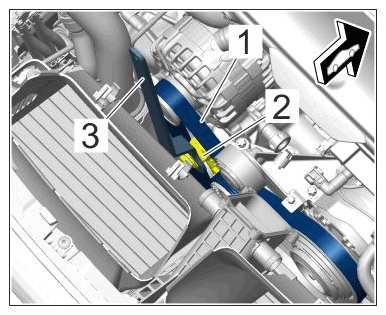

> 9952 - Ring wrench-3- must be fitted on the hexagon of the tensioner -2- . Then, turn it clockwise as far as it will go and hold it at this position.

Remove drive belt -1- from the pulley on the generator.

Carefully guide the tensioning roller back to its original position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning/slackening drive belt
The drive belt can be cut to facilitate removal.
Vehicles with PDCC: Unscrew screws -2- on the PDCC pump and remove pulley -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulley on pump
Vehicles without PDCC: Remove deflection roller.
> 137719 REMOVING AND INSTALLING DEFLECTION ROLLER

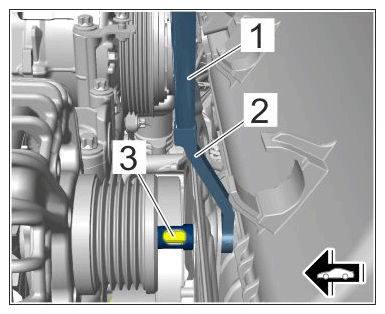

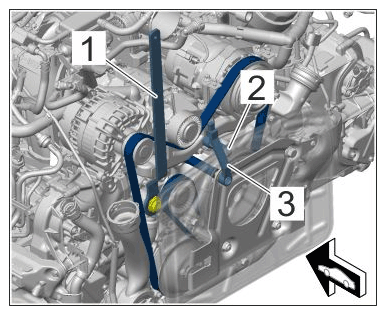

Remove screw (M10 x 115) -3- using > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb.-1- and > 9953 - socket-wrench insert-3- .
Unscrew screw fully and put it into the bore in the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for engine carrier and spacer sleeve

Remove spacer sleeve.

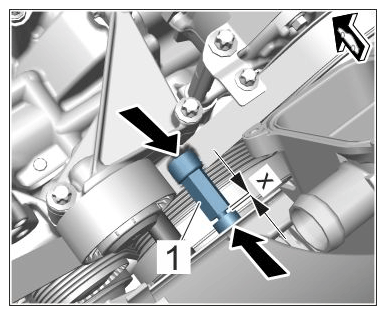

> 9866/1 - Spreader-1- must now be fitted between the engine carrier and coolant guide (unit carrier) -Arrows- . Then push the engine carrier back by 2 mm by turning the spreader clockwise at the hexagon.

Hold the spreader securely with your hand when screwing it!

Remove spacer sleeve.

Loosen the spreader by turning it anti-clockwise at the hexagon.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using special tool Spreader

1	Special tool Spreader
dimension X	Max. 2.5 mm

Information

Check for foreign objects in the grooves of the pulley.

Check pulleys for damage.

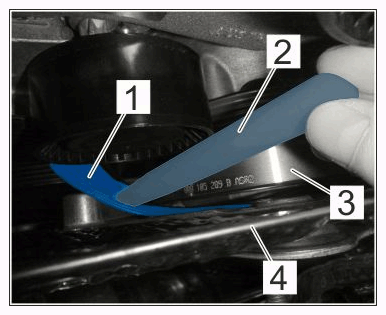

Guide new drive belt -1- using a plastic wedge -2- past the vibration damper -3- and heat shield -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt with plastic wedge

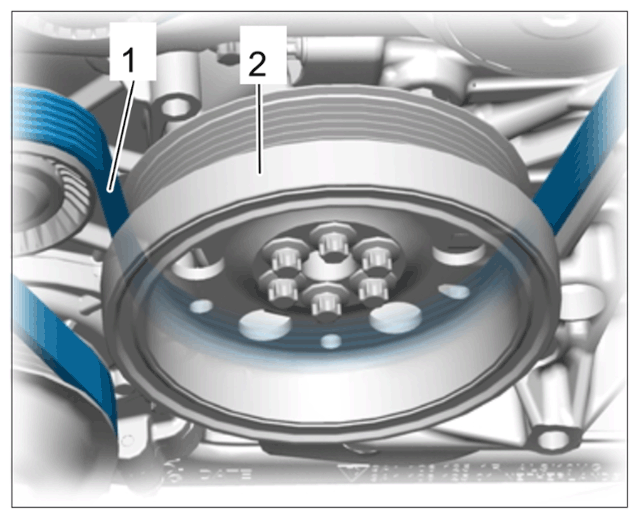

Position drive belt on the running track on the vibration damper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt on vibration damper

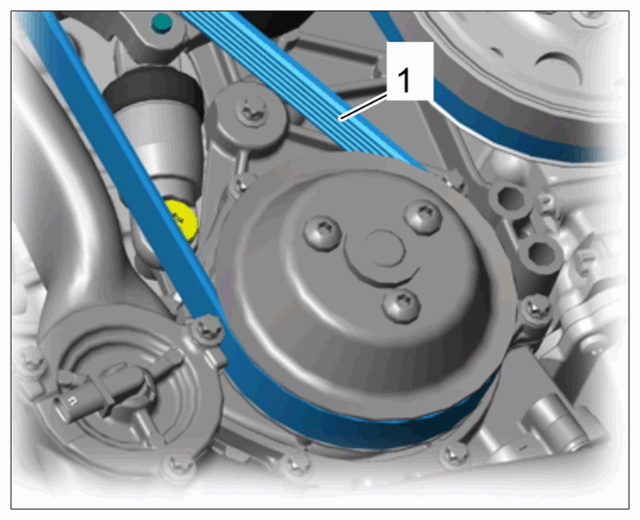

Position the drive belt -1- on the coolant pump pulley.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt on coolant pump
Vehicles with PDCC: Fit PDCC pump pulley -1- and fit screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulley on pump
Vehicles without PDCC: Install deflection roller.
> Tightening torque 45 Nm (33 ftlb.)

> 137719 REMOVING AND INSTALLING DEFLECTION ROLLER

Fit the drive belt on the pulleys for the air-conditioning compressor -4- , PDCC pump or deflection roller -3- and generator -2- .

Then, pre-position it on the tensioning roller -7- .

Drive belt routing (view with deflection roller instead of PDCC pump):

Fig 3: Drive Belt Routing Diagram (Engine Removed Without Heat Shield)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt routing (engine removed without heat shield)

1	Drive belt
2	Generator pulley
3	PDCC pump/deflection roller pulley
4	Air-conditioning compressor pulley
5	Crankshaft vibration damper
6	Coolant pump pulley
7	Tensioning roller for belt tensioner

Tension the drive belt -1- .
> 9952 - Ring wrench-3- must be fitted on the hexagon of the tensioner -2- . Then, turn it clockwise as far as it will go and hold it at this position.

Fit drive belt -1- .

Carefully guide the tensioning roller back to its original position.

Check that the drive belt is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning/slackening drive belt

Install spacer sleeve.

Hold the spreader securely with your hand when screwing it!

Fit spacer sleeve.

Loosen the spreader by turning it anti-clockwise at the hexagon and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using special tool Spreader

1	Special tool Spreader
dimension X	Max. 2.5 mm

Fit screw (M10 x 115) -3- and tighten using > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb.-1- and > 9953 - socket-wrench insert-3- .
Observe different tightening torque for using the special tool!

> Tightening torque 53 Nm (39.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for engine carrier and spacer sleeve
Vehicles with PDCC: Tighten screws -2- .
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulley on pump
