Checking Drive Belt
WARNING: This page is about a different variant/trim than selected.
Information
- Replace the drive belt if it is even just slightly damaged (even outside of a maintenance interval).
- If the drive belt must be replaced, it can be cut to facilitate removal.

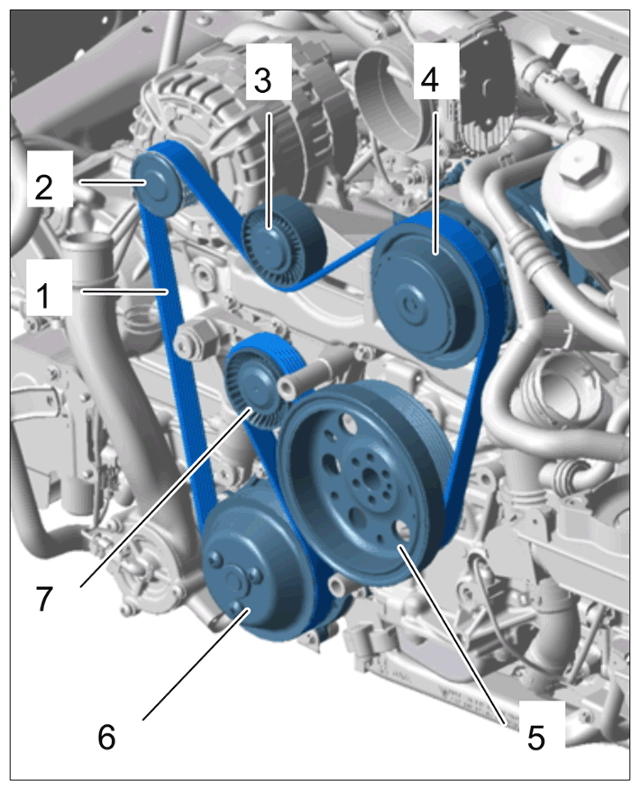

Drive belt routing (view with deflection roller instead of PDCC pump):
Drive belt routing (engine removed)
| 1 | Drive belt |
| 2 | Generator pulley |
| 3 | PDCC pump pulley/deflection roller |
| 4 | Air-conditioning compressor pulley |
| 5 | Crankshaft vibration balancer |
| 6 | Coolant pump pulley |
| 7 | Tensioning roller for belt tensioner |
Information
- Perform the test on the drive belt while it is fitted.
- Use an endoscope for testing.
- Visually check the condition of the fitted drive belt using the > VAS 6748 - Video Endoscope
and a torch. Check the belt routing on both sides as far as possible.
If you find the slightest damage, the belt must be replaced.
Information
- Check the pulley in the drive belt groove area for foreign bodies and remove them if necessary.
- Check the pulleys for damage and foreign bodies in the running grooves using > VAS 6748 - Video Endoscope
.
Replace damaged components if necessary.
