Removing Deflection Roller

WARNING: This page is about a different variant/trim than selected.
  1. Relieve the drive belt.

    > 137855 REPLACING DRIVE BELT

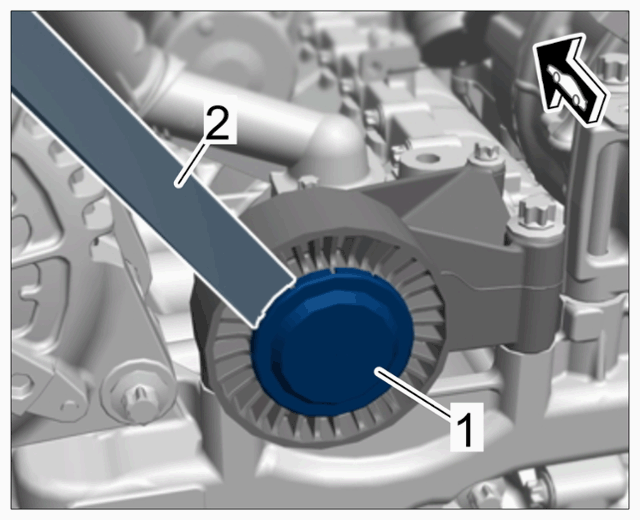

  2. Remove protection cap -1-  using a plastic wedge -2-  .
    G15485598Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection cap on deflection roller

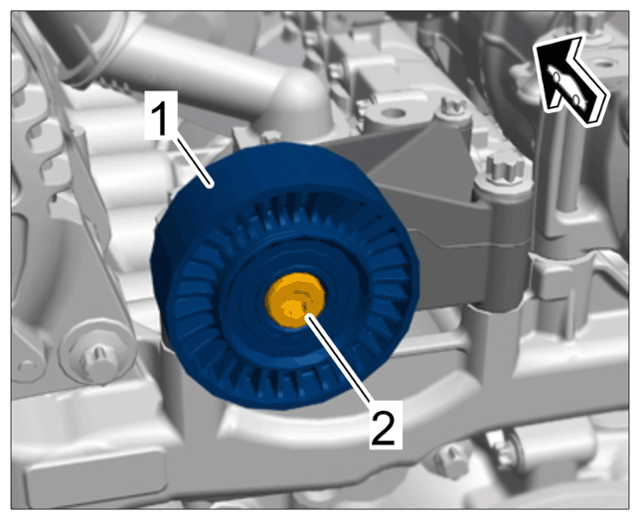

  3. Unscrew M10 screw -2-  aid remove deflection roller -1-  .
    G15485599Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deflection roller with screw

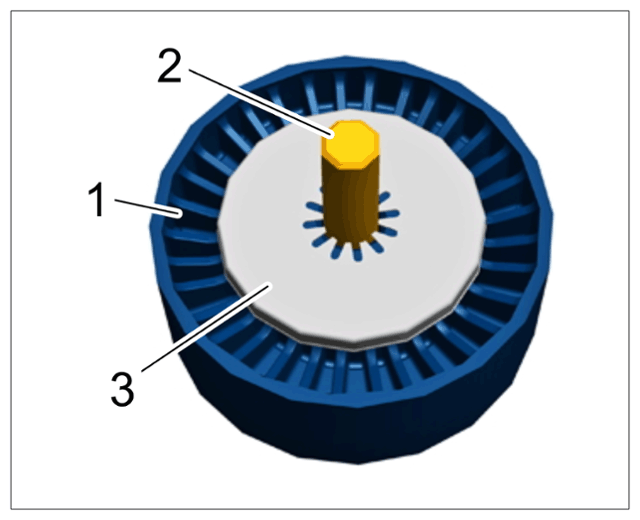

  4. Remove screw -2-  on the deflection roller -1-  . To do this, hold the lock washer -3-  securely at the back.
    G15485600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw and lock washer for deflection roller
