Removing Belt TENSIONER
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Pointed or sharp objects
- Risk of cracks, pricks or cuts
→ Wear personal protective gear.

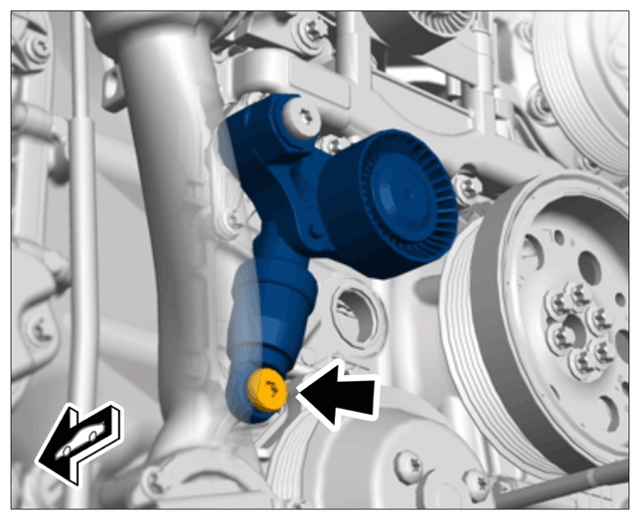

- Unscrew screw at the bottom -arrow-
of the tensioner.
Remove screw from the underside of the engine!
Belt tensioner with screws
Recommended tools for removing and installing the top screw:
- > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb.
- Internal Torx bit T50 with width across flats 13 mm from > VAS 6928 - Socket wrench set, 39-piece
- Socket-wrench insert T50 from > VAS 6947 - Ring Socket Insert, a/f 13

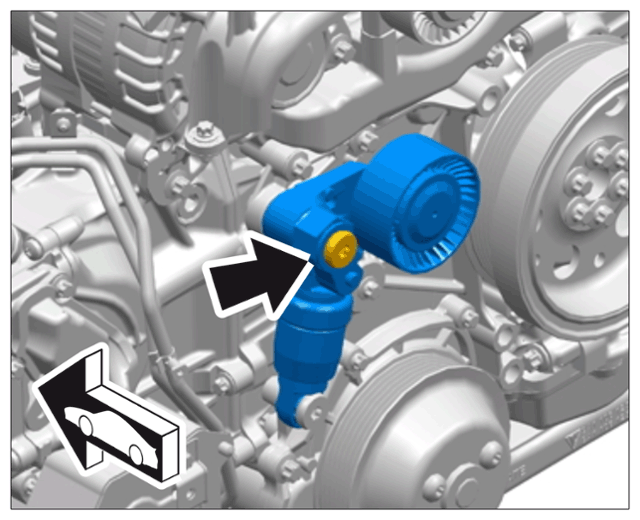

- Unscrew screw at the top -arrow-
of the tensioner.
Top screw on belt tensioner
- Remove belt tensioner.
