Removing Flywheel
WARNING: This page is about a different variant/trim than selected.
Component overview:

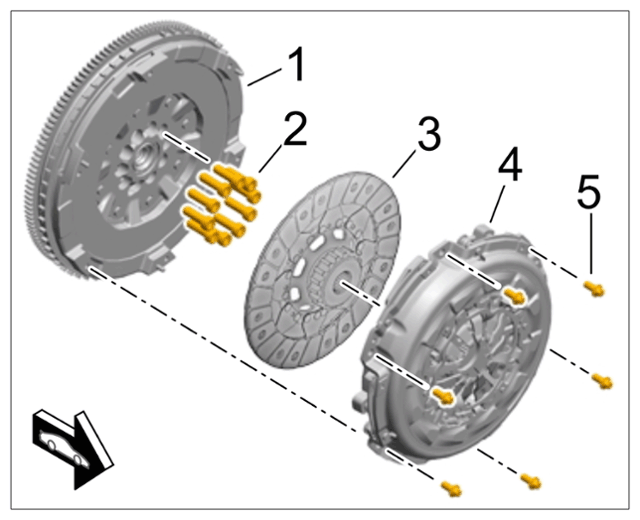

Overview of flywheel and clutch
| 1 | Dual-mass flywheel (DMF) |
| 2 | Internal serration screw, M10 x 29 (micro-self-locking) - always replace screws |
| 3 | Clutch plate |
| 4 | Clutch pressure plate |
| 5 | External Torx screw, M8 |
- > VAS 6766 - Counter-hold tool-1-
must be fitted on the engine flange.
Position counter-hold tool on the flywheel ring gear -2- .
Secure the counter-hold tool on the transmission flange using an M10 fastening screw -3- and nut -4- .

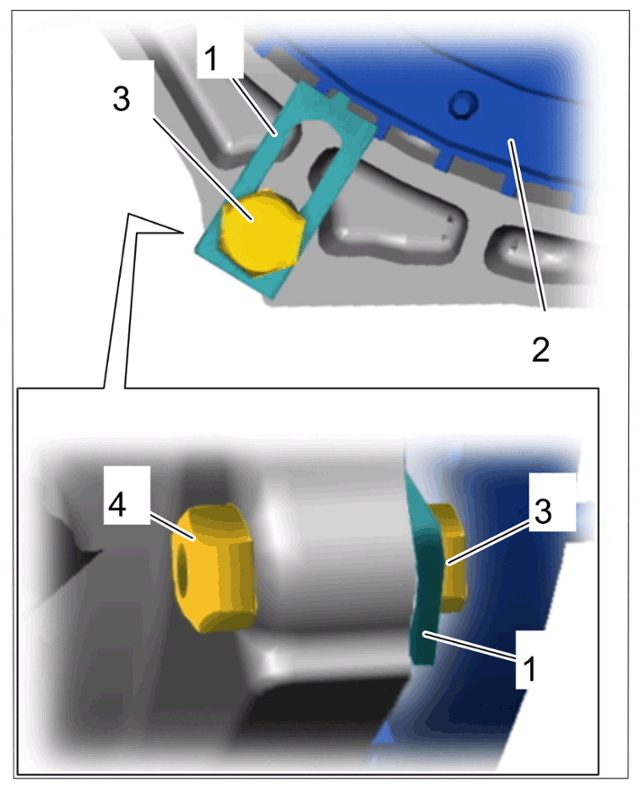

Counter-hold tool VAS 6766 on engine/transmission flange
NOTE: Removing and installing flywheel- Leaks
- Risk of damage to the flywheel and adjacent components
→ Be very careful during removal and installation.
→ See Technical Information releases about the flywheel.
- Loosen and unscrew fastening screws (internal serration, micro-self-locking, M10 x 29) on the flywheel. Carefully remove the flywheel.
Replace fastening screws.
Information
- Check the friction surface of the flywheel.
- Replace flywheel if it is damaged or discoloured.
- Visually inspect the friction surface on the flywheel.
