Removing Flywheel - Porsche Doppelkupplung (Pdk)

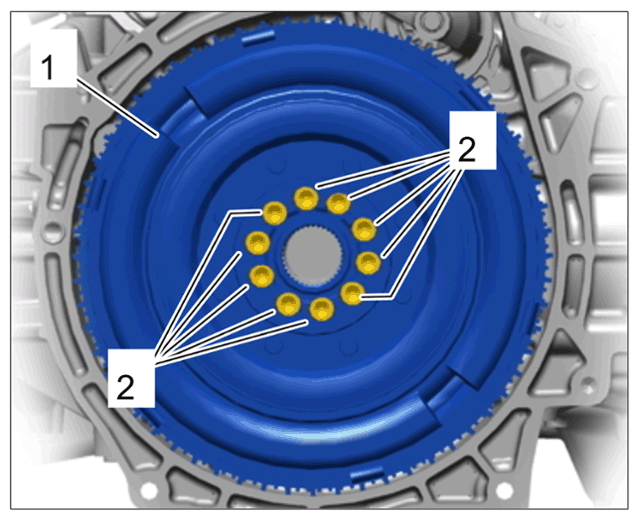

Installation position of flywheel for Porsche Doppelkupplung (PDK) -1-  with fastening screws -2-  :

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for flywheel for Porsche Doppelkupplung (PDK)

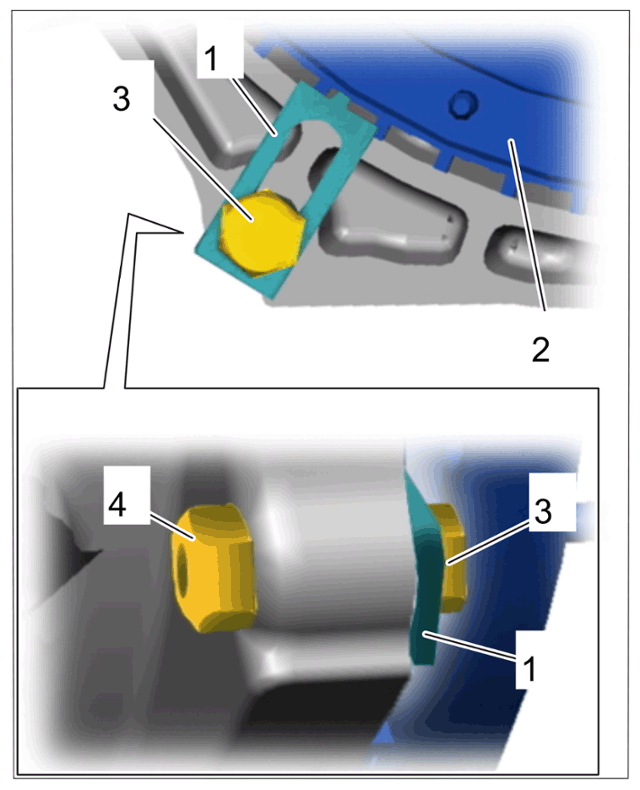

1. > VAS 6766 - Counter-hold tool-1-  must be fitted on the engine flange.

   Position counter-hold tool on the flywheel ring gear -2-  .

   Secure the counter-hold tool on the transmission flange using an M10 fastening screw -3-  and nut -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Counter-hold tool VAS 6766 on engine/transmission flange

   Information

   • Check that the through-bores on the hub of the flywheel are flush with the screw heads.
   • Screw heads can damage the flywheel when unscrewing them if the bores are not flush.
   • A damaged flywheel must not be installed!
2. Loosen and unscrew screws (multiple-tooth, a/f 12, M10 x 29) on the flywheel. Carefully remove the flywheel (it is quite heavy - so be careful).

   The screws are micro-self-locking and must be replaced!

   Remove adhesive residues from the threaded bores and clean with brake cleaner.

   Allow a drying time of at 'east 10 minutes!

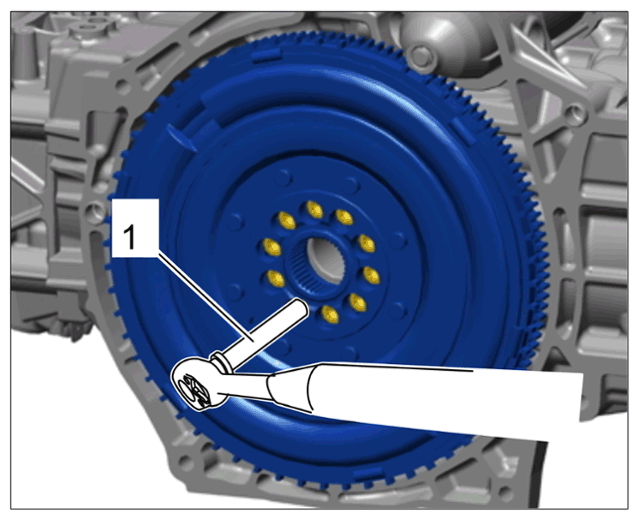

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening flywheel screws

   1	Socket-wrench insert for internal serration screws, a/f 12

   Information

   • Check the diaphragm spring on the flywheel for mechanical damage before installing it.
   • A damaged flywheel must not be installed!

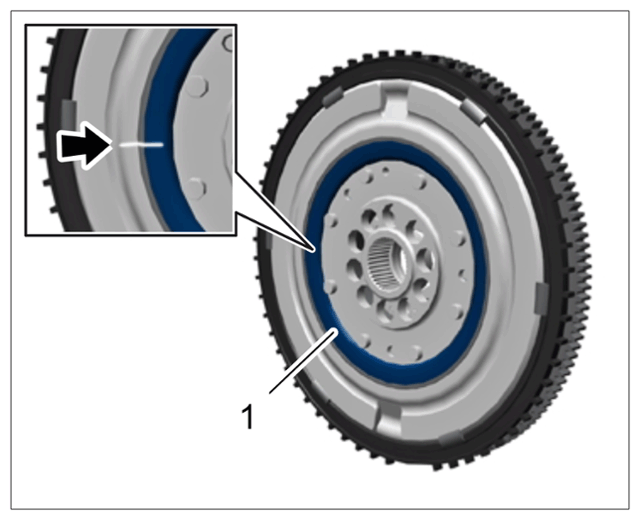

3. Check diaphragm spring -1-  on the flywheel for damage.

   There must be no dents or damage!

   The flywheel must be replaced if the diaphragm spring is damaged -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Diaphragm spring on flywheel
