Disassembling Crankshaft
WARNING: This page is about a different variant/trim than selected.
NOTE:
Dirt and contamination
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.
Components:

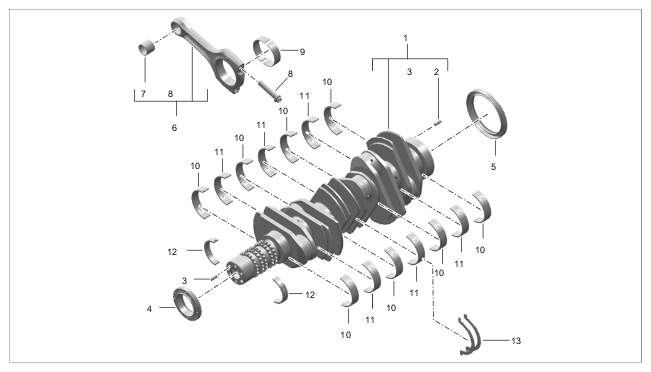

Crankshaft components
| 1 | Crankshaft |
| Dowel pin for flywheel - replace if damaged. | |
| 3 | Dowel pin for vibration damper - replace if damaged. |
| 4 | Crankshaft sealing ring on belt side |
| 5 | Crankshaft sealing ring on flywheel side |
| 6 | Connecting rod |
| 7 | Connecting rod bush |
| 8 | Connecting rod bolt - replace |
| 9 | Connecting-rod bearing |
| 10 | Main bearing - smooth bearing |
| 11 | Main bearing - partial-groove bearing |
| 12 | Supporting mount |
- Fit > P209a - retainer plate
on crankshaft flange (flywheel side) using two flywheel bolts.IMPORTANT: Fine thread.
Clamp the crankshaft -1- in a vice using > P209a - retainer plate-2- .

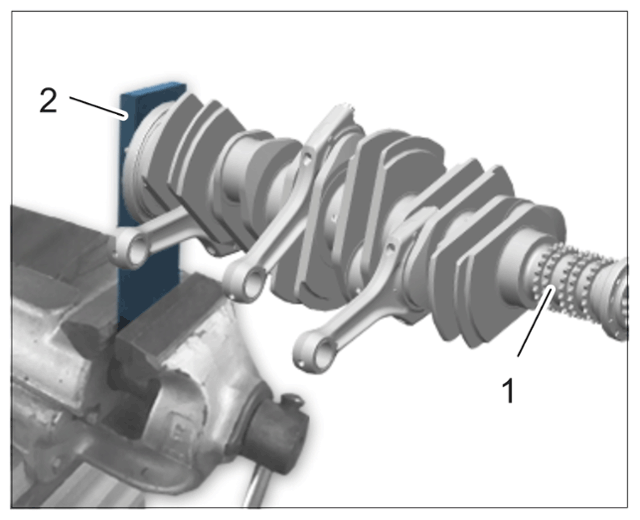

Crankshaft with P209a retainer plate
- Unscrew connecting rod bolts from connecting rod cylinders 1-3.
Remove connecting-rod bearing cap, connecting rod and bearing shells and place on a surface arranged according to cylinders.
Replace connecting rod bolts.
- Clean the crankshaft and connecting rods.
